|Type||SMD2121||Chip parameters||Red λd:(620-625nm) IV:(800-960mcd)|
|Color||1R1G1B||Chip parameters||Green λd:(520-525nm) IV:(1350-1650mcd)|
|Brand||Epister||Chip parameters||Blue λd:(470-475nm) IV:(330-400mcd)|
|Pixel Pixel||3 mm||Module Size||192 mmWX192 mmH|
|Module Resolution||64×64=4096(Dots)||Module Weight||0.36kg|
|LED Display Cabinet|
|Pixel Density||111111 Dots/m2||Frame Frequency||no less than 60 frame/sec|
|Cabinet Resolution||192×192=36864(Dots)||Input Voltage||AC110-220V±10%,50/60Hz|
|abinet Dimension(W*H*D)||576x 576 x 80mm||Output Voltage||DC-5V,40A/60A/80A|
|Module Quanty /Cabinet||9 pcs = 3 (w) x 3(h)||Grey Scale Levels||16bit|
|Cabinets Material||Die-casting Alminum Cabinet||Color Processing||R(1024)×G(1024)×B(1024)|
|Cabinet Weight||12 kg||Brightness Adjustment||256 color levels|
|Brightness||≥800 nits||MTBF( mean time between failures)||5000 hours|
|Viewing Angle||Horizontal 140°, Vertical 140°||Life-span||100,000 hours|
|Nearest Viewing Distance||3 meter||Protection Level(front/back)||IP45|
|Power Consumption (Max)||900 w/m2||Malfunction Dot Rate||less than 0.0001|
|Power Consumption (Average)||300 w/m2||Working Temperature||-30ºC~50ºC|
|Refresh Rate||≥2000Hz||Scan Mode||1/32|
|Control Mode||Synchronization/Asynchronization||Control System||Sending Card, Receiving Card,Receiving HUB|
|PC Operating System||Microsoft Windows 7, XP and Vista||Software||ED Studio Nova/Linsin|
|Communication Type||Net cable,3G,WIFI(Sold separately)||Control Card Input||DVI,USB,RJ45,HDMI(Sold separately)|

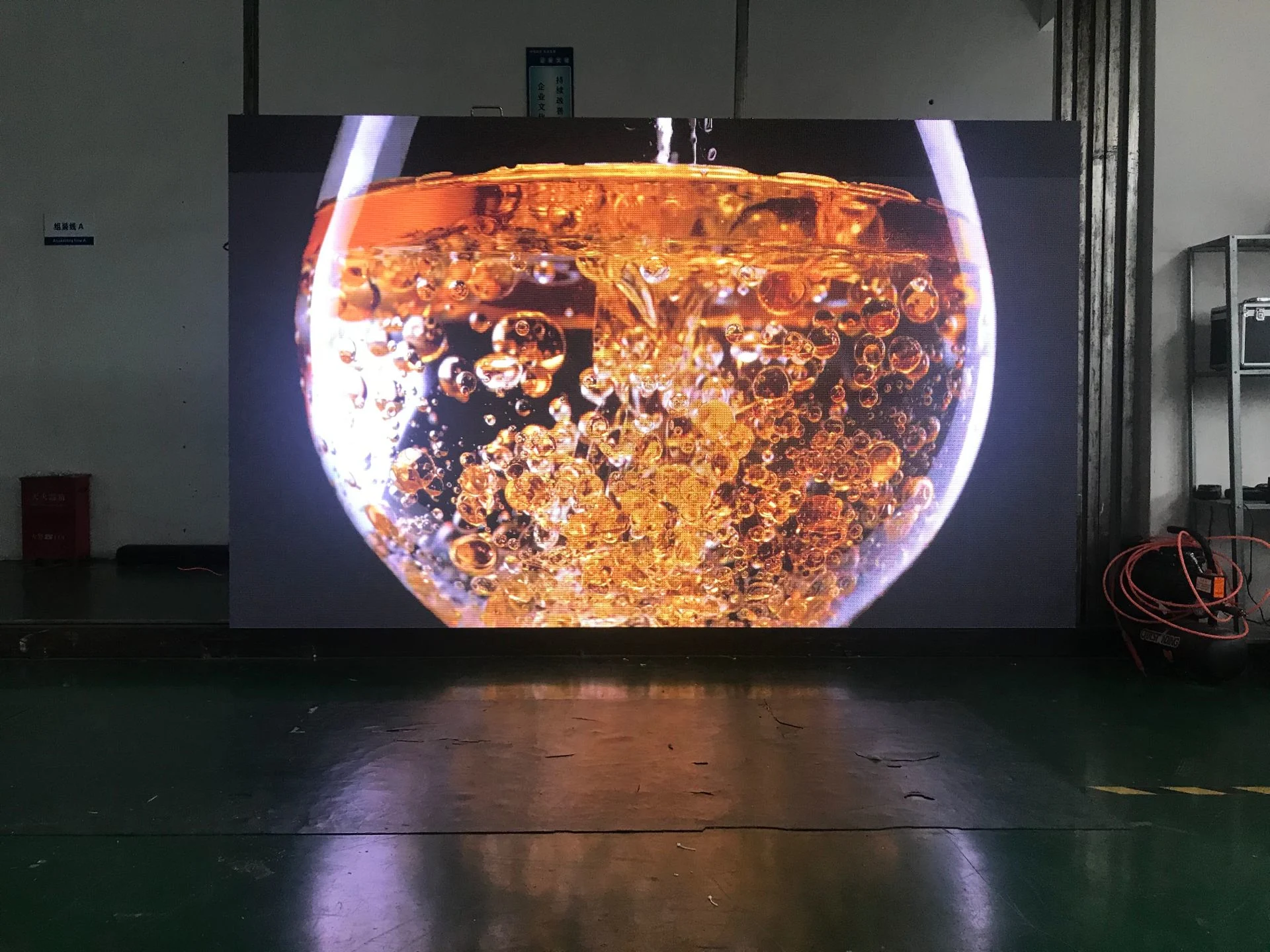

Why choose P3 Indoor LED Display Screen?
1. High and adjustable led brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting.Module:
3. Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.
4. Virtual pixel display screen can be adopted for led display panels screenss to increase the resolution up to four times of real pixel, making the images softer and vivider.
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy.P3 Indoor LED Video Wall Screen For School Application:
JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.
The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines
Packing and Shipping:
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 7-15 working days after confirm receipt payment in advance.
Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.
Q1. Can I have a sample order for led Screen?
A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.
Q2. What about the lead time?
A:About 7~10 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for led Screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display,
LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs
