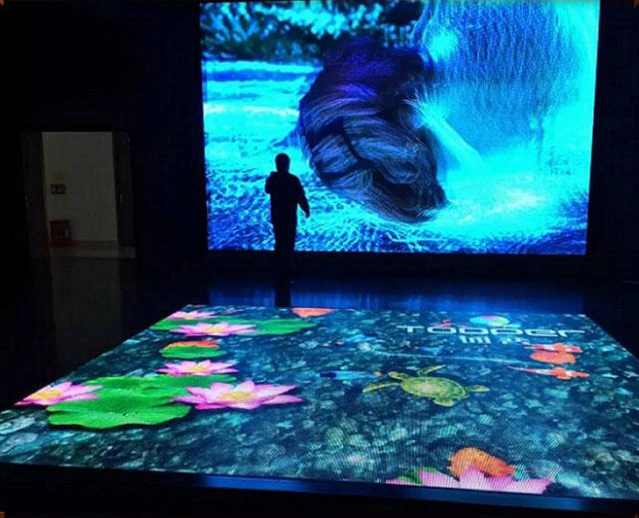

BD Series
LED Dance Floor,
Height Adjustable
Quick and Easy Installation
Ultra Wide Viewing Angle
Adapt to Multifarious Ground
IP65 Waterproof
Features:
Standard Modular Design
Standard module design :250mm x 250mm
Seamless connection
PC meterial mask with highly scratch-resistant
FHigh Bearing Capacity
Bearing capacity uo tp 1.8 tons per square meter
Height adjustable, adapt to multifarious ground
Easy and Fast Installation
Cable-less between modules
Tools free installation
Easy maintencance after cabinets assembled
Unsurpassed Color Uniformity
Interactive system with inductor built-in
Quick response within 0.02s
Specifications:
About Us:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
LED Dance Floor,
Height Adjustable
Quick and Easy Installation
Ultra Wide Viewing Angle
Adapt to Multifarious Ground
IP65 Waterproof
Features:
Standard Modular Design
Standard module design :250mm x 250mm
Seamless connection
PC meterial mask with highly scratch-resistant
FHigh Bearing Capacity
Bearing capacity uo tp 1.8 tons per square meter
Height adjustable, adapt to multifarious ground
Easy and Fast Installation
Cable-less between modules
Tools free installation
Easy maintencance after cabinets assembled
Unsurpassed Color Uniformity
Interactive system with inductor built-in
Quick response within 0.02s
Specifications:
BD-3 | BD-5 | BD-6 | BD-8 |
Physical Pitch | 3.91mm | 5.2 mm | 6.25 mm | 8.928 mm |
Pixel Configuration | SMD 1921 | SMD 1921 | SMD 2727 | SMD 3535 |
Pixel Density | 65,536 pixels/m² | 36,864 pixels/m² | 25,600 pixels/m² | 12,544 pixels/m² |
Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |

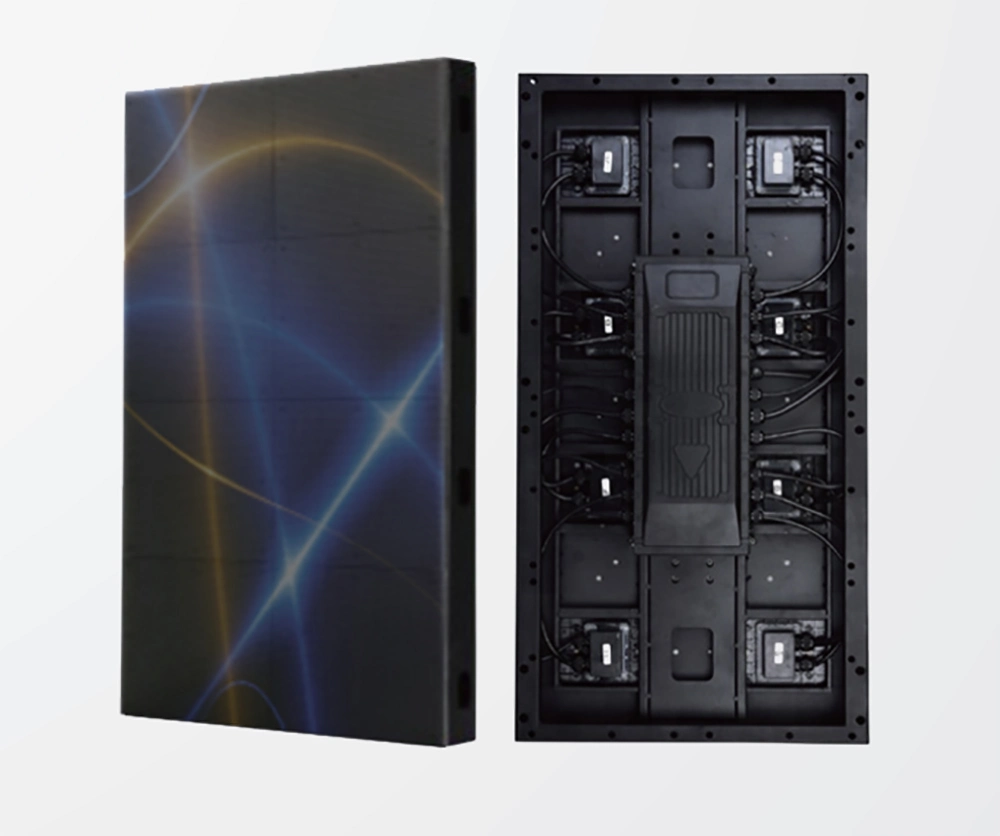

Panel Dimensions (mm) | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 |
NO.of Modules Per Panel (W × H) | 2 × 2 / 2 × 4 | 2 × 2 / 2 × 4 | 2 × 2 / 2 × 4 | 2 × 2 / 2 × 4 |
Physical Resolution of Module (W × H) | 64 x 64 / 64 x 128 | 48 x 48 / 48 x 96 | 40 x 40 / 40 x 80 | 28 x 28 / 28 x 56 |
Physical Resolution of Panel (W × H) | 128 × 128 / 128 × 256 | 96 × 96 / 96 × 192 | 80 × 80 / 80 × 160 | 56 × 56 / 56 × 112 |
Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
Single Cabinet Weight | 20 / 35 kg / panel | 20 / 35 kg / panel | 20 / 35 kg / panel | 20 / 35 kg / panel |
Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
Average Power Consumption | 300 W / m² | 300 W / m² | 300 W / m² | 300 W / m² |
Max Power Consumption | 600 W / m² | 600 W / m² | 600 W / m² | 600 W / m² |
Operating Temp/Humidity | -10ºC- 60ºC / 10% - 60% | -10ºC - 60ºC / 10% - 60% | -10ºC- 60ºC / 10% - 60% | -10ºC - 60ºC / 10% - 60% |
Storage Temp/Humidity | -30ºC - 60ºC / 10% - 60% | -30ºC- 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% |
Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
Brightness | ≥2,500 nits | ≥2,000 nits | ≥4,500 nits | ≥4,500 nits |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
Vertical Viewing Angle | 140° | 140° | 140° | 140° |
Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
Best Viewing Distance | 4m-60m | 6m-60m | 8m | 8m |
Servicing | Front | Front | Front | Front |
IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
Scan Method | 1/16 Scan | 1/6 Scan | 1/5 Scan | 1/3 Scan |
