HD P10 Outdoor LED Video Screen Advertising Display Digital Billboard

High Definition P10 Outdoor LED Video Screen Advertising Display Digital BillboardsMain DescriptionRefresh Rate: >1920 HZViewing Angle:H:140° / V:160°Weight (kg/m²): 65/45Servicing : Front / RearSMD3535 Nationstar offer excellent view effect of video & image.High brightness with over 6500nits.Outdoor Full Col

Featured Products

High Definition P10 Outdoor LED Video Screen Advertising Display Digital Billboards

Main Description

Refresh Rate: >1920 HZ
Viewing Angle:H:140° / V:160°
Weight (kg/m²): 65/45
Servicing : Front / Rear

SMD3535 Nationstar offer excellent view effect of video & image.
High brightness with over 6500nits.



Outdoor Full Color Advantages:

1. P10, SMD 3535 packaging, a large angle of view, power consumption, color uniformity,  low failure rate.

2. Standardized design

Standardized module and cabinet for the outdoor fixed series, including P5, P6,P8 and P10 outdoor led display, reducing the delivery time and saving the maintenance cost for the advertisers.


3. Multiple waterproof casing design, single box full inspection factory, the protection level IP65 mature signal transmission architecture, equipped with the upgraded version of power management technology, the use of more secure and reliable.

High Definition P10 Outdoor LED Video Screen Advertising Display Digital Billboards


4. Front/Rear Maintenance

For outdoor adverts led screen,
we also offer front maintenance solution.

You can take modules and all other parts
out from front with one screwdriver.

High Definition P10 Outdoor LED Video Screen Advertising Display Digital Billboards



5. Low power comsumption. The working voltage is 5V, which is very safe to use. Reducing the voltage to receive energy saving between 40% and 20%



Specifications

 BOF-10
Physical Pitch10 mm
Pixel ConfigurationSMD 3535
Pixel Density10,000 pixels/m²
Module Dimensions(W*H)(mm)320*320
Panel Dimensions(mm)1280*960*150
NO. of Modules Per Panel (W*H)4*3
Physical Resolution of Module (W*H)48*48
Physical Resolution of Panel (W*H)128*96
Panel MaterialSteel/ Aluminum
Colors281 trillion
Brightness>6,500 nits
Weight (kg/m²)65/45
Processing16 bit
Refresh Rate>1920 Hz
IP RatingIP65/ IP54
Viewing AngleV:160 degree
H: 140 degree
Expected Lifetime100,000 Hrs
Operating Temp/Humidity-20ºC-50ºC/
10%-90%
Storage Temp/Humidity-20ºC-50ºC/
10%-90%
Avg./ Max. Power Consumption360/900W/ panel
ServicingFront/Rear


  Procesure Details

We have the 960*960mm or 1280*960 cabinet, with the Steel material ,and the tickness is 150mm, really robust, sturdy and conventional, commerical by our client  to make the choice.

   High Definition P10 Outdoor LED Video Screen Advertising Display Digital Billboards

High Definition P10 Outdoor LED Video Screen Advertising Display Digital Billboards

We provide synchronous or asynchronous operating systems, you have the flexibility to choose your way.You could push the image or words into a global screen and monitor it in the office .Of course, no matter the brightness or the playing contents can also be adjusted.You can remotely control the brightness of the screen, as well as the content and time it plays.


High Definition P10 Outdoor LED Video Screen Advertising Display Digital Billboards

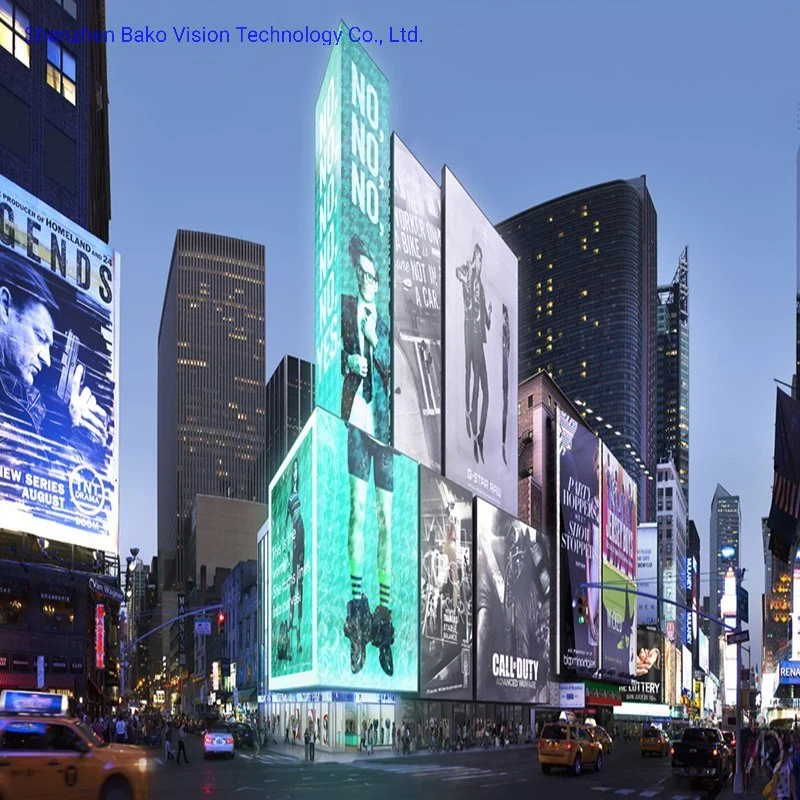

Widely  Application:

Our products have been widely used in venues as banks, stock exchange centers, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, city squares, courts, schools, restaurants etc

High Definition P10 Outdoor LED Video Screen Advertising Display Digital Billboards

Our company

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

 High Definition P10 Outdoor LED Video Screen Advertising Display Digital Billboards


Quality assurance


  1. Every production process has a special person to test 72 hours to ensure quality.
  2. Have professional engineers to check the quality.
  3. All products have passed CE, FCC, ROHS and other certifications.
  4. We have the local agency and you can enjoy the local service.


Tips
* Package: Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:20-25 working days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen,China
* Warranty time: 2 years









Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
