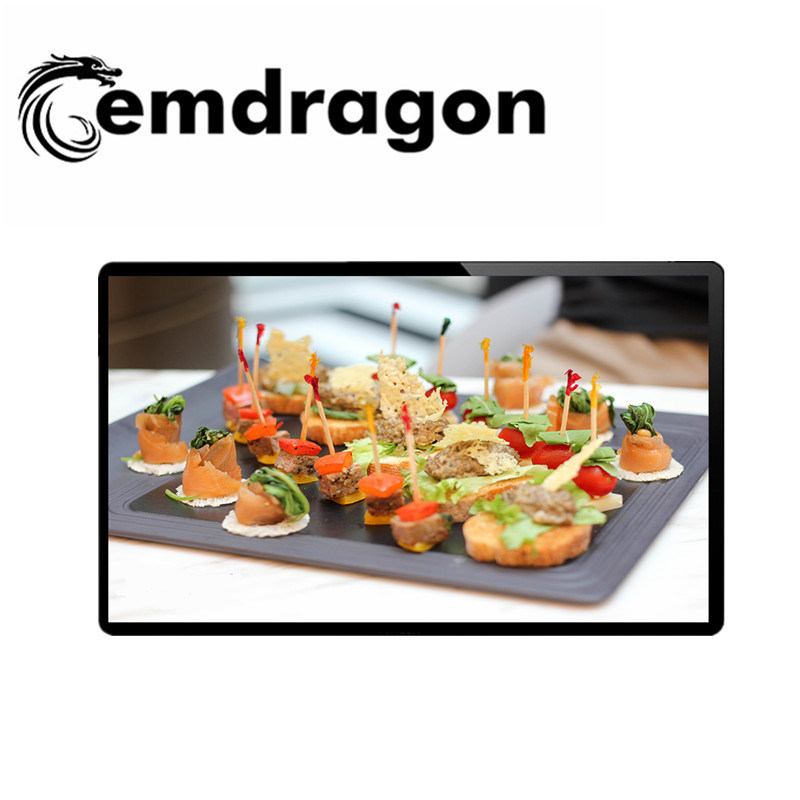

ultra-wall mount kiosk digital advertising screens LCD digital signage
Support OEM / ODM
Infrared TOUCH ( optional ) , Thickness :3cm(or 2cm)
32 / 43 / 50 / 55 inch Screen can support
Stand-alone / Android / windows version optional
black , gold , silver ( optional )
Phone no :+86 13789084991
Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.
|Screen configuration||Motherboard configuration|
|Screen size: 32 "|
Resolution: 1920 (RGBW) × 1080 [UHD]
Display size: 698.4 (width) × 392.85 (high) mm
Visual size: 727.4 (width) × 429 (high) mm
Brightness (cd / m2): 400 (Typ.)
Best angle: full view
Viewing angle: 89/89/89/89 (Min.) (CR≥10)
Number of colors: 16.7M, 72% (CIE1931)
Point distance: 0.124x0.372mm
Screen Weight: 5.70Kgs (Typ./Max.)
Refresh frequency: 60Hz
Signal system: LVDS (2 ch, 8-bit), 51 pins, terminal
Supply voltage: 12.0V (Typ.)
Maximum rated: Storage temperature: -20 ~ 60 ° C Operating temperature: 0 ~ 50 ° C
Screen type: LCD module, a-Si TFT-LCD
Pixel configuration: RGBW vertical strip
Dimensions: 705.6 (width) × 400.1 (high) × 10.5 (thick) mm
Surface treatment: matte (Haze 1%), Hard coating (3H)
Contrast: 1000: 1 (Typ.) [Transmission]
Optical mode: TN, often black display, transmission type
Response speed: 7/5 (Typ.) (Tr / Td) ms
Backlight type: WLED, 50K hours, with LED driver
|CPU: RK3188, quad-core, frequency 1.6GHz|
Memory: 1 / 2G (optional)
Built-in memory: EMMC FLASH 8G (optional)
Built-in ROM: 2KB EEPROM
Decoding resolution: up to 1080P
Operating system: Android 4.4 above
Play mode: support for the cycle, timing, spots and other playback modes
Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion
Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
Picture format: support BMP, JPEG, PNG, GIF
USB2.0 interface: 3 USB HOST, 3 USB socket
Serial port: 3 serial socket
TVIn: CVBS input 2, support N, P standard
GPS: built-in GPS (optional)
WIFI, BT: built-in WIFI, BT (optional)
Ethernet: 1, 10M / 100M adaptive Ethernet
Timing switch machine: support
Material: tempered glass
Glass thickness: 3mm, 4mm, 6mm
|Touch the parameter||Electrical parameters|
|The number of times the theory is determined by the degree of glass wear|
Design life: more than 5 years
Touch the fastest response speed: 6ms
Touch the average reaction speed: 8ms
|Working voltage: 4.5 ~ 5.5Vdc|
Working current: ≤120mA
Power: ≤ 900mW
Welcome To Gemdragon Display Technology
|Packaging & Shipping|
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Phone no :+86 13789084991
Q1: Are you a factory or trading company?
We are a OEM / ODM factory.
Q2: How long is the warranty time for your products?
Our officially promised warranty time is one whole year after delivery at best.
Q3: I haven't done business with you guys before,how can i trust your company?
Our company has been in Alibaba.com for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $736356.7, and it is still going up.
Q4: what's the shipment terms and delivery time of your company?
Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
Q5: what brand of screen are you using?
Samsung and LG screenare normally used for the digital signages and video walls, while customized screen is also supported.
Q7: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company Gendragon perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
Q8: What is the minimum order?
Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames,like 7 inch.Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames,like 7 inch.
