Indoor P3.91 full color large screen LED display/LED rental screen/500X500mm cabinet

Indoor P3.91 Full Color Large LED Screen Display/ LED Rental Screen/ 500x500mm CabinetBrief descriptionInstallation: Hanging, lifting,standing on floor.Connection : Connected to your computer .Camera,DVI , SDMI or other equipment.Tool-free assembly and disassembly. OEM&ODM, any your customized lightings we can help you

Featured Products

Indoor P3.91 Full Color Large LED Screen Display/ LED Rental Screen/ 500x500mm Cabinet

Brief description

Installation: Hanging, lifting,standing on floor.
Connection : Connected to your computer .Camera,DVI , SDMI or other equipment.
Tool-free assembly and disassembly
.
 OEM&ODM, any your customized lightings we can help you to design and put into product


Products  features

1.High quality LED chip and high anti-static electricity capacity.

2.Large viewing angle and smooth displaying provide excellent visual effect from every angle.

3.The integration of lamp and driving IC, together with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.

4.Ultra-high brightness, low attenuation, high reliability and weather ability.

5.High contrast ratio. Adopting black lamps can improve the contrast ratio by 50%

6.Low brightness and high gray scale

16Bit gray scale to bring excellent performance when brightness reduced to 20%.


7. Hanging and Standing , Max Hanging 10 meters.

Indoor P3.91 Full Color Large LED Screen Display/ LED Rental Screen/ 500X500mm Cabinet

Parameter

 BIR-II 2.97BIR-II-3.91BIR-II-4.81
Physical Pitch2.97mm3.91mm4.81mm
Pixel ConfigurationSMD2121SMD2121SMD2121
Pixel Density

112,896   pixels/m²

65,536  pixels/m²

43,264  pixels/m²

Module Dimensions(W*H)(mm)250*250250*250250*250
Panel Dimensions(mm)

500*500*80/500*1000*80

500*500*80/500*1000*80

500*500*80/500*1000*80

NO. of Modules Per Panel (W*H)2*2/2*42*2/2*42*2/2*4
Panel MaterialDie-Casting AluminumDie-Casting AluminumDie-Casting Aluminum
Colors281Trillion281Trillion281Trillion
Processing16 Bit16 Bit16 Bit
Physical Resolution of Module(W*H)(mm)84*84

64*64

52*52

Physical Resolution of Panel(W*H)(mm)168*168/168*336

128*128/ 128*256

104*104/ 104*208

Single Cabinet Weight8/14kg/panel8/14kg/panel8/14kg/panel
Average Power Consumption400 W/panel325 W/panel310 W/panel
Max  Power Consumption800 W/panel780 W/panel750 W/panel
Brightness1200 nits1200 nits1200 nits
 Viewing AngleH:160°/ V:140°H:160°/ V:140°H:160°/ V:140°
Operating Temp/ Humidity-10ºC-60ºC/10%-60%-10ºC-60ºC/10%-60%-10ºC-60ºC/10%-60%
Storage Temp/ Humidity-30ºC-60ºC/10%-60%-30ºC-60ºC/10%-60%-30ºC-60ºC/10%-60%
Expected Lifetime100,000 Hrs100,000 Hrs100,000 Hrs
ServicingFront/RearFront/RearFront/Rear
IP Rating(Front/Rear)IP 40/IP21IP 40/IP21IP 40/IP21
Max Stacking and Hanging20/1020/1020/10
Refresh Rate>1,920 Hz>1,920 Hz>1,920 Hz
Scan Method1/28 Scan1/16 Scan1/13 scan



Pruduct details

Indoor P3.91 Full Color Large LED Screen Display/ LED Rental Screen/ 500X500mm Cabinet

2.High gray level

The display of the screen is almost perfect with low brightness, and the appearance of the screen is higher than the traditional display.

That can show more image details, no information loss.

3.High refresh rate

The screen intake five black screen picture stability without ripples, dealing with the dynamic display screen, the image edge is clear, the screen has good dynamic performance, the image information accurately real reduction, make the video screen clear fluid, bring good visual enjoyment.


Indoor P3.91 Full Color Large LED Screen Display/ LED Rental Screen/ 500X500mm Cabinet
1. Wider Viewing angle
2. High Brightness
3. High Contrast
4. Fast Respones Times

Indoor P3.91 Full Color Large LED Screen Display/ LED Rental Screen/ 500X500mm Cabinet





Application

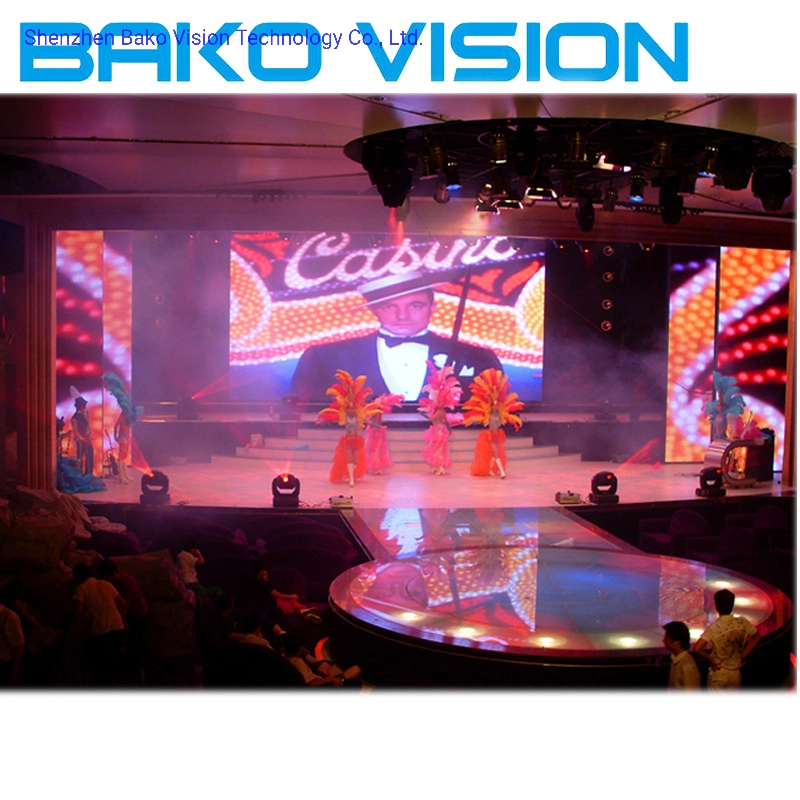

Widely applied to traffic information distribution of station, quay and airport, conference, shopping mall, brand presentation,TV station, stage show, concert and so on.

Indoor P3.91 Full Color Large LED Screen Display/ LED Rental Screen/ 500X500mm Cabinet

Packing/ Shipping -Flight case/ By sea or by air

Indoor P3.91 Full Color Large LED Screen Display/ LED Rental Screen/ 500X500mm Cabinet


Our company

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.


Indoor P3.91 Full Color Large LED Screen Display/ LED Rental Screen/ 500X500mm Cabinet

Feedback

1. We rely on our product quality and customer satisfaction to succeed. Therefore, your feedback is extremely important, please leave good feedback if you get satisfied with our goods and service.
2. We care about our valued customers, and will always try to help you. Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues.
3. Please email us before leaving any negative feedback or opening any dispute on the site. We will help you to resolve the problem.




Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
