Specification
Pixel structure | SMD 1212 |
Pixel pitch(mm) | 1.56 |
Pixel density(dot/M2) | 409600 |
Module resolution(W*H) | 128*108 |
Module size(W*H) | 200(W)*168.75(H) |
Module maximum power consumption(W) | 30 |
Module of cabinet(W*H) | 3*2 |
Cabinet resolution(W*H) | 384*216 |

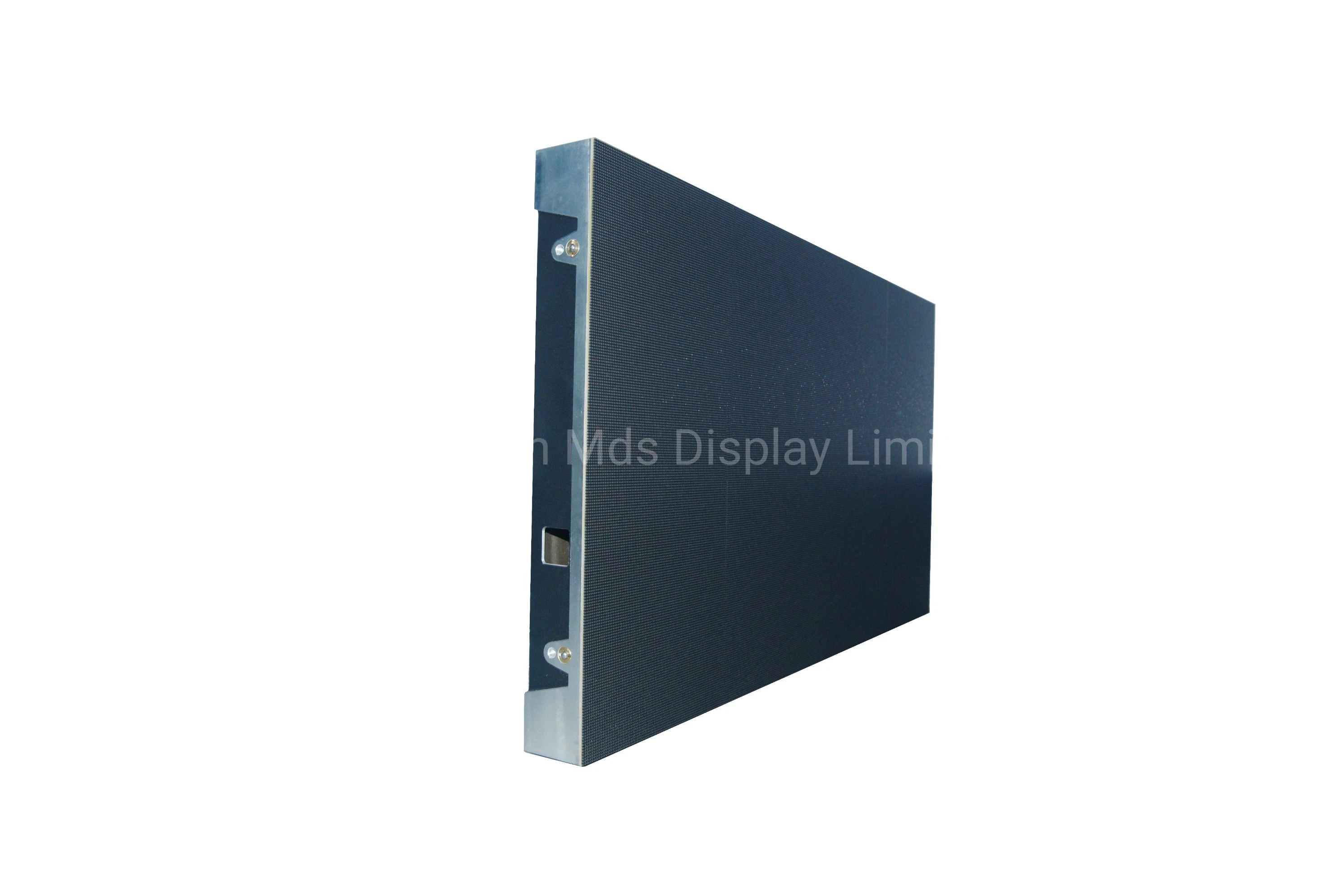

Cabinet size(mm) | 600(W)*337.5(H)*63(D) |
Cabinet area(M2) | 0.2025 |
Cabinet weight(KG) | 9.9 |
Cabinet flatness(mm) | <=0.01 |
Maintain style | Front maintenance |
Cabinet material | Die casting aluminum |
Screen seam (mm) | The flatness of the seam should be ≤0.1mm |
Pixel out of control rate | 1/100000 |
Single point brightness correction | have |
Single point chromaticity correction | have |
White balance brightness(Nits) | 200~600 adjustable |
Color temperature(K) | 3200~9300 adjustable |
Viewing angle(Horizontal/ Vertical) | 160°/160° |
Light pixel centerline spacing different | <3% |
Brightness/ color uniformity | >=97% |
Contrast ratio | 5000:1 |
Frame frequency(HZ) | 50&60 |
Grey scale | 65536 |
Driving mode | Constant current drive, 1/27scan |
Max power consumption(W/M2) | 800 |
Avg power consumption(W/M2) | 100-200 |
Power supply requirement | AC90-264, frequency 47-63(HZ) |
Refresh rate | >=3840HZ |
Color processing level | 16bit |
Video effect | 2KHD,4K/ 8K ultra picture |
Working Temperature/Humidity(ºC/RH) | -20-60/ 10%-85%RH No moisture condensation |
Storage Temperature/ Humidity(ºC/RH) | -20-60/ 10%-85%RH No moisture condensation |
Certificate standard | CCC, TUV-CE |
Features:
1. Fully front service, fix it to wall directly which save space and installation time.
2. Wide color gamut, uniform color; 3840Hz high refresh rate, no tailing, ghosting phenomenon;
3. Natural heat dissipation, ultra-quiet and fanless design;
4. Die-cast aluminum design, CNC finishing, the cabinet flatness is very good;
5. NovaStar control system.
Fully front maintenance design:
There is no need for maintenance channel behind the screen. It can be attached to the wall, which saves time and space.
High gray scale, 16bits which let the picture minute.
Ultra fast response speed, no Ghosting & Twisting or Smear.
4K high refresh rate.
Test images
