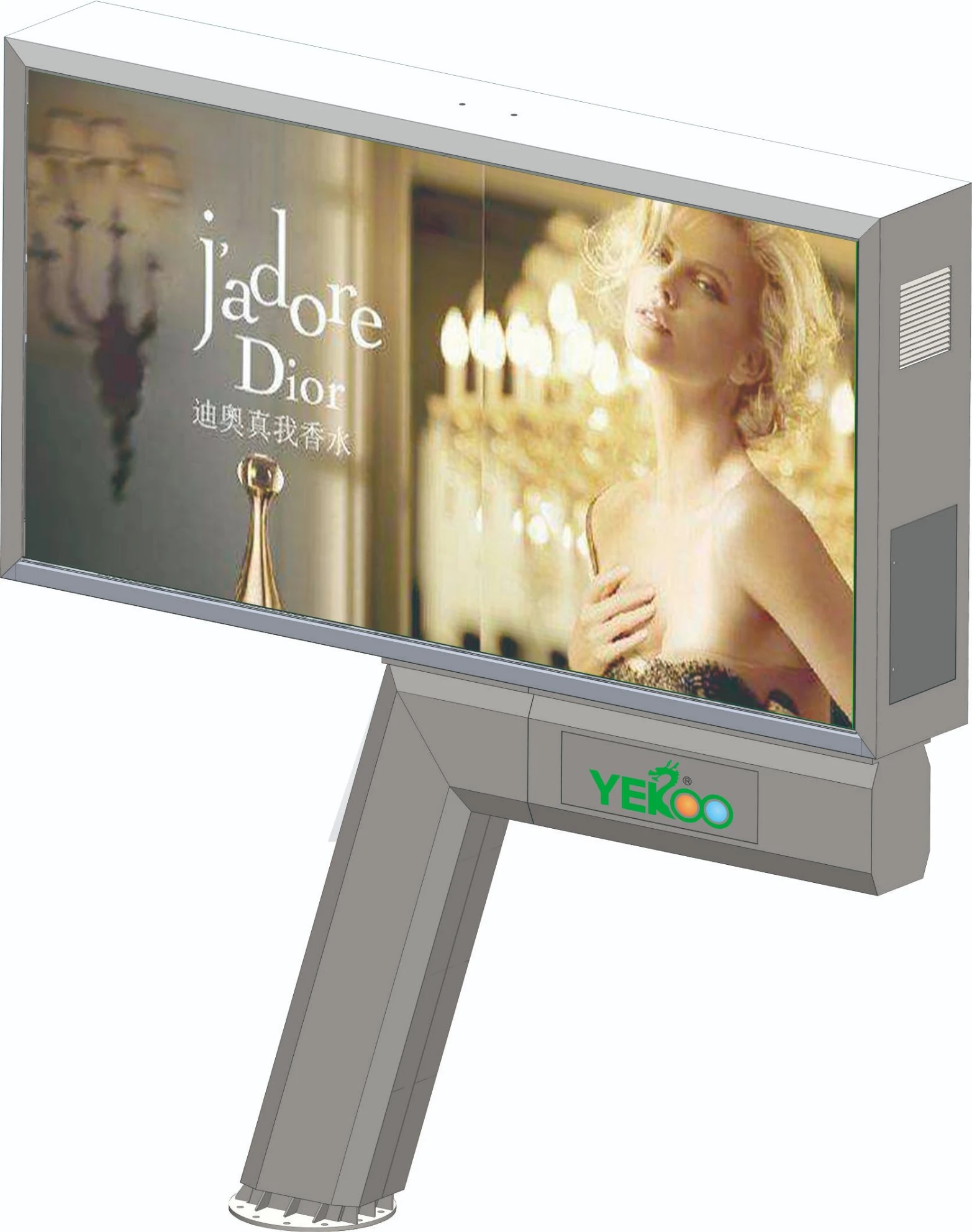

Low Price P10 LED Screen Outdoor Billboard LED Screen Structure
|P10 Outdoor Full-color LED Display|
|1. LEDs Data||with best white balance result,color brightness rate should be R:G:B=3: 5.9: 1.1 ,|
we usually design them into rough rate 3:6:1 basing upon chips specification;
|Chips||Brand||Chips Size||Wave Length|
|LED Type :||DIP|
|Brightness :||≥7500 nits|
|Viewing Angle :||120°(H) / 60°(V)|
|2. Module Data||Pitch :||10mm|
|Resolution :||16 x 16 dots|
|Size :||160mm x 160mm|
|Pixel Density :||10000 dots/m² (real pixels)|
|Driving Mode :||1/4 scan|
|3. Cabinet Data||Rsolution :||** (H) x**(V)|
|Size :||**mm x **mm|
|Depth :||150 mm|
|Maintenance :||Fixed Back-access|
|Weight :||approx.45kg per cabinet|
|4. Screen Data||Driving IC :||MBI 5020/5024/16126/2026|
|PCB Board :||KB A++|
|Power Supply :||Chenglian with CE&Rohs certificates AC110V/AC220V 50-60Hz|
|Max Power Consumption:||≤780W/m²|
|Best View Distance:||10-200 m|
|Surface Flatness :||GAP< 0.5 mm|
|Screen Certificates:||CE &Rohs|
|Screen Controllers :||Linsn,Nova,Dbstar,Zdec, popular asynchronous controllers|
|Frame Update Frequency:||50- 60Hz|
|Gray Scale:||14 bits input|
|Display Color:||10 trillion|
|Brightness Adjustment:||256 Levels with RGB individual adjustment|
|Control Mode:||Synchronous display with control PC by DVI / Asynchronous|
|Gamma Correction:||16 bits|
|Support Input:||Composite Video,S-Video,DVI,CATV,Popular Formats of Pics|
|Control Distance:||Ethernet Cable 100m,Single-model fiber 5km|
|Support VGA Mode:||800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200,|
|Brightness Correction :||Dot by Dot, module by module, cabinet by cabinet|
|Operating Temp :||- 35°~ +60° Celsius degree|
|Storaging Temp :||- 35°~ +80° Celsius degree|
|Operating Humidity :||10 - 90 % RH|
|Operating Life :||100000 Hours|
|Continuous Working Time :||≥48 hrs|
|MTBF :||10000 Hours|
|Loss Control Pixel Rate :||0.1‰|
|YEROO Group Co,. Ltd, established in 2000, with four subsidiary companies, "YEROO outdoor", "YEROO tech","YEROO design", and "YEROO smart", is a leading company integrating manufacturing and trading.Our main products:"YEROO outdoor": highway billboard, bus shelter, light box and signage"YEROO tech": LCD display|
Under the principle of "all for the clients", we have been striving to extend our market, with which, we have acquired the honored title "Gold Member" in two famous B2B trading platforms, Alibaba and Made-in-China.
We are located in Foshan city China, with a workshop larger than 10,000sqm, taking advantage of the experience workmanship, scientific administration and advaniced equipment(Large size available spray painting equipment, 6m maximum bending and plate shearing machine, double end cutting machine, laser engraving machine and heavy lift and so on), we not only won the customers' faith, but also built our brand.
Herewith, we YEROO shall continue to give our best support to establish and maintain our long term friendly partner relationship with you based on the principle of "Safety, Integrity, Creativity, and Unity".
1.Are you manufacture factory?
Yes, we are manufacture factory. We established in 2000, with 19 years experience.
Warmly welcome you to visit our factory.
2. Does your structure strong enough?
Yes, our structure can reach wind resistance 120km/h ~ 150km/h.
3. Could your structure be customized?
Yes, we can make the structure according to your own design.
4. Is it easy to fix the LED screen on the structure?
Yes, only by screws. Normally, clients can fix the LED screen on the structur by themselves according to our installation drawing.
5. Can you assist inspection from the third party?
Yes, we can assist them.
6. How about the lead time?
The structure must be shipped by sea,40HQ container normally,about 30 days.
7. Do you accept sample order?
Yes, sample order is accepted.
