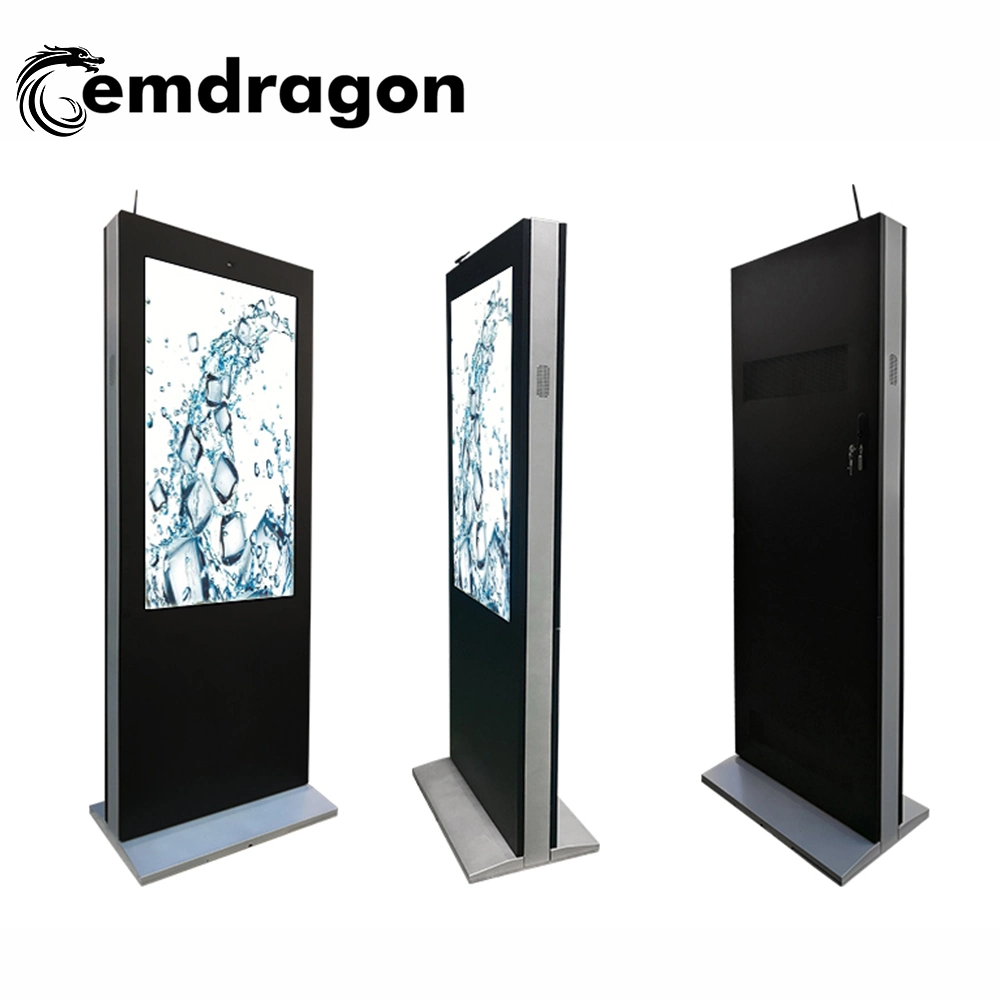

outdoor advertising screen air-cooled vertical screen floor outdoor advertising machine 55 inch LCD kiosk led advertising screen LED digital signage
Support OEM / ODM
Android / windows version optional
Mobile phone :+86 15815057047
Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.
- ALL-WEATHER OUTDOOR OPERATION
- OUTDOOR BRIGHT HIGH-DEFINITION LCD DISPLAY
- Under sunlight intelligent sensitometric, horizontal / Vertical 178 ° visibility
- Intelligent unique air duct, motherboard design can automatically adjust the wind speed heat dissipation
- Built-in abnormal protection design can automatically power-off protection LCD screen, Remote Monitoring
- Add on: Remote Monitoring, touch interaction, WIFI / 3G / 4g
- Outdoor Protection Level IP55
- All outdoors: Waterproof / dustproof / sunscreen / antiseptic / Riot / Burglar
- Wall-mounted installation, bright LCD module design, beautiful appearance, easy maintenance
- The use of galvanized steel + Zinc powder base + surface spray special outdoor powder
- (outdoor advertising machines have been embalmed for more than seven years)
Detailed description of performance1. Structure
1.1 Shell design: 1.2 or 1.5 mm galvanized sheet is used for outer shell design, sprayed with Aksu special powder, outdoor anticorrosive for more than 7 years.
1.2 WATERPROOF DESIGN: Shell Structure Design Waterproof flume and in-out air hole waterproof maze, meet IP55 protection level.
1.3 anti-dust design: Inlet and outlet design special anti-dust filter (high efficiency anti-dust filter) , filter the air, and prevent mosquitoes and other enter the machine.
1.4 high transparent glass: 6 mm high transparent glass or AR anti-glare toughened glass is used in front of the whole screen. The light transmittance is more than 97% , and the light toughened glass is higher.
1.5 maintenance: The whole machine adopts front and rear double door mode, which can easily maintain the internal display screen, glass, heat dissipation components and electronic parts; the whole machine adopts Modular design, which is convenient to install and maintain.
1.6 ANTI-THEFT DESIGN: The base adopts inner lock design, which prevents the mobile machine from disassembling the screws from the outside, so as to be truly safe and anti-theft.
1.7 installation and fixing: The base is designed to install a fixed hole, fixed with expansion screws in the cement floor, can be customized according to customer requirements, and complete accessories, received the machine can be directly drilled fixed installation.
2.1 using outdoor special high-brightness LCD screen, brightness up to 1000-2500nit, visible under strong light, design life of 50,000 hours.
2.2 Hd Quality Screen Resolution: 1920 * 1080.
2.3 high dynamic contrast, better picture, viewable angle 178.
2.4 a smart photosensitive system that automatically adjusts the brightness of the screen according to the environment. The user can watch the programmes clearly / comfortably at different times to protect his eyes.
2.5 intelligent color calibration, automatic calibration contrast color or manual fine-tuning, presents the perfect picture.
3. Intelligent Temperature Control System
3.1 intelligent direct ventilation (forced air cooling) cooling system, special heat dissipation design.
3.2 independently developed intelligent temperature control system control box, according to the internal temperature of the advertising machine, intelligent regulation of the whole internal air and external air for the time cycle, all external wind first into the filter screen Then the wind is divided into screen before / After Double Air Channel Circulation.
3.3 equipped with high temperature automatic power-off protection function, when the internal temperature of the machine is abnormal and beyond the reasonable working range due to external or internal factors, the control system will carry out power-off protection to the main fittings such as the display screen At the same time fan continue to run at full speed cooling, fully protect the display and major parts.
4. Electronic Structure
4.1 intelligent industrial control motherboard from well known manufacturers, single machine / android / industrial control computer motherboard option, default Android dual-core. Support Remote and local program management (optional) .
4.2 adopt the international famous brand industrial grade switching power supply, suitable for different countries in the world, safe, stable, long life, high energy efficiency.
4.3 built-in leakage protection, lightning protection configuration, all-round security protection.
4.4 configuration accurate timer, Chinese and English two options, can be repeated multiple settings, by day, week, month timing switch.
4.5 over-temperature protection: When the internal temperature is too high due to special conditions such as blockage of inlet and outlet ducts not being found and maintained in time, the liquid crystal display power supply will be switched off and the air-cooled system will continue to operate normally PROTECT LCD panel, motherboard and other main components.
5. Electronic Function
Can choose to use well-known manufacturers A20, A83,3188,3288 and other motherboards, high performance. The Default A20 DUAL-CORE 1 + 8 G, Support 2 + 8 G, 2 + 16 G, 2 + 32 G and other optional configuration.
Android 4.4 or 5.0 is supported. Bluetooth 4.0 support.
Memory: 1G2G INTERNAL STORAGE: 8g16g32g
Decoder Resolution: 1920 * 1080 and above.
Play Mode: Support Cycle, timing, insert broadcast, screen partition play, support multimedia materials, such as arbitrary combination play mode
Network support: Ethernet, optional wireless peripherals, Optional 3G / 4G MODULE
Video playback: support WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, VOD, MOV, MKV, MP3, AAC FORMATS
Image format: Support Jpeg, PNG, Gig, BMP, etc.
FILE FORMAT: TXT, PPT, WORD , ECELE, etc.
Video output: support LVDS format video output
Audio output: HDMI HD video output, left and right audio output, built-in 2 * 10W High Quality Audio.
Optional Support for Information Distribution System: RTC real-time clock, timing boot, U Disk Update playlist, U Disk Network Upgrade, remote control
2. X86 Computer System
CPU: Intel i3 / i5 / i7 / 1900(optional)
Ram: 2G / 4G / 8G
Hard Disk: Mechanical Hard Disk 500g1000g, solid state disk 64g1286g
Operating System: Windows 7 / 10 Chinese and English system, LINUX UBUNTU SYSTEM
Decoder Resolution: 1920 * 1080 and above.
Network support: Ethernet (optional 2-way) , optional wireless peripherals, Optional 3G / 4G MODULE
VIDEO: support HDMI, VGA VIDEO OUTPUT
AUDIO: Left and right channel output, built-in 2 * 10W high-quality audio.
Peripheral support: Can Support 4 * USB, 2 * Serial Port (Optional 6) , 2 * Sata Interface
Optional Support for Information Distribution System: RTC real-time clock, timing boot, U Disk Update playlist, U Disk Network Upgrade, remote control.
Welcome To Gemdragon Display Technology
|Packaging & Shipping|
Standard export carton packing.
3-20 days after confirming order, detail delivery date should be decided according to
Production season and order quantity.
Mobile phone :+86 15815057047
Q1: Are you a factory or trading company?
We are a OEM / ODM factory.
Q2: How long is the warranty time for your products?
Our officially promised warranty time is one whole year after delivery at best.
Q3: I haven't done business with you guys before, how can I trust your company?
Our company has been in Alibaba. COM for almost 7 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, UL, RoHS, FCC ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough. Our Trade Assurance Limit is US $736356.7, and it is still going up.
Q4: What's the shipment terms and delivery time of your company?
Well, they depends on the quantity of your order. As you know, we need time to manufacture the machines. But mostly, the shipment time is 3-8 working days after delivery. For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG. As for detailed cost, it depends on your final order.
Q5: What brand of screen are you using?
Samsung and LG screenare normally used for the digital signages and video walls, while customized screen is also supported.
Q7: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company Gendragon perfectly support customized logo service. But, we also hope you know that it's an extraservice, so a little bit extra service fee is needed.
Q8: What is the minimum order?
Yes, our company mainly deals with wholesale deals, but if you insist buying one set, or you just need one set, we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames, like 7 inch. Yes, our company mainly deals with wholesale deals, but if you insist buying one set, or you just need one set, we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames, like 7 inch.
