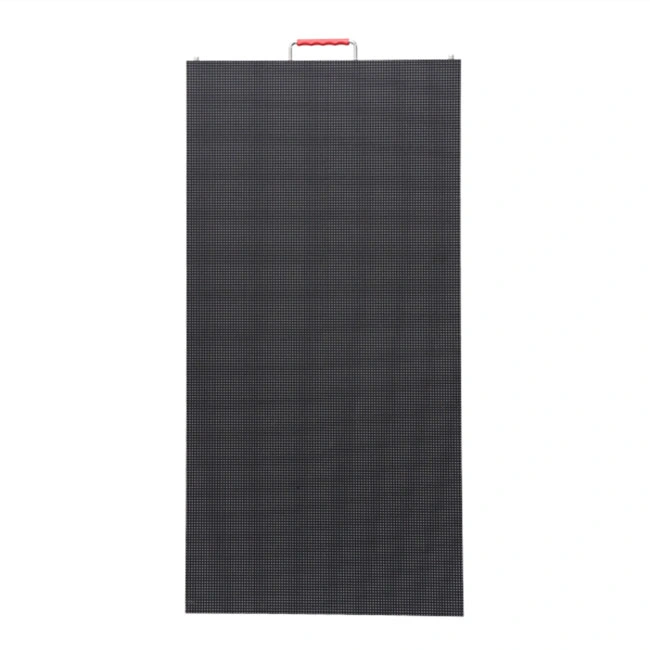

Outdoor large stadium LED display P8 P10 large sports HD TV LED screen board

Application: 1. It\'s a kinds of advanced LED screen for sport stadium advertisement, like in football stadium, basketball stadium, table tenis stadium, hockey area, swimming pool. 2. It\'s a very popular LED screen for sport stadium advertisement. Please feel free to ask us for more information and for sample projectP

Featured Products

Application:
1. It's a kinds of advanced LED screen for sport stadium advertisement, like in football stadium, basketball stadium, table tenis stadium, hockey area, swimming pool.
2. It's a very popular LED screen for sport stadium advertisement. Please feel free to ask us for more information and for sample project


Outdoor Large Stadium LED Display P8 P10 Big Sport HD TV LED Screen Board


Product feature:
1. Cost effective cabinet materials aluminum.
2. Has soft top cover, soft mask which will protect the athletes.
3. Support angle adjustment, 0-15 degree.

Outdoor Large Stadium LED Display P8 P10 Big Sport HD TV LED Screen Board


Specification:
1Model No.SPAS10
2Pixel Pitch (mm)10
3Module Size (mm)320*160
4Module Resolution (pixels)32*16
5Cabinet Size (mm)1280*960*120
6Cabinet Resolution (pixels)128*96
7Pixel configuration1RGB
8LED EncapsulationSMD3535 KINGLIGHT
9Work Voltage (DC)5V
10Driver Mode (Scan)1/2
11Cabinet Weight (kg)43
12Physical Density (pixels)1000
13Brightness (NIT)6500
14Gray Scale (BIT)14
15Contrast Ratio3000:1
16Refresh Rate (Hz)3840
17Viewing Angle (H/V)±140°/±140°
18Protection GradeIP65
19MAX Power Consumption (W/m²)750
20Average Power Consumption (W/m²)250
21Work Temperature-20ºC~50ºC
22Work Humidity10%RH~90%RH
23Optimal Viewing Distance≥20m
24Input AC Power110V or 240 V, 50Hz or 60Hz

The advantages:
1. High brightness.
2. Fast splicing, tool free.
3. Energy saving.
4. Reliable quality grarantee.
5. Superb ingress protection.


About us:
We are a trade factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.



Factory:
(The pictures below were taken during night, after most of the workers off work)
1. Skillful workers who have worked more than 6 years in our factory.
2. High technology auntomatic machines.
3. Aging test + Grayscale test for each module.


Outdoor Large Stadium LED Display P8 P10 Big Sport HD TV LED Screen Board

Delivery and payment:
1.
Production time for 0-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case or flight case provided.


Outdoor Large Stadium LED Display P8 P10 Big Sport HD TV LED Screen Board
