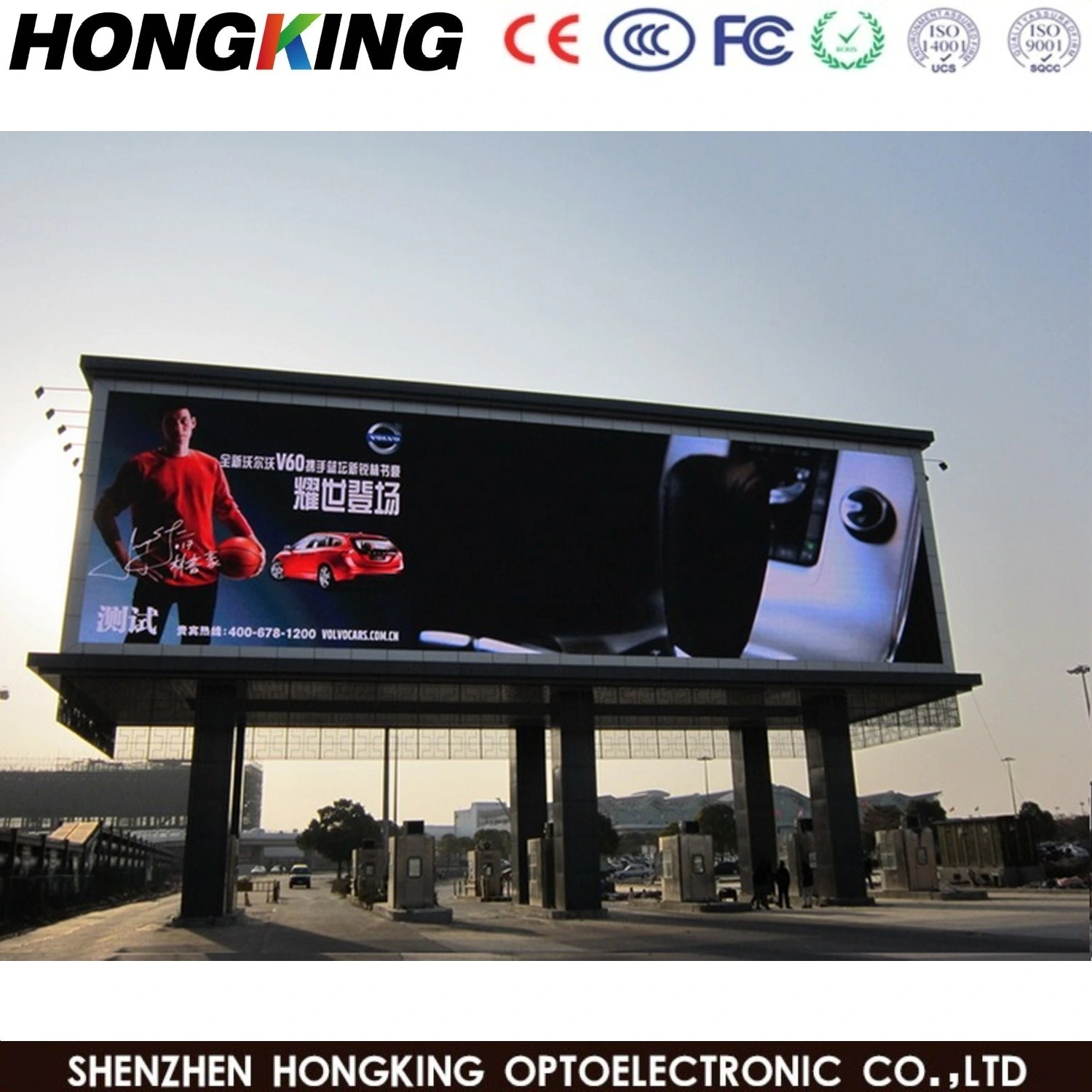

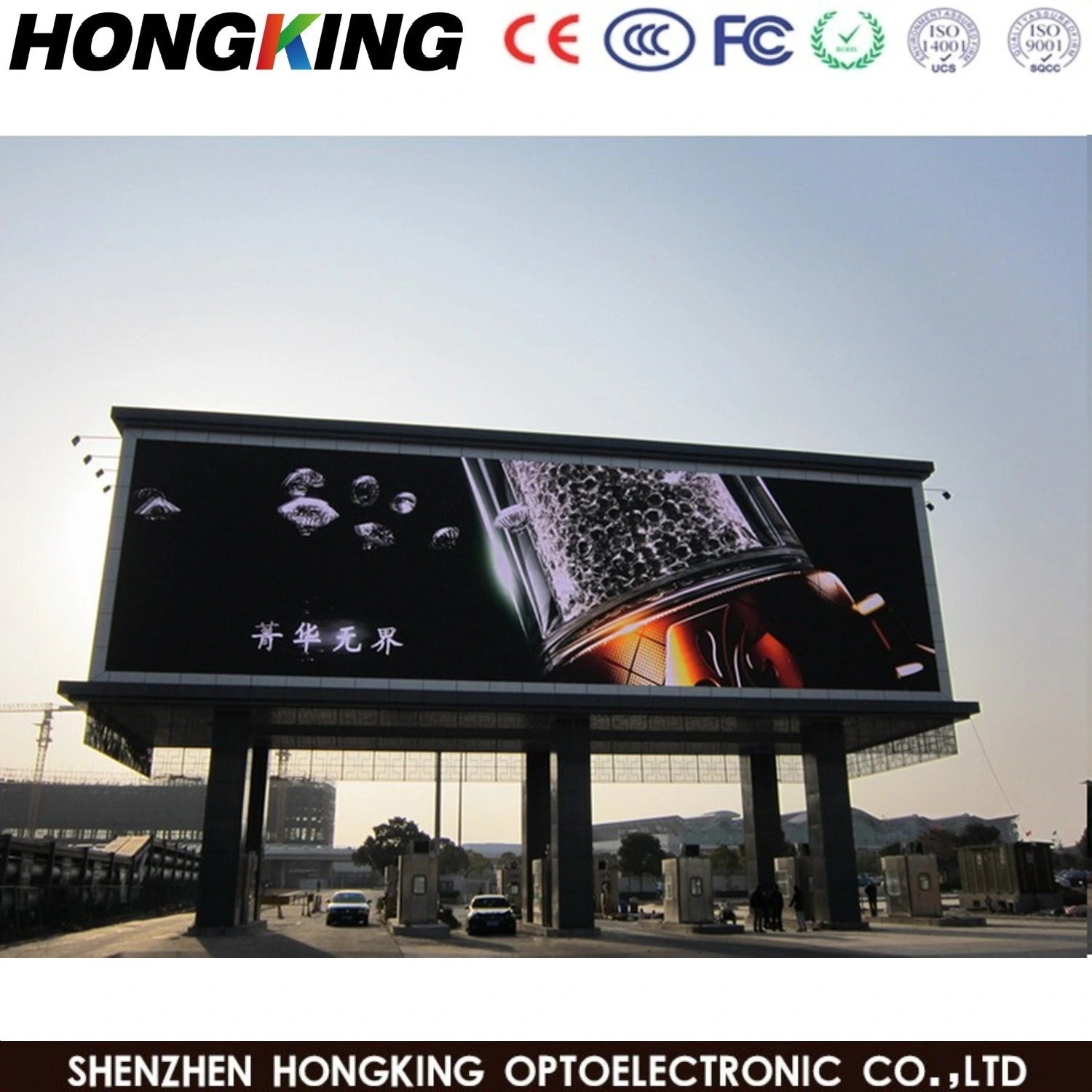

Outdoor waterproof full color advertising P8 large LED display

Outdoor Waterproof Full Color Advertising P8-4s Large LED display Screen1. UL, CE&RoHS2. HD high resolution3. Uniform color, good after sale-sevice4. waterproof ip675. Warranty3-5years6.Density of pixel:15625dots/m2    Product descripition:Technical  SpecificationsNOProduct nameoutdoor SMD P8 le

Featured Products

Outdoor Waterproof Full Color Advertising P8-4s Large LED display Screen

1. UL, CE&RoHS
2. HD high resolution
3. Uniform color, good after sale-sevice
4. waterproof ip67
5. Warranty3-5years
6.Density of pixel:15625dots/m2

Outdoor Waterproof Full Color Advertising P8 Large LED Display Screen




Product descripition:
Technical  Specifications
NOProduct nameoutdoor SMD P8 led display
1Pixel Pitch(mm)8mm
2Pixel configuration1R1G1B/
3Pixel density15625dots/m2
4Brightness 6500cd/m2
5Module size(W*H)256*128mm
6Module Resolution (W*H)32 dots x 16dots
7Module weight450g
8Cabinet size (W*H)768mm×768mm
9Drive ICMBI5124
10Drive mode1/4scan
11Viewing Angle(V/H)140ºC
12Grey Scale65536 degree
13Life time>100,000 Hours (50%)
14MTBF>50,000 Hours
15Operating VoltageAC110V/220V±10%
17Screen Power ConsumptionMax: 900w/m2; Average:300w/m2
18Input Power Frequency50/60Hz
19Operating temperature -30--60ºC
20Humidity10%-95%
21Refresh Rate≥1200HZ
22Control MethodSynchronized with computer monitor
23Color Temperature6500K-9500K
24LED control systemLINSN,Nova-star,Colorlight is selectable
25Control Distance100 m (no repeating); Optical fiber transmission: 500m- 15km
26Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
27Systems Operating PlatformWindows Xp / Windows 7 / windows 8 /8.1 / windows 10

Outdoor Waterproof Full Color Advertising P8 Large LED Display Screen
Outdoor Waterproof Full Color Advertising P8 Large LED Display Screen
Outdoor Waterproof Full Color Advertising P8 Large LED Display Screen
