1.923mm small pixel pitch LED display, 800nits+ brightness, 3840Hz+ refresh rate, HD video wall
- Indoor high-definition LED video screen
- Lightweight die-casting aluminium LED cabinet
- Indoor top-level 4-in-1 SMD LED lamp
- High refresh MBI5153/CH2153 driving IC
- Advanced GOB SMD technology
- 4K, 8K resolution support easily
Silu`s P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display is designed with 4-in-1 SMD LED Lamps, it is a fine smaller pixel pitch LED video wall display product with a narrow 1.9237mm.
The 4-in-1 SMD LED lamps of P1.9mm indoor LED large video wall screen means to combine 4 LED lamps into 1 bigger LED lamp, this kind of P1.9mm small pixel pitch UHD LED display is rugged and stability, and also easy and quick to repair and replace the smaller SMD lamps when someone is not working. It is an anti-impact SMD technology to protect the LED lamps from human unintentional damage.
Our 4-in-1 P1.9mm narrow pitch indoor LED screen is a popular selling fine pitch indoor ultra high-definition visualization product for the interactive high-end market users, it is a completely seamless interactive 2k, 4k, even 8k LED video wall solution for any indoor occasions.
P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display Module Configuration
- 4-in-1 SMD LED Lamps
- 4-Layer Gold-Plated Circuit Board
- MBI5153/CH2153 High Refresh Driving ICs
- Private LED Module Frame
- Front and Back Access*
*P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display Module Pic. 01*
P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display Cabinet Configuration
- Die-casting Aluminium Lightweight LED Cabinet
- A 4:3 Ratio Rate (400x300mm) LED Cabinet Unit
- Famous Meanwell 5V40A Power Supply
- Nova or Colorlight Receiving Card* (Option)
- Signal & Power Integration Interfaces
*P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display Cabinet Pic. 01*

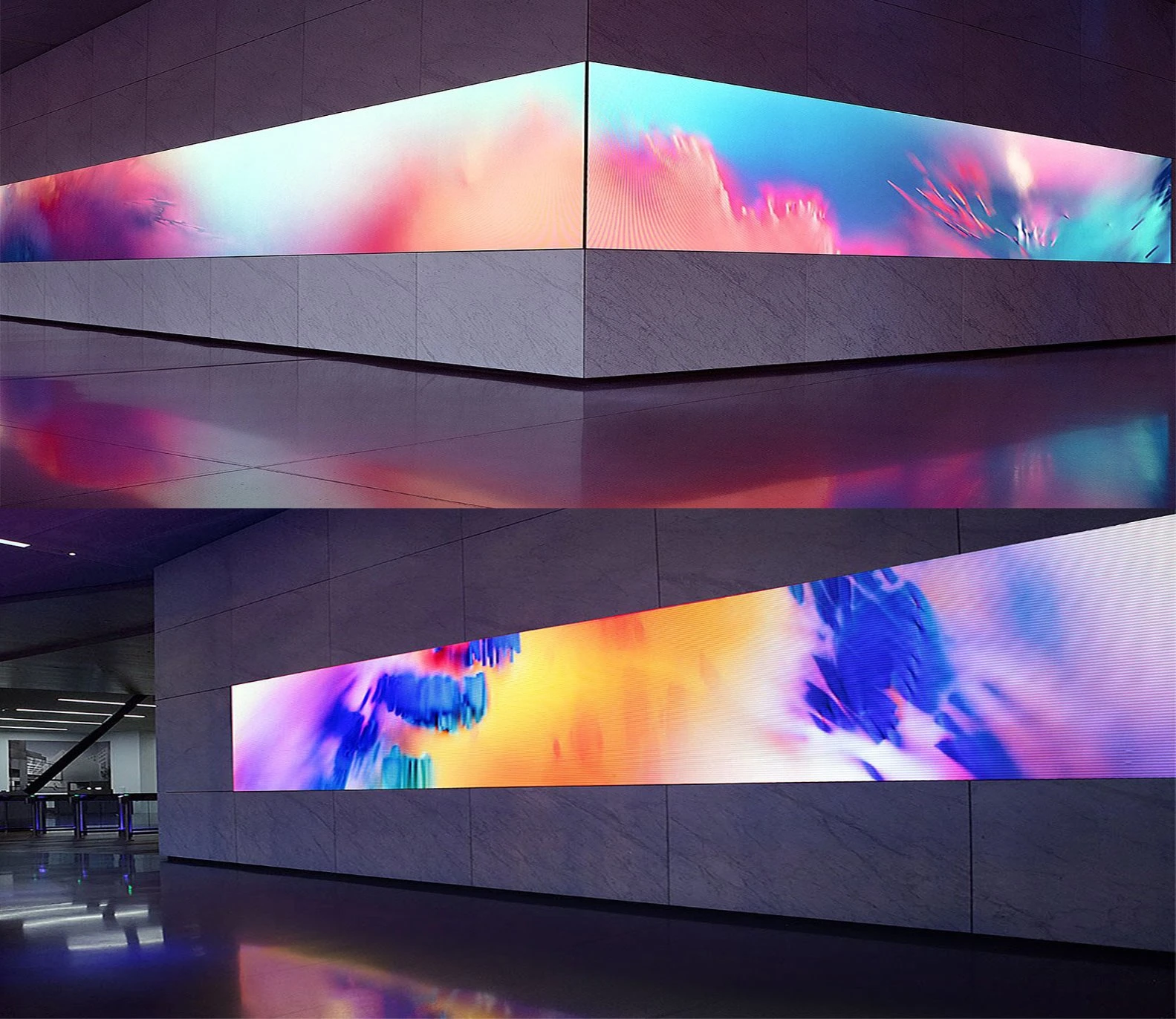

*P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display LED Video Wall Pic.02*
P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display Description
Silu`s P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display brings high-resolution images to indoor applications by providing stunning image quality with precise colours, it creates exceptional visual experiences that stay constant over time and no image tearing or video hiccups occur as the video is smoothly synchronized.
The P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display comes with a 4:3 ratio rate form factor optimized for the most popular high resolutions, ease of installation and service, and outstanding flatness and uniformity.
Professional Image with High Refresh Rate
Up to 3840Hz high refresh rate keeps it high-quality display performance even under the professional camera, no water waves or screen flashing, totally meet the live show requirement. The series is made for high-end markets with high refresh rate, excellent grey level and high contrast ratio, which ensuring to fulfil the clients` requirements on the brightness and colour uniformity and fidelity, it delivers superior image quality all times.
Low Brightness with High Gray Scale
Silu`s P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display uses high quality LED Lamps and High Return IC, goes with our patented mask and special images arithmetic processing makes a better colour rendering, colour revivification, and more details even in low brightness mode.
Excellent grayscale performance even in low-brightness of 100 cd/m².
Nanosecond Level Response Time and Long Lifespan
LED response shortly in nanosecond level without smearing or double image effect.
Silu`s P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display enjoys a long product life (100,000 hours, 8-10 years), attributed to its advanced experience in manufacturing and processing management, rich design experience in the drive circuit.
Convenient Front/Rear Installation and Maintenance
Our P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display is as quick as block-building. It can be accessed both from the front and rear installation with a cabinet thickness of only 80mm. Additionally, module, power supply, receiving card, conversion card and cables between panels can all be maintained quickly from the front without professional skills.
The P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display can be used in a variety of application occasions, for example, large venues, stadiums, banks, post and telecommunications, government agencies, terminal, docks, stations, securities market and other market transactions, medical systems, power, and the exhibition hall a need for publicity, advertising, information release guidance and other places.
Other Key Benefits
- Excellent image quality, wide viewing angles
- Lowest weight in its class
- Minimum installation costs
- Simple precision supporting steel required
- Ultimate excellent and reliability
- Rental and fixed indoor installation
- Advanced web-based setup, monitoring and control
P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display Specification
|P1.9mm UHD Indoor 4-in-1 LED Display|
|LED Brand||Nationstar or Cree* or Nichia*|
|Pixel Density||270,400 Pixels/m²|
|LED Module||200mm x 100mm (7.87" x 3.94")|
|104pixels x 52pixels|
|LED Cabinet||400mmx300mm (15.75"x11.81")|
|(208 pixels x 156 pixels)|
|Aluminum: < 6Kg(< 13.2 Lbs)|
|Working Voltage||AC220V±10%; AC110V±10%|
|Power Consumption||Average 260W/m² / Max 800W/m²|
|Maximum Brightness||> 800 cd/m²|
|Refresh Frequency||> 3840Hz/S|
|Change Frame Frequency||60Hz~ >60Hz|
|Drive Mode||1/26 Scanning|
|Total Colors||281 Trillion Colors|
|Grade Level||RGB 65536 Grade|
|Best Viewing Distance||1m~>30m (3ft~>90ft)|
|Best Viewing Angle||Horizontally 160° / Vertically 160°|
|Screen Lifetime||> 100,000 hours|
|Protection Level||Front IP43|
|Control System ¹||Simple LED Video Control System or Advanced LED Video Processor|
|Ambient Temperature||-40°C ~ 60°C (-30°F ~ 150°F)|
|Input Signal||RF S-Video RGB RGBHV YUVYC etc.|
|Brightness Adjustment||256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)|
|Package Material||Wooden Case / Flight Case|
|Warranty ³||2 Years (3 Years for Cree and Nichia)|
- WIFI/LAN/WAN/3G/WIMAX control system is available upon request.
- The intelligent multifunctional card is available with an automatic brightness sensor to save energy including an outside temperature sensor.
- Three years warranty extension program available for Fine Pixel Pitch P1.9mm 4-in-1 Indoor LED Wall Screen Video Wall Display.
