P3mm/P4mm/ P5mm/ P6mm /P7.62mm Indoor Curved Full Color LED Video Wall

V SERIES PRODUCT FEATURES: · Quiet fan design, excellent heat dissipation., · Sidelocks design for better consistency and seamless assembly.· High polymer flexible mask, no mosaic phenomenon ,better contract ratio.· High-performance metal plate cabinet, concise cable.&nbs

Featured Products

V SERIES PRODUCT FEATURES:

· Quiet fan design, excellent heat dissipation.,

· Sidelocks design for better consistency and seamless assembly.

· High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

· High-performance metal plate cabinet, concise cable.

· The sealed-type back cover, effectively prevent wrong operations from the amateur.


PRODUCT SPECIFICATIONS:

NO.ItemParameters
1ModelV03
2Pixel Pitch(mm)3
3LED Configuration1R1G1B
4LED TypeSMD2020
5Screen Resolution111111dots/sqm
6Module size(mm)192x192
7Module resolution(dots)64x64
8Scan method1/32 constant current drive
9Cabinet size(mm)576x576
10Cabinet resolution(dots)192x192
11Cabinet materialIron / Aluminum
12Brightness(cd/sqm)≥1500
13Viewing angleH:140°/ V:140°
14Grey Scale14bit
15Refresh rate(Hz)≥1920
16Ave. power consumption (W/sqm)170
17Max. power consumption(W/sqm)420
18IP gradeIP33
19controllerNovastar / Linsn
20MaintenanceRear service/ Front Service
21Color(T)>4.4
22Input Voltage(V)AC 110V-220V +/-10%
23Frame frequency(Hz)60
24Working humidity10~90%RH
25Working temperature-20ºC~50ºC
26CertificatesRoHS / CE / CCC




Our service

1. Your inquiry related to our products or price will be replied in 24hrs

2. The size can be change as you give.

3. What we show is some of our current models, welcome to give us your own ideas.

4. Protection of your sales area, ideas of design and all your private information

5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)


LED Display Panel photo:

P3mm/P4mm/ P5mm/ P6mm /P7.62mm Indoor Curved Full Color LED Video Wall


P3mm/P4mm/ P5mm/ P6mm /P7.62mm Indoor Curved Full Color LED Video Wall

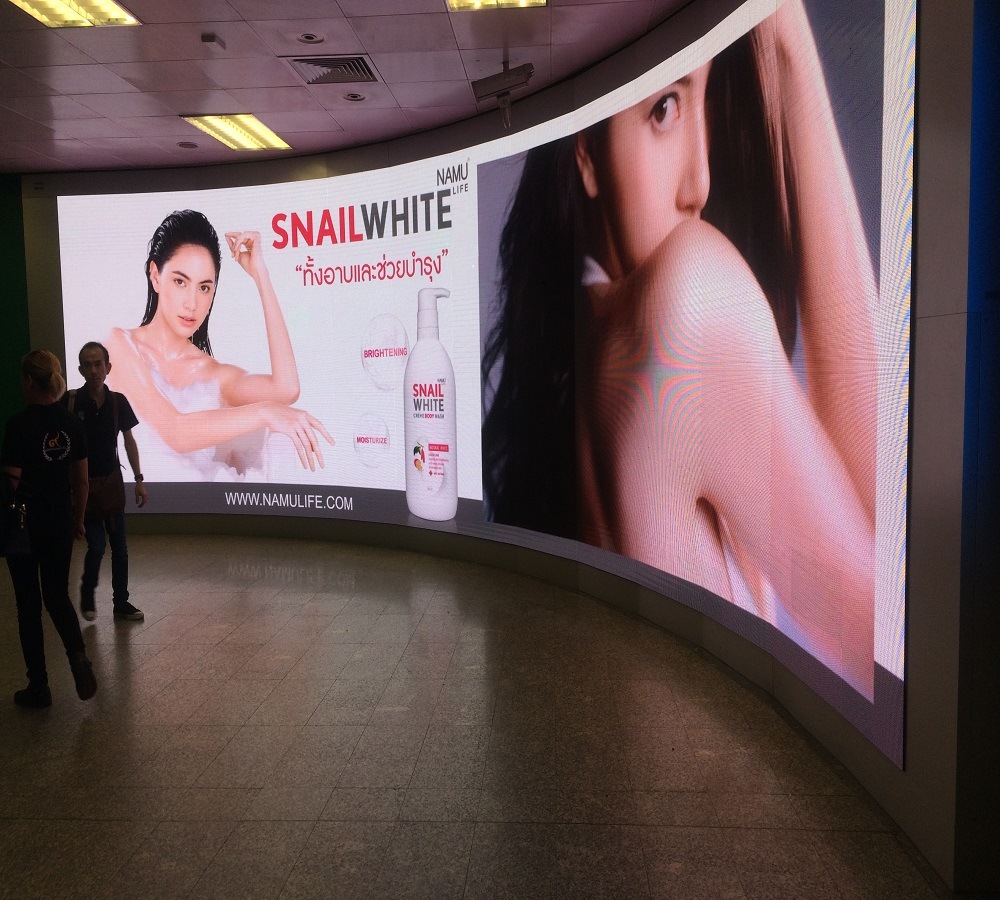

LED display Project With CKGLED Brand:

P3mm/P4mm/ P5mm/ P6mm /P7.62mm Indoor Curved Full Color LED Video Wall
P3mm/P4mm/ P5mm/ P6mm /P7.62mm Indoor Curved Full Color LED Video Wall
P3mm/P4mm/ P5mm/ P6mm /P7.62mm Indoor Curved Full Color LED Video Wall
P3mm/P4mm/ P5mm/ P6mm /P7.62mm Indoor Curved Full Color LED Video Wall


Wooden case Package:

P3mm/P4mm/ P5mm/ P6mm /P7.62mm Indoor Curved Full Color LED Video Wall


Certificates:

P3mm/P4mm/ P5mm/ P6mm /P7.62mm Indoor Curved Full Color LED Video Wall
