P3.91 P4.81 Outdoor LED Display Advertising Panel Wall Screen LED Church Screen
NO.: | Product name | P4.81 high definition led display | |||
1 | Pixel Pitch(mm) | 4.81mm | |||
2 | Pixel configuration | 1R1G1B/SMD2121 Black lamp | |||
3 | Pixel density | 43264dots/m2 | |||
4 | Brightness | 5500cd/m2 | |||
5 | Module size(W*H) | 250*250mm | |||
6 | Module Resolution (W*H) | 52 dots x 52dots | |||
7 | Module weight | 600g | |||
8 | Cabinet size (W*H) | 500*500mm or 500*1000mm | |||
9 | Drive IC | MBI5124 | |||
10 | Drive mode | 1/13 scan | |||
11 | Viewing Angle(V/H) | 140 ºC | |||
12 | Grey Scale | 65536 degree | |||
13 | Life time | >100,000 Hours (50%) | |||
14 | MTBF | >50,000 Hours | |||
15 | Operating Voltage | AC110V/220V±10% | |||
17 | Screen Power Consumption | Max: 860w/m2; Average:220w/m2 | |||
18 | Input Power Frequency | 50/60Hz | |||
19 | Operating temperature | -30--60ºC | |||
20 | Humidity | 10%-95% | |||
21 | Refresh Rate | ≥1920HZ | |||
22 | Control Method | Synchronized with computer monitor | |||
23 | Color Temperature | 6500K-9500K | |||
24 | LED control system | LINSN,Nova-star,Colorlight is selectable | |||
25 | Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km | |||
26 | Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI | |||
27 | Systems Operating Platform | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |

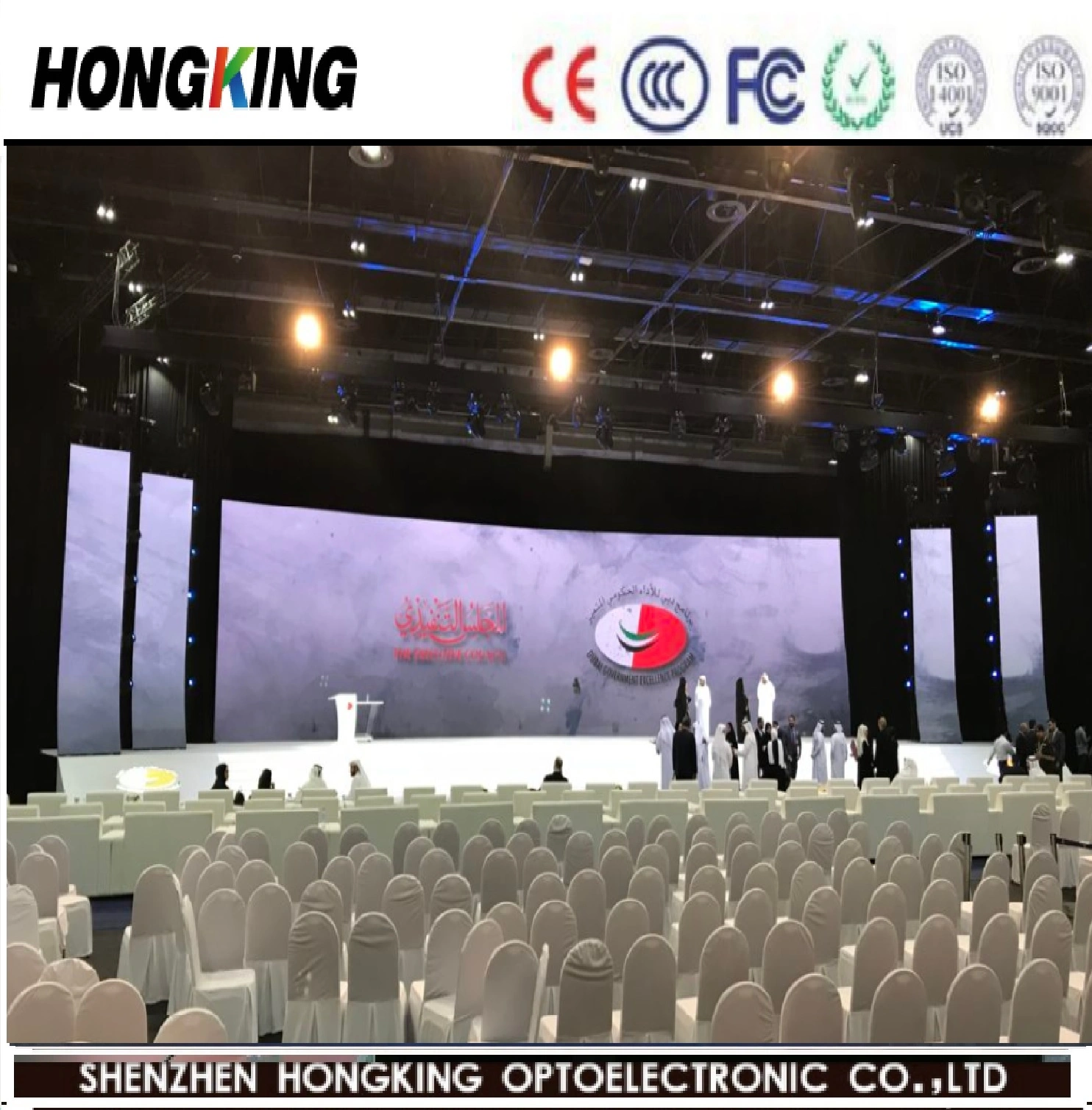

Product Application Cases:
This series Model for your choice :
Indoor model (Not waterproof) : P1.923,P2.5,P2.6, P2.84, P2.97, P3.91 (best selling), P4.81(Hot ), P5.68, P5.95,P6,P6.25
Outdoor model: P3.91 (highest resolution), P4.81 (best selling) , P5.95 (hot) , P6.25 (cost effective),P8,P10
( Outdoor model is totally waterproof LED so can be used for both indoor and outdoor events ! )
LED Control System: Novastar / Linsn / Onbon / TF / HD Card etc
LED Power Supply: Meanwell / YHY / G-Energy
LED Chips: Cree / Nichia / Epistar / Opto / Silan etc
Drive IC: MBI5024 / MBI5026 / MBI5027 / MBI5030 / MBI5031 / MBI5035 / MBI5040 / MBI5041 / MBI5042 / MBI5050 / MBI5153 etc
Why choose HONGKING?
HONGKING is a professional manufacturer of LED display screens over 10 years. We have strong R&D to ensure high end products with user-friendly design .
The prices are very competitive due to our large-scale procurement of raw material. We can help you to win more orders if you are distributors.End users will also be satisfied with our quality and price.
We have CE, FCC and Rohs certificates. Our products are exported over 85 countries .We have rich experience in handling all possible problems when you import goods from China .
We have a wide variety of products for you to choose from .All products are strictly tested before release to market and we test every LED screen 72 hours before delivery.
Our sales are well trained to offer professional advice on your specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
We offer 2-3 years warranty and life time maintenance .Even when warranty time expires , we only charge material costs.
FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A: Non-artificial damage, 3 years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
