|Type||SMD1515||Chip parameters||Red λd:(620-625nm) IV:(800-960mcd)|
|Color||1R1G1B||Chip parameters||Green λd:(520-525nm) IV:(1350-1650mcd)|
|Brand||Epister||Chip parameters||Blue λd:(470-475nm) IV:(330-400mcd)|
|Pixel Pixel||2.5 mm||Module Size||240 mmWX120 mmH|
|Module Resolution||96×48=4608(Dots)||Module Weight||0.32kg|
|LED Display Cabinet|
|Pixel Density||160000 Dots/m2||Frame Frequency||no less than 60 frame/sec|
|Cabinet Resolution||192×192=36864(Dots)||Input Voltage||AC110-220V±10%,50/60Hz|
|abinet Dimension(W*H*D)||480x 480 x 80mm||Output Voltage||DC-5V,40A/60A/80A|
|Module Quanty /Cabinet||8 pcs = 2 (w) x 4(h)||Grey Scale Levels||16bit|
|Cabinets Material||Die-casting Alminum Cabinet||Color Processing||R(1024)×G(1024)×B(1024)|
|Cabinet Weight||9 kg||Brightness Adjustment||256 color levels|
|Brightness||≥1000 nits||MTBF( mean time between failures)||5000 hours|
|Viewing Angle||Horizontal 140°, Vertical 110°||Life-span||100,000 hours|
|Nearest Viewing Distance||3 meter||Protection Level(front/back)||IP45|
|Power Consumption (Max)||800 w/m2||Malfunction Dot Rate||less than 0.0001|
|Power Consumption (Average)||200 w/m2||Working Temperature||-30ºC~50ºC|
|Refresh Rate||≥2000Hz||Scan Mode||1/32|
|Control Mode||Synchronization/Asynchronization||Control System||Sending Card, Receiving Card,Receiving HUB|
|PC Operating System||Microsoft Windows 7, XP and Vista||Software||ED Studio Nova/Linsin|
|Communication Type||Net cable,3G,WIFI(Sold separately)||Control Card Input||DVI,USB,RJ45,HDMI(Sold separately)|
Why choose LED Curved Display?
1. The flexible LED module is an innovative design of high-end technology, which saves costs and is widely applicable to irregular shapes such as circles and columns. Can make any surface, suitable for artistic modeling, personalized stage design, exhibition hall, indoor conference room, etc.
2. Flexible LED module adopts modular design and magnetic design, which is more reliable, stable and convenient for front desk maintenance. High grayscale, high refresh rate, no image delay, ghosting.
3. Flexible LED module is one of the innovative ultra-thin products. It completely breaks through traditional heavy cabinets and can be used in any complex installation environment.
4. The flexibility of the flexible LED module allows bending in any way. It can create a curved, cylindrical, wavy 360 ° circle or any other shape, and designers can imagine flexible LED modules that are more customizable and creative designs than traditional projects.
With good flexibility, it can be bent and fun in the form of fast power and data connectors for your custom solutions. By connecting modules in a fixed frame or cabinet with flexible modules, you can easily reach different shape LED display.
1.Seamless splicing of LED display: Adopt trapezoidal circuit design to achieve seamless splicing;
2. LED display is evenly drawn: Supports the technology of evenly drawn, the display is not distorted;
3. Flexible LED display control: compatible with asynchronous, support offline and online modes;
4. LED display has good heat dissipation performance: adopt aluminum structural cooling solution;
5. LED display is easy to install: As a complete system, it supports floor installation, hoisting, embedded installation, etc.
6.LED display is easy to maintain: support front maintenance and post maintenance;

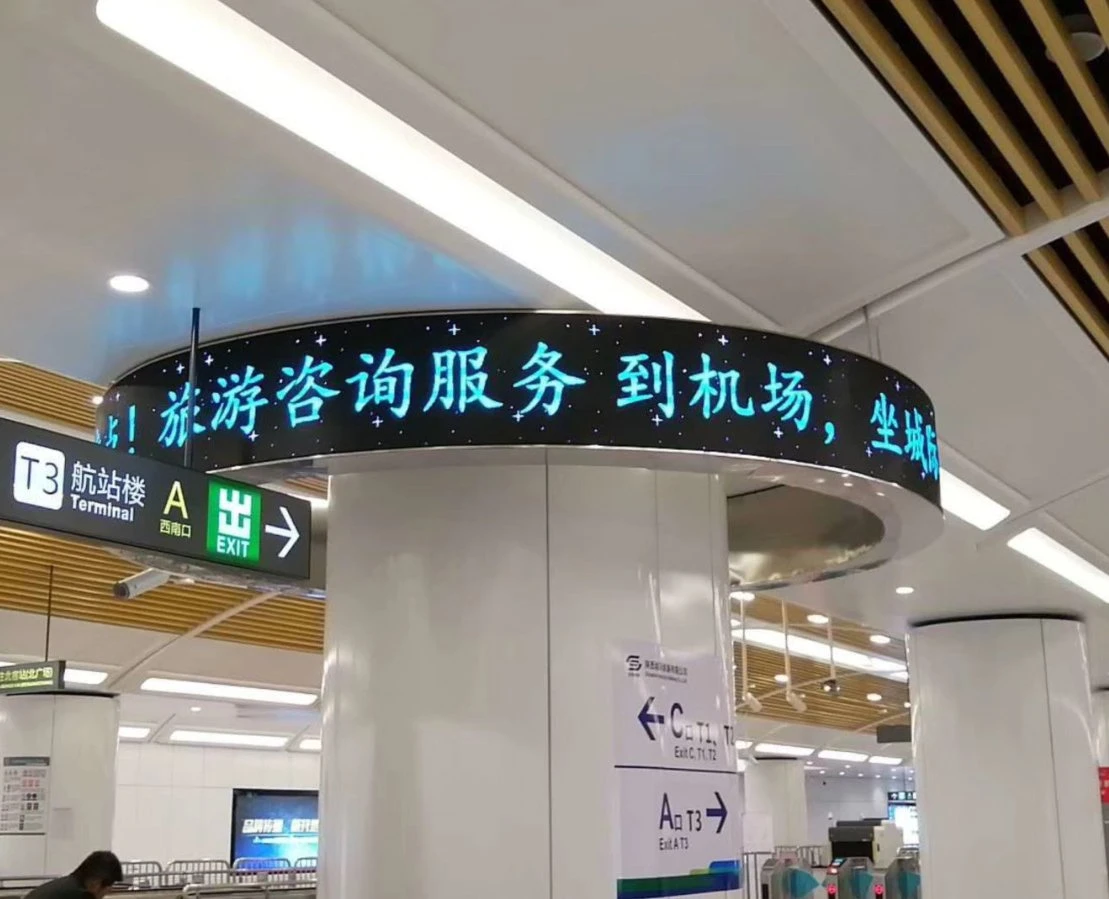

Widely used in museums, planetariums, science and technology museums, children's palaces, exhibition halls, gymnasiums, waiting halls, star hotels, large open spaces, railway stations, ports, shopping malls, bars and other places.
JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.
The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines
Packing and Shipping:
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 7-15 working days after confirm receipt payment in advance.
Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.
Q1. Can I have a sample order for led Screen?
A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.
Q2. What about the lead time?
A:About 7~10 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for led Screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display,
LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs
