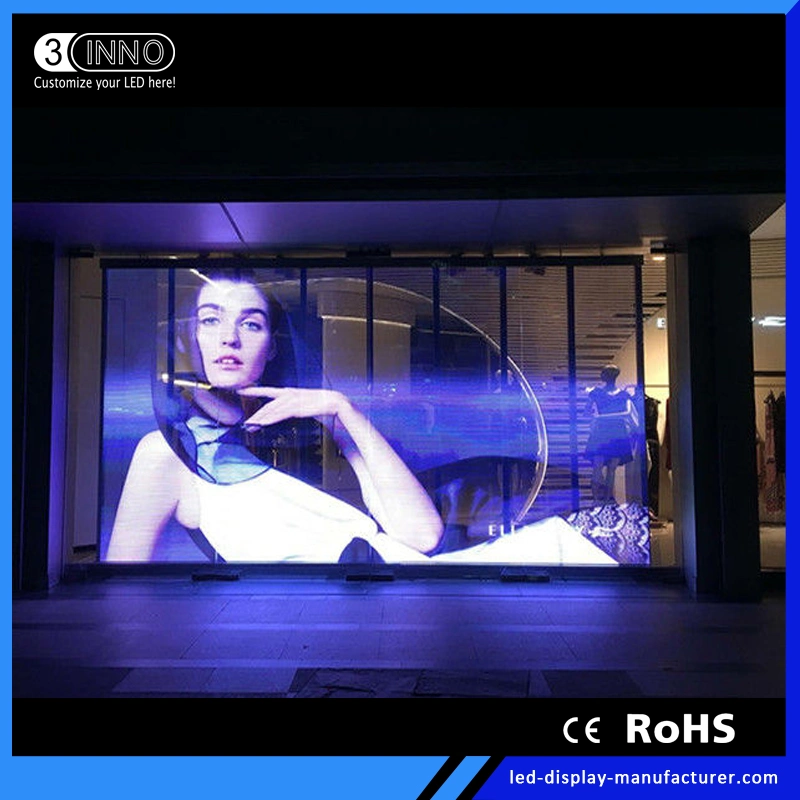

Transparent LED Display is no doubt the best choice as windows ads player, without sacrifice ventilate and natural light with the 48%~85% transparency, you won't miss any view from it. Transparent LED Display is ultra slim and thin, easy for installation and transportation, time and labor efficient. The quick lock system of Transparent LED Display secured quick and fast connection. Integrated power and data cables save lots of trouble when installing Transparent LED Display and make it looks tidy and elegant. Transparent LED Display can only be installed indoors, but also viewable from outside of the building, high brightness and high definition making a stunning effect of your ads to passers.
Transparent LED Display possesses transparent and modern product aesthetics which can benefit to installation over windows, glass façade and for creative event production as well. It is lightweight and ultrathin, making deployment a breeze. High transparency guarantees natural view behind the screen while delivering clear and crisp contents viewable for both day and night.
PRODUCT DESCRIPTION
High brightness: 5000nit
2. Smart control/Simple
Simple: Plug & Play
3. High refresh rate/High contrast ratio
High contrast ratio: 1500:1
4. Wider viewing angle/Excellent color reproduction degree
Excellent color reproduction degree
5. Hanging Installation
With slim and lightweight design, hanging and stacking glass panels takes no added effort.
6. Quick Lock System
Quick lock system secures the vertical connection between each panel.
OPTICAL | Pixel Pitch | mm | 3.9*7.8 |
Brightness (Adjustment) | cd/m² | 5000 | |
LED Encapsulation | - | SMD3in1 | |
Cabinet Resolution(W*H) | pixels | 128*128 | |
Pixel Density | dots/sqm | 32,768 | |
Viewing Angle(H/V) | degree | 160 | |
Transparent Rate | - | 82% | |
Grey Scale | - | 14bit | |
ELECTRICAL | Frame Frequency | Hz/s | 60 |
Refresh Rate | Hz | 3840 | |
Contrast Ratio | - | 1500:1 | |
Max Power Consumption | W/m² | 1000 | |
Ave Power Consumption | W/m² | 300 | |
Working Voltage | AC | AC100V-240V | |
Drive Voltage | DC | 5V | |
Working Temperature | ºC | -20-50 | |
Driving Method | - | 1/4Scan | |
MECHANICAL | Cabinet Size | mm | 500*1000 |
Net Weight | kg/pcs | 17 | |
Weight Per Tile | lbs | 37.51 | |
IP Rating | - | IP42 | |
Lifetime | hours | 100,000 | |
Service Access | - | Back | |
Application | - | Indoor |
