|Type||SMD2121||Chip parameters||Red λd:(620-625nm) IV:(800-960mcd)|
|Color||1R1G1B||Chip parameters||Green λd:(520-525nm) IV:(1350-1650mcd)|
|Brand||Epister||Chip parameters||Blue λd:(470-475nm) IV:(330-400mcd)|
|Pixel Pixel||3.91-7.81 mm||Module Size||500 mmWX250 mmH|
|Module Resolution||128×64=8192(Dots)||Module Weight||1kg|
|LED Display Cabinet|
|Pixel Density||65536 Dots/m2||Frame Frequency||no less than 60 frame/sec|
|Cabinet Resolution||256×128=32768(Dots)||Input Voltage||AC110-220V±10%,50/60Hz|
|abinet Dimension(W*H*D)||1000x 500 x 80mm||Output Voltage||DC-5V,40A/60A/80A|
|Module Quanty /Cabinet||4 pcs = 2 (w) x 2(h)||Grey Scale Levels||16bit|
|Cabinets Material||Die-casting Alminum Cabinet||Color Processing||R(1024)×G(1024)×B(1024)|
|Cabinet Weight||10 kg||Brightness Adjustment||256 color levels|
|Brightness||≥4000 nits||MTBF( mean time between failures)||5000 hours|
|Viewing Angle||Horizontal 140°, Vertical 140°||Life-span||100,000 hours|
|Nearest Viewing Distance||3 meter||Protection Level(front/back)||IP45|
|Power Consumption (Max)||900 w/m2||Malfunction Dot Rate||less than 0.0001|
|Power Consumption (Average)||300 w/m2||Working Temperature||-30ºC~50ºC|
|Refresh Rate||≥2000Hz||Scan Mode||1/16|
|Control Mode||Synchronization/Asynchronization||Control System||Sending Card, Receiving Card,Receiving HUB|
|PC Operating System||Microsoft Windows 7, XP and Vista||Software||ED Studio Nova/Linsin|
|Communication Type||Net cable,3G,WIFI(Sold separately)||Control Card Input||DVI,USB,RJ45,HDMI(Sold separately)|
What is a transparent LED display?

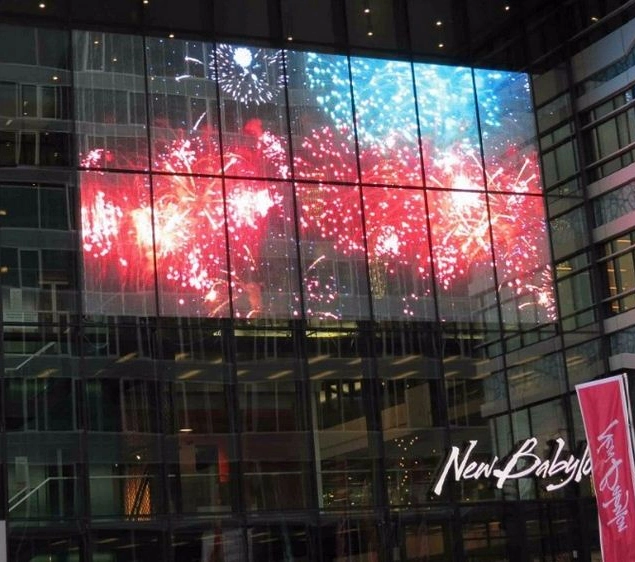

It is a new type of LED strip product innovation technology. The new production process of SMT, combined with the new design of high-transparency structural design, reduces the area of line of sight blocking and maximizes the effect of high transparency. Unique display effect, when the audience is standing at the correct distance, the image is displayed on a glass window. The application of transparent LED display has been extended to large glass buildings and commercial glass windows, and the market is large, becoming a new trend in the development of new media. This new high-transparency LED display technology has the advantages of 70-95% transparency and 1.0mm PCB thickness. The product can be easily installed behind glass windows, and the panel size can be customized without affecting the indoor lighting rate. Easy to install and maintain.
(1). The high light transmittance is as high as 70-95%, which ensures the indoor illumination from the LED display and glass windows.
(2). Super small thickness and light weight. The panel thickness is less than 10 cm, and the weight is less than 15 kg per square meter, without changing the building structure. Can be fixed to glass windows or suspended from the ceiling.Cabinet:
(3) No sub-steel structure is needed, saving a lot of installation and maintenance costs.
(4). Perfect advertising effect, full of artistic feeling, the video is like flying on glass.
(5). Compared with the screen installed outdoors, it is easy to maintain, fast and safe
(6) Power saving Compared with ordinary LED display screens, no additional cooling system is needed, and the power saving rate reaches more than 30%, which has a good environmental protection effect.
(7) High brightness, more than 3600 nm, can use day and night time.
JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.
The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines
Packing and Shipping:
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 7-15 working days after confirm receipt payment in advance.
Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.
Q1. Can I have a sample order for led Screen?
A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.
Q2. What about the lead time?
A:About 7~10 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for led Screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
