P3.91 indoor rental stage church advertising led display screen
Specification
Detailed photos
Project case
PRODUCT FEATURES:
1.100% full front service: quick maintenance during events.
2.High screen refresh rate at 3840Hz to guarantee no scanning lines in photos/videos.
3.Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.
4.Easy and quick assembly: fast assembly and dismantle design to save labor force and time.
5.High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
1.100% full front service: quick maintenance during events.
2.High screen refresh rate at 3840Hz to guarantee no scanning lines in photos/videos.
3.Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.
4.Easy and quick assembly: fast assembly and dismantle design to save labor force and time.
5.High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
Specification
| NO. | Parameter | Specifications |
| 1 | Model | R3 |
| 2 | Pixel Pitch(mm) | 3.91 |
| 3 | LED encapsulation | SMD2020 |
| 4 | Screen Resolution(dots/m²) | 65536 |
| 5 | Scan Method | 1/16 |
| 6 | Module size(mm) | 250X250 |
| 7 | Cabinet size(L*W*H) | 500X500X88 |
| 8 | Maintenance | Front Service |
| 8 | Cabinet(Kg) | 6.8KG |
| 9 | Viewing angle | H:140° V:140° |
| 10 | Grey Scale | 14bit |
| 11 | Refresh rate(HZ) | 1920 |
| 12 | Brightness(nits) | ≥1500 |
| 13 | Working Voltage(V) | AC 100~240V |
| 14 | AVE. power consumption (W/m²) | 200 |
| 15 | MAX. power consumption(W/m²) | 600 |
| 16 | IP grade | IP40 |
| 17 | controller | Nova |
| 18 | Working humidity | 10~90%RH |
| 20 | Working temperature | -30ºC~60ºC |
| 21 | Storage temperature | -40ºC~70ºC |
Detailed photos

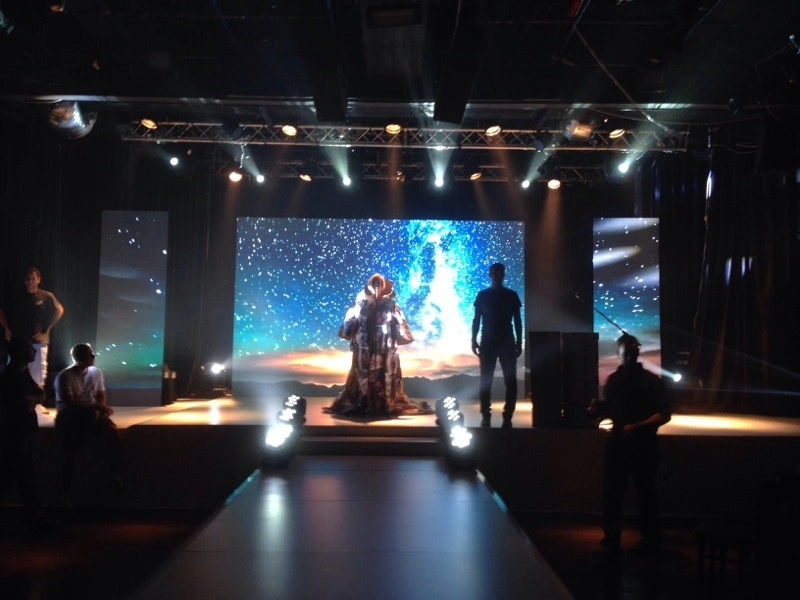

Project case
CKGLED's product quality management is strictly adhering to the ISO9001: 2008 certifications system and 7S management standards. Thanks to those efforts, our products have passed certificates of CE, RoHS, CCC, FCC, ETL etc.With an outstanding business performance and good social reputation, CKGLED's led displays have been sold all over the world both in and out of China to America, Germany, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Brazil, Spain, Thailand, Dubai, India etc.more than 50different countries.
