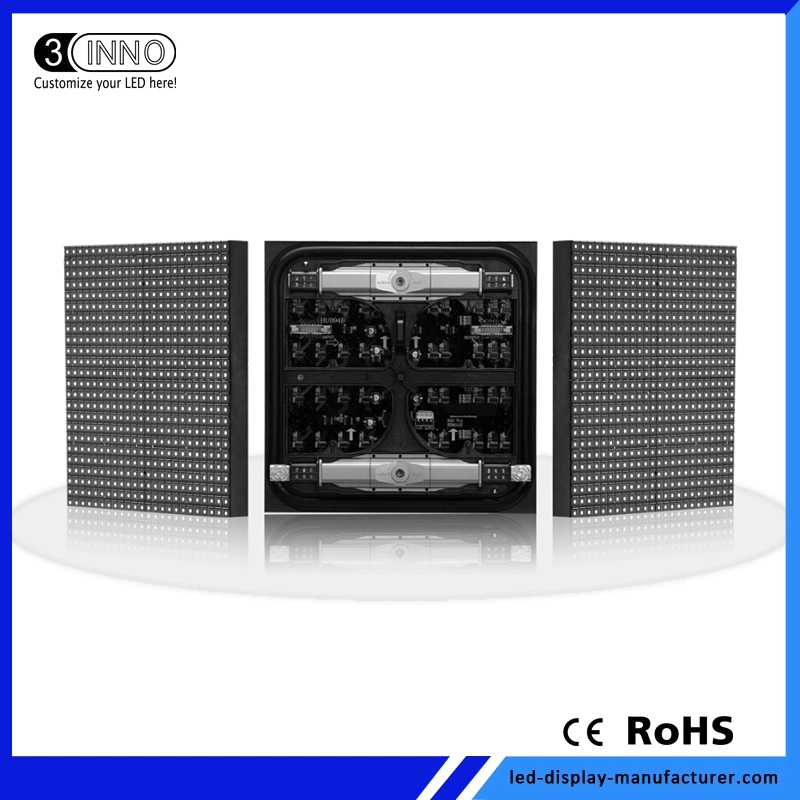

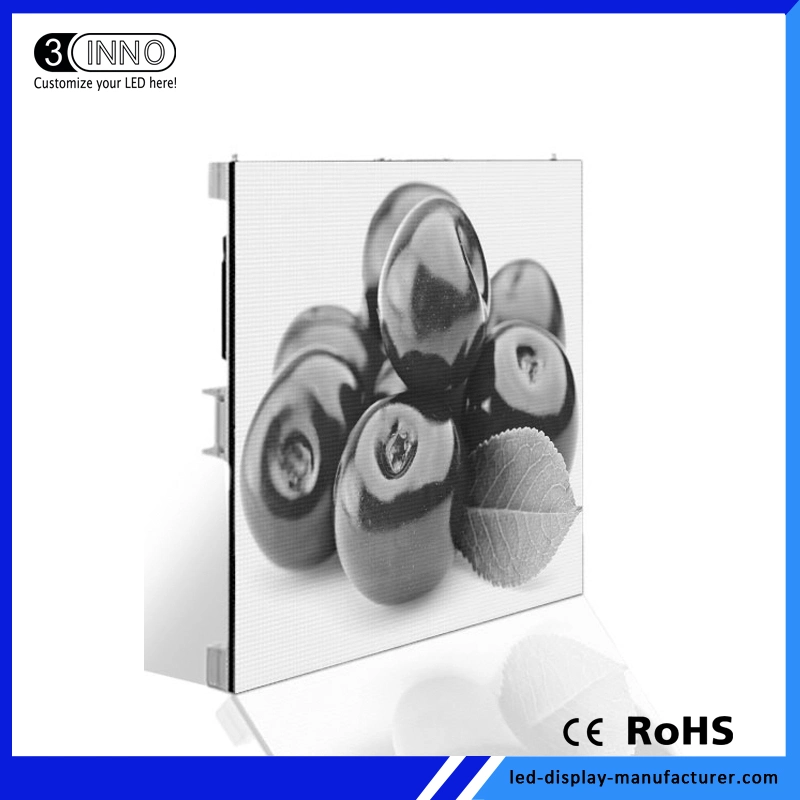

P3.91mm High Definition Waterproof LED Advertising Board LED Display
PRODUCT DESCRIPTION
PRODUCT PROCESS
CERTIFICATE
PRODUCT DESCRIPTION
1.Lighter and Thinner
Decrease the transportation and labor cost.
2.Curve-Shaped Assembling Optional
Can be shaped into curved screen and 10 degree plus
or minus tolerance for both external arc and internal arc.
3.Fast Assembling
The side-lock assures the cabinet joint within 8 seconds.
4.Mistake Tracking System
Visible mistake tracking function.
SPECIFICATIONDecrease the transportation and labor cost.
2.Curve-Shaped Assembling Optional
Can be shaped into curved screen and 10 degree plus
or minus tolerance for both external arc and internal arc.
3.Fast Assembling
The side-lock assures the cabinet joint within 8 seconds.
4.Mistake Tracking System
Visible mistake tracking function.
| OPTICAL | Pixel Pitch | mm | 3.91mm |
| LED No. Per Pixel | pcs/pixel | 1 | |
| Brightness(Adjustment) | cd/m² | 4500 | |
| LED Encapsulation | - | SMD1921 | |
| Cabinet Resolution | dots | 128*144 | |
| Pixel Density | dots/sqm | 65,025 | |
| Viewing Angle(H/V) | degree | H160/V130 | |
| Color Depth/Number | bit | 16bit | |
| Grey Scale | - | 16bit | |
| ELECTRICAL | Frame Frequency | Hz/s | 50/60 |
| Refresh Rate | Hz | 3840 | |
| Contrast Ratio | - | 3800:1 | |
| Max Power Consumption | W/m² | 172 | |
| Ave Power Consumption | W/m² | 57 | |
| Working Voltage | AC | 100-240 | |
| Drive Voltage | DC | 5V | |
| Working Temperature | ºC | -20-40ºC | |
| Humidity | - | 10%-90%RH | |
| Driving Method | - | 1/8scan | |
| MECHANICAL | Frame Material | - | magnesium casting |
| Panel Weight | kg/pcs | 9 | |
| Weight Per Tile | lbs | 19.86 | |
| Panel Size | mm | 500*562.5*94 | |
| IP Rating(Front/Rear) | - | IP65/IP54 | |
| Lifetime | hours | 50,000 | |
| Application | - | outdoor |
