P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign

Part 1: Product Mainly features

P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign is very hot sale for outdoor media solution, it is new advertising media in 21rt century with high brightness and attractive image, waterproof, and high efficient in profit control, HD resolution such as P3 and P4 outdoor.

Pixel Pitch3mm to 5mm
Brightness>5500nits
Cabinet size960x960mm(optional)
Max. Power consumption720W/panel
LED BrandEpistar
Driver ICConstent current
PSUMW
Refresh rate> 1920HZ

P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign



Part 2: Outdoor led display board detail images
P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign




Part3: Material Quality Level

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.
P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign

P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign


Part 4: Technical Specification.

Item

P3 P4 P5 Indoor Outdoor LED Display screen Board for signature billboard Advertising

Model Number

P3mm to P5mm

Pixel Pitch

3mm, 4mm, 5mm

Pixel Density(pixels/M2)

40000 to 111111 pixels

Pixel Configuration

1G1B1B

LED Type

Epistar, SMD

Module size(mm)

192x192mm

Module Resolution(pixels)

64*64 pixels

Min.Viewing Distance(m)

3meters

Brightness(nits)

>5500

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

Constant current

Protection Level

IP65/IP43

Cabinet Size(mm)

960x960mm



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

> 1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization



Part 5: Installation methods, outdoor led display board available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.
P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign
P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign



Part6: Packing information by plywood cases, packing well and easy to load,
P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign

Part7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign

Part8: About LEDventure.

P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign

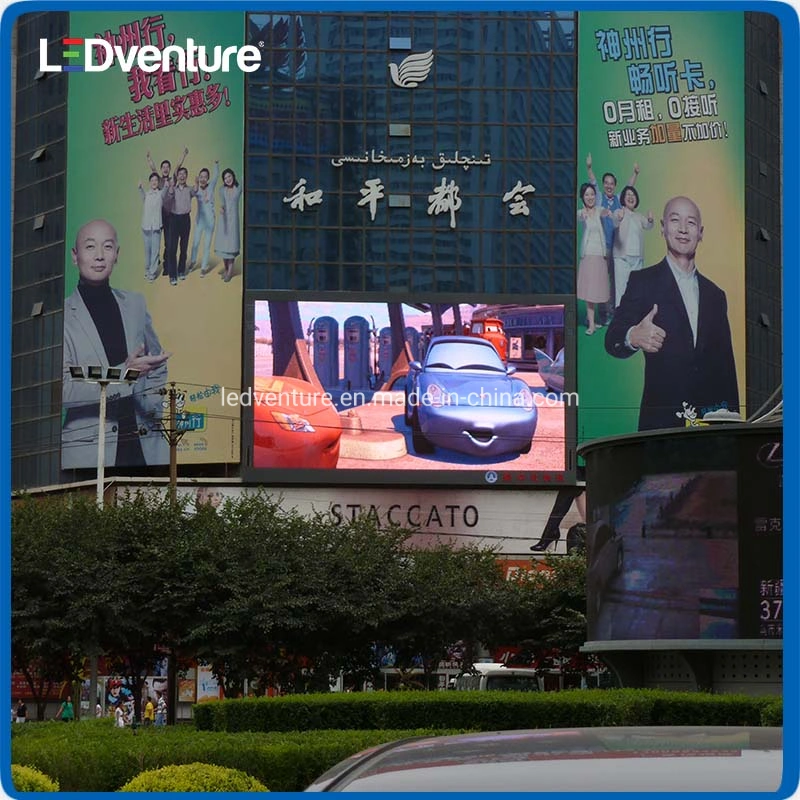

Part9 : LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia,
P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign
P3 P4 Full Color Indoor Outdoor LED Panel Advertising Sign
