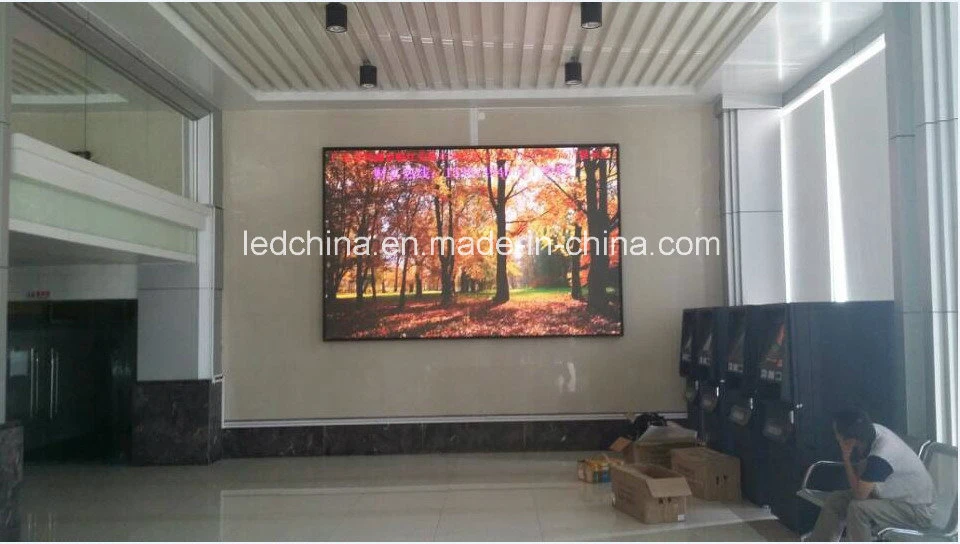

P4 Indoor Full Video LED Wall
Features:
1) Relatively low cost
2) Relatively stable capability
3) High brightness, high definition of displaying image, fresh and beautiful color
Features:
1) Relatively low cost
2) Relatively stable capability
3) High brightness, high definition of displaying image, fresh and beautiful color
| P4 Indoor Full Video LED Wall | ||||||||
| S/N | Item | Technical Parameters | ||||||
| LED Parameters | ||||||||
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle | |||
| 2 | Red LED | SMD2121 | 120-140mcd | 620-625nm | 140º/60º | |||
| 3 | Green LED | SMD2121 | 360-435mcd | 520-525nm | 140º/60º | |||
| 4 | Blue LED | SMD2121 | 80-100mcd | 470-475nm | 140º/60º | |||
| Module Specifications | ||||||||
| 1 | Pixel Pitch | 4mm | ||||||
| 2 | Pixel Configuration | SMD3in1 | ||||||
| 3 | Module Resolution | 32 x 32 pixels | ||||||
| 4 | Module Pixles | 1024 pixels | ||||||
| 5 | Module Size | 128mm X 128mm | ||||||
| Cabinet Specifications | ||||||||
| 1 | Cabinet Size(W X H X D) | 512mm x 512mm x 110mm | ||||||
| 2 | Cabinet Resolution(dot) | 128 x 128 pixels | ||||||
| 3 | Module Quanity (pcs) | 16pcs | ||||||
| 4 | Cabinet Pixels | 16384 pixels | ||||||
| 5 | Pixel Density | 62500 pixels/m2 | ||||||
| 6 | Cabinet Materials | Standard cabinets for fix installation | ||||||
| Whole Screen Specifications | ||||||||
| 1 | Screen Brightness | ≥1800cd/m2 | ||||||
| 2 | Driving Method | 1/16 scan | ||||||
| 3 | Mini Viewing Distance | 4m | ||||||
| 4 | Max. Power Consumption | 1054W/m2 | ||||||
| 5 | Average Power Consumption | 420W/m2 | ||||||
| 6 | Gray Level | 8bits input, 4096 levels(212) | ||||||
| 7 | Display Color | 16M | ||||||
| 8 | Frame Frequency | ≥60Hz | ||||||
| 9 | Refresh Frequency | ≥600Hz | ||||||
| 10 | Uninterrupted Working Hours | ≥72 hours | ||||||
| 11 | Screen Life-span | ≥50,000 hours | ||||||
| 12 | MTBF | ≥5,000 hours | ||||||
| 13 | Discrete Blind Spot Rate | <1/10000 | ||||||
| 14 | Continuous Blind Spot Rate | None | ||||||
| 15 | Blind Spot Rate | <1/10000 | ||||||
| 16 | Screen Plainness | <±1mm | ||||||
| 17 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | ||||||
| 18 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius Humidity:10%~90% RH | ||||||
| 19 | Control Mode | Synchronous display with control PC by DVI | ||||||
| 20 | Control System | DVI video card + full color control card + fiber system( optional) | ||||||
| 21 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | ||||||
| 22 | Interface | Standard Ethernet | ||||||
| 23 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m | ||||||
