Ultra-thin rental LED display/indoor LED video wall screen (P2.5 board)

ParametersLED LampTypeSMD2121 black bodyBrandEpistarArrangement1R1G1BChip parametersRed (625-630nm) IV:(65-115mcd)Chip parametersGreen (523-526nm) IV:(215-265mcd)Chip parametersBlue (470-473nm) IV:(33-83mcd)LED ModulePixel Pitch2.5mmModule Size160×160mmModule Resolution64×64=4096(Dots)Module Weight0.48kgLED CabinetPi

Featured Products

LED Lamp
TypeSMD2121 black body
Chip parametersRed (625-630nm) IV:(65-115mcd)
Chip parametersGreen (523-526nm) IV:(215-265mcd)
Chip parametersBlue (470-473nm) IV:(33-83mcd)
LED Module
Pixel Pitch2.5mm
Module Size160×160mm
Module Resolution64×64=4096(Dots)
Module Weight0.48kg
LED Cabinet
Pixel Density160000 Dots/sqm
Frame Frequencyno less than 60 frame/sec
Cabinet Resolution256×256=65536(Dots)
Input VoltageAC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D)640×640×95mm
Output VoltageDC-5V, 40A/60A/80A
Module Quanty /Cabinet4×4=16(Pcs)
Color Grayscale16bit
Gray Scale per Color65536 level
Cabinets MaterialAluminum-magnesium alloy Cabinet
Color ProcessingR(1024)×G(1024)×B(1024)
Cabinet Weight13kg
Brightness Adjustment256 color levels, can be adjusted manually and automatically optional
MTBF( mean time between failures)5000 hours
Viewing Angle140(Horizontal), 140(Vertical)
Life-span100, 000 hours
Nearest Viewing Distance5m
Protection Level(front/back)IP31/IP54
Power Consumption (Max)1300 w/sqm
Malfunction Dot Rateless than 0.0001
Power Consumption (Average)400 w/sqm
Working Temperature-15oC-50oC
Display FunctionText, Graphics, Video
Refresh Rate>800Hz
Drive Mode/Driver PositionConstant driving 1/32 Scan, Combined diver board
Control System
Control ModeSynchronization/Asynchronization
Input SignalAVI/MPG/MPEG/TXT.etc
Control SystemSending Card, Receiving Card, Receiving HUB
PC Operating SystemMicrosoft Windows 10 , Windows 7 and XP
SoftwareLED Studio(FWS-linsn)
Communication TypeNet cable; 3G, WIFI(Sold separately)
LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
CertificateCE, ROHS, FCC, ISO9001, TUV
Control Card InputDVI, USB, RJ45, HDMI(Sold separately)
LED Module &  Aluminum cabinet

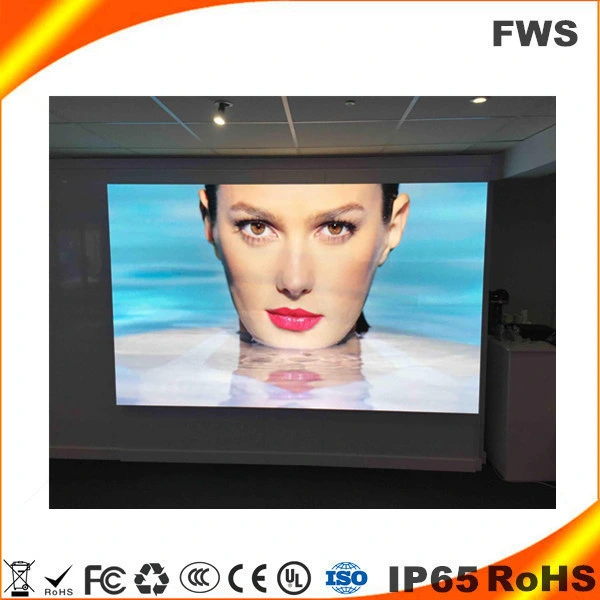

Slim Rental LED Display/Indoor LED Video Wall Screen (P2.5 board)
  PH2.5 Indoor Rental LED Display offers stunning definition, contrast and color reproduction that present crystal-clear pictures in every condition.
  The displays are widely used for bank, stage, concert, hotel, station, summit, exhibition and theater etc.
  The Seamless Splice Screen has remained the hottest product in 2015 loved by thousands of people.
  The quick-lock feature requires no technical skills to install and uninstall.f
  Chips are purchased from big brands like Cree (USA), Nichia (Japan), Opto (Taiwan).
  The Seamless Splice Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate.
   You may use it at indoor areas like exhibition, school, malls, stages, stadium and at many more indoor places.
   The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic.
