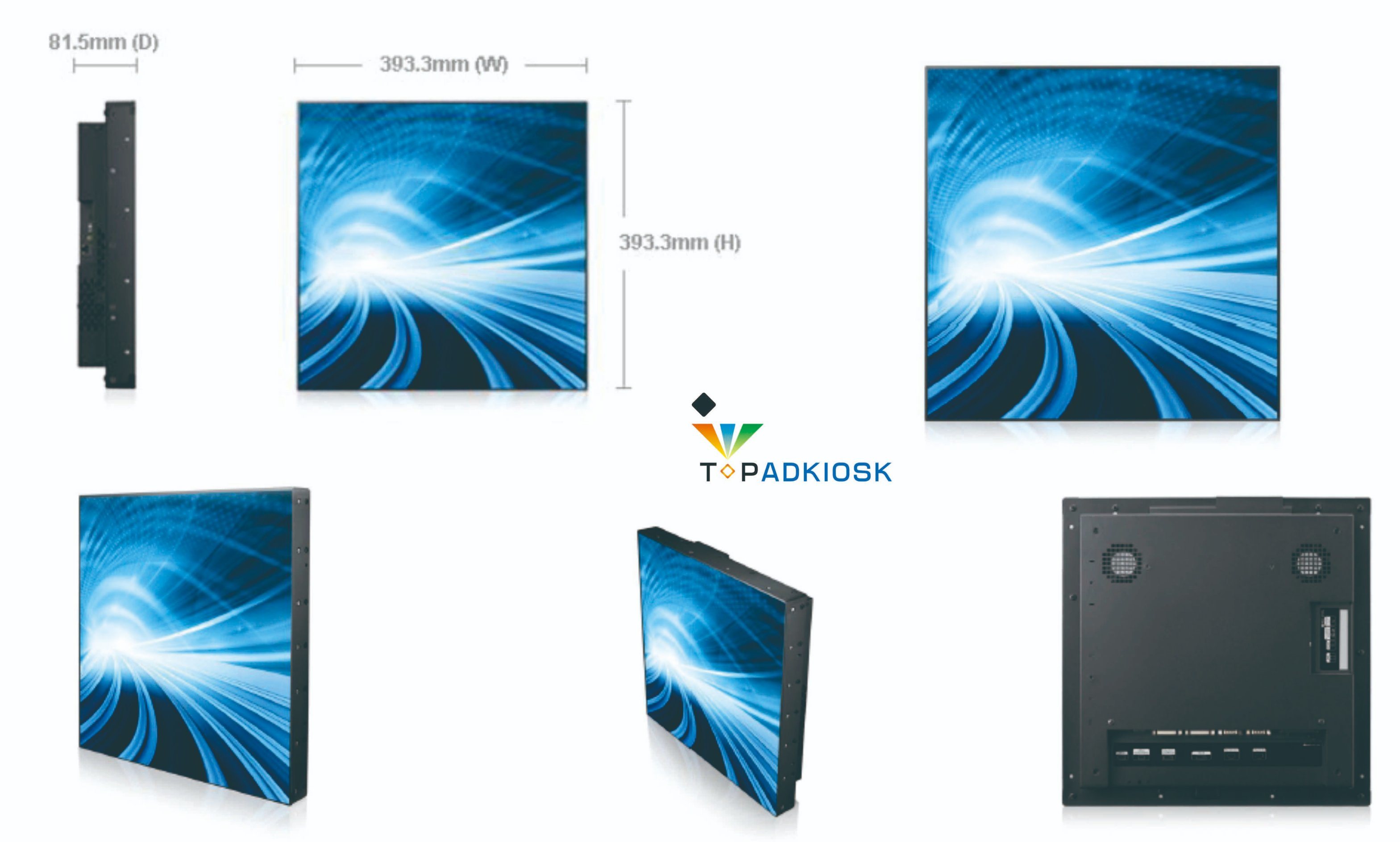

square LCD video wall narrow bezel Mosaic Video Tiles lcd video wall
Product Description
Shenzhen TOPADKIOSK is highly specialized in the field of LCD Digital Signage products, LCD DISPLAY, QLED display, OLED display. We have developed our own LCD products Series, such as digital signage, all In One PC, touch screen, lcd video wall, outdoor IP67 High Brightness LCD Digital Signage and TV, etc, the size is available with 7" Inch to 98 Inch etc. These products have been widely used in the USA, Europe, Southeast Asia, the Middle East, Africa and other countries and regions. These products are suitable for advertising in lots of areas, such as buildings, shops, hotels, supermarkets, railway stations, bus stations, airports, taxis, buses and other outdoor areas. Quality and Service is Our Symbol.The most important factor for us to win our customers' hearts and found the long-term business relationships with our customers is quality and service. With these years' research, development and manufacture, we have accumulated our special experience and methods to control the quality through the whole process of designing, material purchasing, manufacturing and marketing. Especially for the material quality, we have founded firm relationships with our suppliers and even invested in some supply companies to directly control quality. We offer 7*24 hours service to all our clients. Our sales person and after-selfteam will keep on line to answer and solve all questions for you. Providing services beyond our customers' expectations is our purpose. Our excellent pre-sales services and after-sales services have earned us many customers' hearts. Customized designs are most welcome!
Our advantage is to give solution to our clients according to their needs.
Product Description
Product Description for Top Adkiosk original Korea 46 inch super narrow bezel lcd video wall with video wall controller
LCD Video Wall Screen (SAMSUNG DID) | ||||||||
Specifications | ||||||||
Model No. | TPK-VW4601 | |||||||
Panel Size | 46'' Samsung DID LCD Screen(super narrow bezel 5.3mm) | |||||||
Aspect Ratio | 16:9 | |||||||
Max Resolution Support | 1920x1080/1366x768 | |||||||
Color | 8Bit,16.7M | |||||||
Brightness (nits) | 450 | |||||||
Contrast | 4000:1 | |||||||
Visual Angle (H/V) | 178° | |||||||
Response Time | <=6ms | |||||||
Life(hrs) | >60,000(hrs) | |||||||
Input and output | ||||||||
DVI | 1 | |||||||
HDMI | 1 | |||||||
D-15 RGB Input(VGA) | 1 | |||||||
YUV/YPbPR | 1(3xBNC) | |||||||
S-(YC) | 1(2xBNC) | |||||||
Composite Video Input/(AV) | 3(3xBNC) | |||||||
Composite Video Output | 2(2xBNC) | |||||||
AUDIO INPUT | 1 | |||||||
Split Screen | Support Picture in Picture(PIP/POP/PAP) | |||||||
Power | ||||||||
Power Supply | AC100V~240V | |||||||
Maximum Power Consumption | 250W | |||||||
Standby Power Consumption | <=3W | |||||||
Temperature | ||||||||
Working Temperature | 0°C~50°C | |||||||
Working Humidity | 20%-80% | |||||||
Dimension | 1025.65x579.84x126.73mm | |||||||
Video Wall Controller(Built-in each Screen) | ||||||||
Model No. | US-P816A | |||||||
Input | CVBS | 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs | ||||||
VGA | 1*D15 port, support SVGA/XGA/WXGA | |||||||
YPbPr/YCbCr | 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV | |||||||
Y/C | 2*BNC inputs, support PAL/NTSC all formats | |||||||
Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display | ||||||
Operate mode | Panel key operation(needs customization) | |||||||
Standard RS232 port( provide free control software) | ||||||||
Infrared Remote Control Operation | ||||||||
Engineering software | Customized | |||||||
Working temperature | 0~70 °C | |||||||
working humidity | 5~95 %RH | |||||||
AC voltage power supply | 100-240V/50, 60Hz | |||||||
power consumption | Max 300W,according to different Screen models | |||||||
Dimension | 338×295×60(mm) | |||||||
Weight | About 3.5KG |
