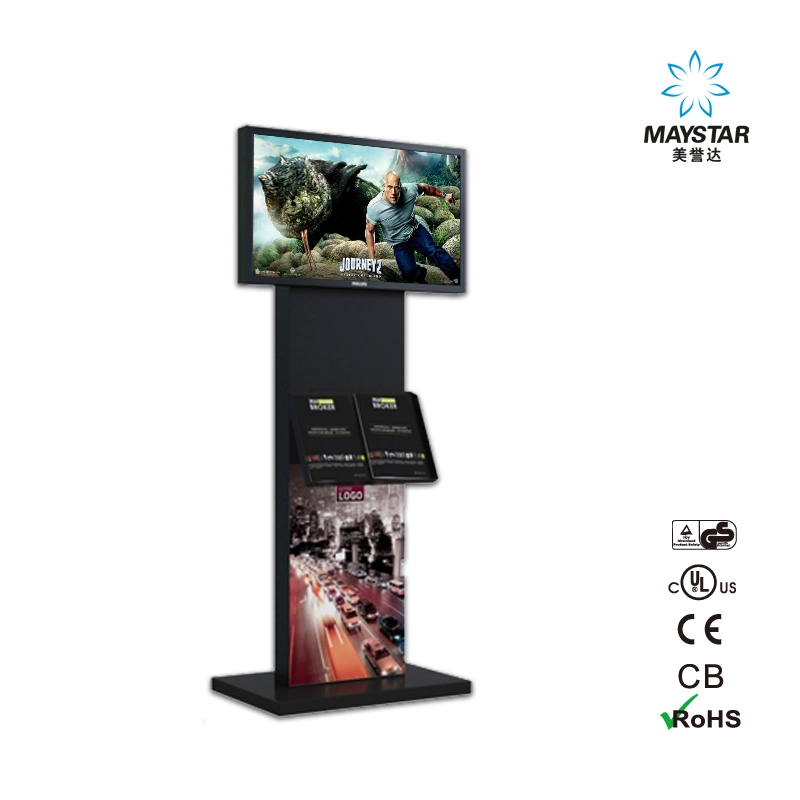

TFT led advertising panel for store with light box
Parameter Chart | ||
Function Version | Single Version | |
Main Specification | Input Power | 100V~250V/50HZ/60HZ |
Power Comsuption | 18W (15" and smaller size),30W and less (19"~32" ), | |
90W and less (32"~84") , | ||
Certificate | CE /ROHS/ CB /FCC /UL / ETL /SASO /SONCA /SAA /EMC | |
Mainboard Specification | CPU | MSTAR Series |
Operating System | Linux | |
In/Out Interface | 2xUSB | |
Storage Mediums | U-Disk(Pen Drive) | |
Programs Updating | U-disk updating/ | |
SD card updating | ||
Speaker Power | 2×10W (8Ω) | |
Color system | PAL/NTSC/SECAM | |
Video Format | MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2),MPEG1 | |
(VCD:DAT/MPG1),WMV,MP3,MPG,TRP,TP,M2TS,TS, | ||
RM,RMVB,MKV,DIVX,ASF,FLV,...etc. support all of | ||
the format of video | ||
Audio Format | MP3..etc. all of the format of audio | |
Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the | |
format of image | ||
Remote controller | IR Remote Controller | |
OSD Display Language | English/Chinese | |
Operating System Language | English/Chinese | |
Display Specification | Display Size | 15",17",19",22",26",32",40",42",46",47",50",55",65",72", |
82",84" | ||
Display Brand | LG / SAMSUNG /SHARP/ TOSHIBA/AUO/CHIMEI | |
(all of display are brand new A+ grade) | ||
Max Resolution | 1920×1080 (32"~84") , 1440×900(19"~32" ),1366×768 | |
(17"~32"), 1024×768 (15" and smaller size) | ||
Display color | 16.7 Millinium | |
Pixel Pitch(mm) | 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V) | |
Brightness (nits) | 300cd/m2~500cd/m2 | |
Contrast | 450:1~1500:1 | |
Visual angle | Full View | |
Response time | 3~5ms | |
Life(hrs) | >70,000(hrs) | |
Touch Screen Specification | Touch Point | N/A |
Touch Type | N/A | |
Touch Sensibility: | N/A | |
Response Time | N/A | |
Scanning Rate | N/A | |
Available object size for | N/A | |
touch | ||
Transparency of | N/A | |
Tempered protecting glass | ||
Durability of Touch | N/A | |
Surface hardness of | N/A | |
Touch screen | ||
Functions | Management Method | Plug in U-Disk(pen drive) with advertisement inside, |
with advertisement inside, the advertisement | ||
the advertisement cycle play.Support Play List and Split-screen function | ||
Display function | Automatical and cycle paly when power is on;After | |
power is off, the machine will continue to play the | ||
advertising content from where it is intermitted due | ||
to power-off | ||
Support playing content update with USB---Copy your | ||
new advertising content into your USB, and plug into | ||
the machine, the machine will cover your former | ||
content with new content and play automatically | ||
and do cycle | ||
Support picture-in-picture, and picture again music | ||
and slide show play. | ||
Capable of setting scrolling caption and Logo on | ||
the screen. | ||
Built-in clock and calendar function, you can choose | ||
it show on the screen | ||
Support file and OSD vertical or horizontal playing | ||
type | ||
Support 5 groups of automatic power on/off timer, | ||
and Daily and Weekly power on/off timer can be set | ||
Support multi-language; English, Chinese.. etc. | ||
Support photo+Music, photo+video,photo+photo, | ||
music+video…all of the combination of photo, | ||
audio, video are available. | ||
10.Support all of the combination of photo,audio, | ||
video single repeat, or not repeat.. | ||
Support rotating manu 90/180/270 degree | ||
You can set split-screen---1 to 10 sections for | ||
broadcasting video,audio and photo, free to | ||
set the sections. |
