X SERIES PRODUCT FEATURES:
1. Aluminum magnesium alloy material.
. Lighter weight material than die-casting aluminum .
2. Light weight and ultra slim cabinet:
. 5.5kg only per cabinet / 68mm thickness.
3. 500x500 and 500x1000mm compatible.
. 500x1000mm cabinet is more quickly to make big screen, and 500x500mm cabinet is to meet customer's different requests.
4. Smart cabinet handle design.
. Easier to take and more convenient for installation.
5. Fast locking system.
.Fast installation to save labor cost and time.
PRODUCT SPECIFICATIONS:
WORKSHOP:
![Ckgled HD P3.91 P4.81 SMD Indoor/Outdoor LED Panel Message Display for Stage](https://img2.grofrom.com/all-led/8c335524cc3ac427113820e547270e77.webp)
PROCESS:
![Ckgled HD P3.91 P4.81 SMD Indoor/Outdoor LED Panel Message Display for Stage](https://img2.grofrom.com/all-led/21cee9c57ba5afb7b3667f0247d586db.webp)

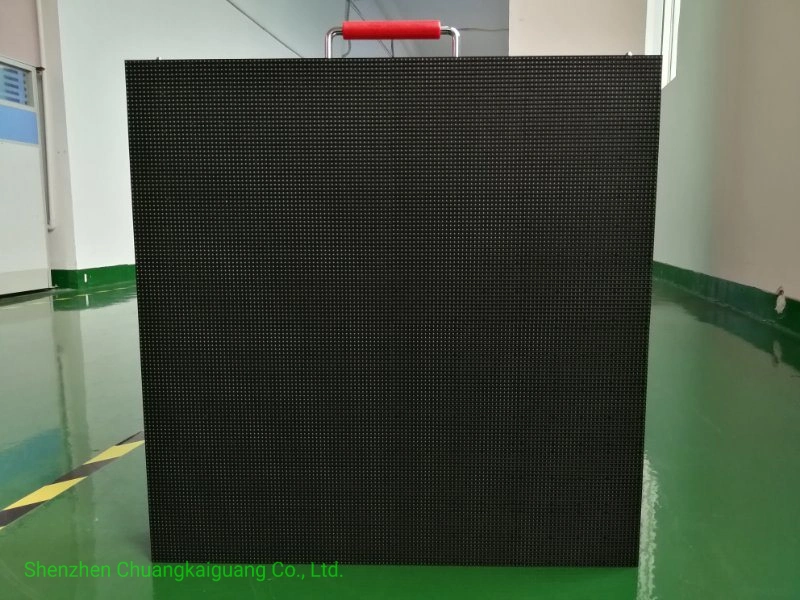

PRODUCT PHOTOS:
![Ckgled HD P3.91 P4.81 SMD Indoor/Outdoor LED Panel Message Display for Stage](https://img2.grofrom.com/all-led/6e0cb481de4a0bb26d6b48635292822f.webp)
![Ckgled HD P3.91 P4.81 SMD Indoor/Outdoor LED Panel Message Display for Stage](https://img2.grofrom.com/all-led/072b08d53a791c7e16c34248756a8d59.webp)
![Ckgled HD P3.91 P4.81 SMD Indoor/Outdoor LED Panel Message Display for Stage](https://img2.grofrom.com/all-led/e9582b55ab2a133919043dab91a969c3.webp)
![Ckgled HD P3.91 P4.81 SMD Indoor/Outdoor LED Panel Message Display for Stage](https://img2.grofrom.com/all-led/586d0641e44d8fb528f2ccc16870eda1.webp)
![Ckgled HD P3.91 P4.81 SMD Indoor/Outdoor LED Panel Message Display for Stage](https://img2.grofrom.com/all-led/000922a55435e6a026e69c960c3c7924.webp)
![Ckgled HD P3.91 P4.81 SMD Indoor/Outdoor LED Panel Message Display for Stage](https://img2.grofrom.com/all-led/af2f724a527dc99c890ace2ab396c171.webp)
Package:
![Ckgled HD P3.91 P4.81 SMD Indoor/Outdoor LED Panel Message Display for Stage](https://img2.grofrom.com/all-led/decc93a7929c1e59b2a525cf5130f085.webp)
Certificates:
![Ckgled HD P3.91 P4.81 SMD Indoor/Outdoor LED Panel Message Display for Stage](https://img2.grofrom.com/all-led/840d2f064638615e32c47f827a083538.webp)
1. Aluminum magnesium alloy material.
. Lighter weight material than die-casting aluminum .
2. Light weight and ultra slim cabinet:
. 5.5kg only per cabinet / 68mm thickness.
3. 500x500 and 500x1000mm compatible.
. 500x1000mm cabinet is more quickly to make big screen, and 500x500mm cabinet is to meet customer's different requests.
4. Smart cabinet handle design.
. Easier to take and more convenient for installation.
5. Fast locking system.
.Fast installation to save labor cost and time.
PRODUCT SPECIFICATIONS:
NO. | Parameter | Specifications |
1 | Model | P3.91-SMD2020 indoor rental screen |
2 | Pixel Pitch(mm) | 3.91 |
3 | LED | SMD2020 |
4 | Screen Resolution | 65536 |
5 | Scan Method | 1/16 |
6 | Cabinet size(L*H*W) | 500X500X88mm / 500x1000x88mm Compatible |
7 | Cabinet(Kg) | 5.5KG / 11KG |
8 | Viewing angle | H:140° V:140° |
9 | Grey Scale | 14-16bit adjustable |
10 | Refresh rate(HZ) | ≥1920 |
11 | Module size(mm) | 250*250 |
12 | Brightness(nits) | ≥1500 |
13 | AVE. power consumption (W/sqm) | 200 |
14 | MAX. power consumption(W/sqm) | 600 |
15 | IP grade | IP31 |
16 | controller | Linsn/Nova |
17 | Working humidity | 10~90%RH |
18 | Input Voltage | AC 110V-220V +/-10% |
19 | Working temperature | -30ºC~60ºC |
20 | Compliance | CCC / CE / RoHS |
