|Type||SMD3535||Chip parameters||Red λd:(620-625nm) IV:(800-960mcd)|
|Color||1R1G1B||Chip parameters||Green λd:(520-525nm) IV:(1350-1650mcd)|
|Brand||Epister||Chip parameters||Blue λd:(470-475nm) IV:(330-400mcd)|
|Pixel Pixel||10 mm||Module Size||320 mmWX160 mmH|
|Module Resolution||32×16=512 (Dots)||Module Weight||0.75kg|
|LED Display Cabinet|
|Pixel Density||10000 Dots/m2||Frame Frequency||no less than 60 frame/sec|
|Cabinet Resolution||96 ×96 =9216 (Dots)||Input Voltage||AC110-220V±10%,50/60Hz|
|Cabinet Dimension(W*H*D)||960x 960 x 140mm||Output Voltage||DC-5V,40A/60A/80A|
|Module Quanty /Cabinet||18pcs = 3(w) x 6(h)||Grey Scale Levels||16bit|
|Cabinets Material||Iron Cabinet||Color Processing||R(1024)×G(1024)×B(1024)|
|Cabinet Weight||42 kg||Brightness Adjustment||256 color levels|
|Brightness||≥5500 nits||MTBF( mean time between failures)||5000 hours|
|Viewing Angle||Horizontal 120°, Vertical 120°||Life-span||100,000 hours|
|Nearest Viewing Distance||5 meter||Protection Level(front/back)||IP65|
|Power Consumption (Max)||900 w/m2||Malfunction Dot Rate||less than 0.0001|
|Power Consumption (Average)||300 w/m2||Working Temperature||-30ºC~50ºC|
|Refresh Rate||≥2000Hz||Scan Mode||1/2|
|Control Mode||Synchronization/Asynchronization||Control System||Sending Card, Receiving Card,Receiving HUB|
|PC Operating System||Microsoft Windows 7, XP and Vista||Software||ED Studio Nova/Linsin|
|Communication Type||Net cable,3G,WIFI(Sold separately)||Control Card Input||DVI,USB,R45,HDMI(Sold separately)|

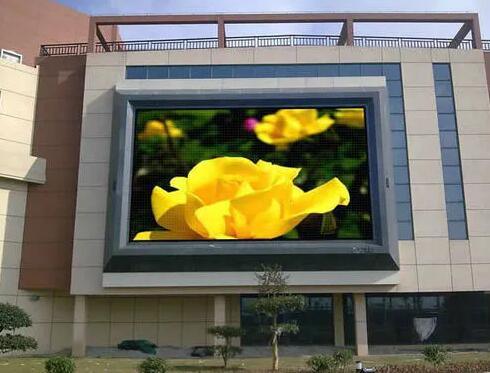

Why choose P10 Outdoor LED Display Screen?
1. Strong visual impact
The large-sized, dynamic, and audio-visual integrated LED advertising can motivate the audience's senses in an all-round way,
effectively convey information and guide consumption.
2. Wide coverage
P10 Outdoor LED display modules are generally installed in areas where people are concentrated, such as shopping malls. Through high-frequency communication with user groups, it stimulates consumers' strong desire to buy and improves brand awareness.Module:
3. Long release period
P10 Outdoor LED display modules can be played around the clock. It is easier for the audience to see, it can better guide the potential customer crowd, and enable the merchant to achieve better publicity with less cost.
4. Low audience dislike rate
P10 Outdoor LED display modules can broadcast programs to more audiences in a real and timely manner through live broadcast technology. Including special topics, columns, variety shows, animations, radio dramas, TV series, etc., the content is rich, avoiding the contact obstacles caused by the conscious and active avoidance of advertising audiences.Cabinet:
5.Energy saving and environmental protection
The light-emitting element of the P5 Outdoor LED display modulesy is LED. Because the power of a single LED is very low, generally 0.04 ~ 0.08W, the power is several times lower, but the effect is much better. The LED display is made of environmentally friendly materials and is recyclable. It will not cause pollution and damage to the environment due to heavy use.
6. Posting information is simple and convenient
Connect to a computer through a data cable connection or wireless communication, and set up in the computer to publish advertising content, conveniently and quickly.
JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.
The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines
Packing and Shipping:
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 7-15 working days after confirm receipt payment in advance.
Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.
Q1. Can I have a sample order for led Screen?
A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.
Q2. What about the lead time?
A:About 7~10 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for led Screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
