Dust proof 55 inch outdoor LCD monitor supplier touch digital signage

IP65 Digital Slimline 130mm 55inch LCD Outdoor Monitor32inch to 98inch portrait or landscapeResolution Full High Definition 1920*1080High brightness sunlight visible 2000-2500nitsOperation temperature -10degree up to 50degreeSuper slim thickness only 130mmAkzo powder coating for 10 years lifetimeBuilt in smart brightness sensorB

Featured Products

IP65 Digital Slimline 130mm 55inch LCD Outdoor Monitor

  • 32inch to 98inch portrait or landscape
  • Resolution Full High Definition 1920*1080
  • High brightness sunlight visible 2000-2500nits
  • Operation temperature -10degree up to 50degree
  • Super slim thickness only 130mm
  • Akzo powder coating for 10 years lifetime
  • Built in smart brightness sensor
  • Built in media computer Windows 10 operating system
  • Built in FREE CMS IDS6 software, support remote control
  • Module design for easy maintenance
  • Lead time: 20 days
  • Twelve month warranty for all electrical parts
  • Certificate: CE (EN62368-1:2014+A11:2017) (EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN61000-3-3:2013), RoHs(2011/65/EU; 2015/863/EU), ROHS(IEC62321-1), IP65(EN60529)

Dust-Proof 55inch Outdoor LCD Display Supplier Touch Digital Signs
Dust-Proof 55inch Outdoor LCD Display Supplier Touch Digital Signs

Dust-Proof 55inch Outdoor LCD Display Supplier Touch Digital Signs

Dust-Proof 55inch Outdoor LCD Display Supplier Touch Digital SignsDust-Proof 55inch Outdoor LCD Display Supplier Touch Digital Signs

IP65 Digital Slimline 130mm 55inch Monitor Enclosure

(1) The enclosure is made of 1.5mm SGCC galvanized steel plate, sprayed with Akzo outdoor  powder coating, the protection period is more than 10 years.
(2) The enclosure structure is designed with waterproof slots and air inlet and outlet holes to meet the IP55 protection level.
(3) Dust-proof design: The air inlet and outlet are designed with special high-efficiency dust-proof filters to filter fine dust in the air and prevent mosquitoes from entering the machine. The minimalist disassembly design facilitates regular maintenance by customers
(4) The protective glass in front of the screen of the whole machine adopts 6mm ultra-white toughened glass, the light transmittance ≥97%, high light transmittance, anti-reflection.
(5) This display adopts the front and back door opening method, which can facilitate the maintenance of the internal display screen, heat dissipation components and electronic parts.
(6) This display adopts modular design, which is convenient for installation and maintenance.
(7) The installation hole of the bottom plate of the whole machine can be fixed by pulling the bolt or the embedded threaded rod.

TFT panel
(1) Adopt high-brightness LCD screen, the brightness reaches 1500-2500cd/m.
(2) High resolution, high contrast, high brightness, greatly improve the layering of the picture, and can better show details.
(3) It has the function of automatically eliminating residual image, anti-ultraviolet rays, heat insulation to sunlight, and automatic light-sensing green energy-saving protection LCD screen for long-term use.
(4) It has the self-adapting function of black level extension to enhance the depth of image depth.
(5) Using outdoor professional high-brightness LCD screen, the video image is brighter and the three-dimensional sense is stronger.
(6) 16.7M colors, the picture is more natural, and the delicate picture is truly without tailing.
(7) Super long life, 7*24 hours of uninterrupted work, up to 50,000 hours.

Dust-Proof 55inch Outdoor LCD Display Supplier Touch Digital Signs


(1) Electrical protection: leakage, overload, over-voltage protection, lightning protection device, over-temperature protection, etc.
(2) Audio: A dual-channel, stereo surround power amplifier system with an output power of 8 Euros and 10W.
(3) The working environment temperature design standard is +50°~ -30°.
(4) Adopt modular design, sustainable and maintainable design.
(5) Automatic light-sensitive adjustment:

The screen backlight adopts automatic ambient light sensor, real-time adjustment of the screen brightness to meet the clear image display under direct sunlight, and make the screen not dazzling at night, energy saving and environmental protection.

Heat dissipation:
(1) Adopt integrated intelligent direct ventilation and heat dissipation system, professional and special air duct heat dissipation design.
(2) The internal air and external air of the whole display are circulated and exchanged. After the outside air enters the air filter and is filtered, it is divided into two wind cycles in front of the screen and behind the screen to ensure that the internal temperature reaches a temperature difference of 8-10 degrees than the external temperature.
(3) The self-developed fan speed control board can automatically adjust the fan speed according to the internal temperature of the machine.
(4) Configure the high-temperature automatic power-off protection function. When the internal temperature of the machine is abnormally high and exceeds the normal working range.

the control system will perform power-off protection on the main components such as the display screen, while the fan continues to operate at full speed
Transfer heat to fully protect the display and main components.


  • A Three-Year Warranty on all mechanical parts
  • Twelve months coverage for electrical parts
  • High-quality engineering
  • Free, ongoing product support from specialist staff
  • Over thirteen years of industry experience
  • Free spare parts include fans, filter, power supply, backlight cables when ship out

Dust-Proof 55inch Outdoor LCD Display Supplier Touch Digital Signs
Exterior Digital Signs Information Kiosk 55inchSpecification


TFT Panel
Model No.AVL-OD550
Panel size55" TFT-LCD
Display area(mm)/mode1209.6(V)*680.4(H)
Maximum resolution1920*1080
Display color16.7M
Brightness (nits)2500nits~3000nits
Visual angle178°/178°
Response time6ms
InterfaceHDMI, RJ-45, SDI, USB, VGA, WIFI (optional)
Operating systemAndroid or Windows i5, Linux
RAM2G or 4G
SSD8G or 128G
Content management systemYes, free
Color/appearanceWhite, Black, Grey, customized
CaseGalvanized Sheet+ 6mm tempered protective glass
Cooling methodFans
Power supplyAC100~240V 50 /60 HZ
Maximum power consumption400W
Power terminationIntegrated circuit breaker
Ambient light sensorYes
Smart temperature sensorYes
AccessibilityVandal proof security key access
Working temperature-20ºC~55ºC
Storage temperature-40ºC~60ºC
Working humidity85%
Storage humidity85%
TermsUnit Price ( EXW Shenzhen )
Unit price
Lead time15-20 working days
Payment term50% deposit, 50% balance before shipment
Warranty1 year free warranty, lifelong technical support
Price validationOne Month

Dust-Proof 55inch Outdoor LCD Display Supplier Touch Digital Signs

Various digital signage solution, including plug-and-play version, Android version, Windows version

USB Android/WifiWindows
Content update methodInsert U-DiskCMS or U DiskCMS or U Disk
Operating systemStand-aloneAndroid 4.4/5.1/6.0/7.1Windows 7/8/10/Linux
Intelligent split screenYESYESYES
Time SwitchYES YES YES
Automatic RecognitionYESYESYES
Wifi networkNO YESYES
Remote control management NOYESYES
APP installationNOYES YES
Web surfingNOYESYES
CPUNORK3288Intel Celeron J1900/Intel Core i3/i5/i7
Interface HDMIUSB*2, Wifi, LAN, HDMI, VGAUSB2.0*2, USB3.0*2, HDMI*1, VGA*1
Speaker NO2*5W 2*5W
CMSNOYes, for freeYes, for free
Multiple LanguageEnglishYes, could be your local languageYes, could be your local language
Suitable for Small amount of terminals that don`t require CMSInteractive customer experience Interactive information display with web browser

Outdoor Digital Signs Production Line:
Dust-Proof 55inch Outdoor LCD Display Supplier Touch Digital Signs
About AVLink Digital Signage Solution:

Shenzhen AVLink technology co., ltd, based on Guangming, Shenzhen, China. Leader of Chinese Outdoor Digital Signage solution.

AVLink was first established as a manufacturer of IP68, IP67, IP65 and IP55 rated outdoor digital signage, high brightness (1500-4000nits) and wide temperature (-40 to +60 degree) LCD display. It is now one of the pioneers who specialized in digital signage solution, smart city solution, passenger information display, outdoor monitors, indoor advertising display.

You only need give us about your application, and project details, we will provide you design, planing and affordable digital signage costs, a turnkey signage solution. We have 3500m2 factory, in the peak season, we shipped out more than 1500pcs outdoor display each month.


Which Certificate AVLink Has?

Dust-Proof 55inch Outdoor LCD Display Supplier Touch Digital Signs

Each product meets CE Certificate: CE (EN62368-1:2014+A11:2017) (EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN61000-3-3:2013), and RoHs(2011/65/EU; 2015/863/EU), ROHS(IEC62321-1), IP65(EN60529)

Outdoor digital signage will have waterproof test and sunlight test, all digital screen will have 48hours aging test before shipping. OEM & ODM services supported for free.

We are China first 15days outdoor display lead time manufacturer. For indoor display only takes 1-3 days.

Who is AVLink?

AVLink is a leading designer, manufacturer and seller of  13.3inch, 21.5inch, 27inch, 32inch, 43inch, 49inch, 55inch, 65inch, 75inch, 86inch and 98inch TFT LCD signs.

AVLink outdoor digital signage production line including billboard advertising, bus advertising, digital display board, digital signage outdoor, kiosk information systems, digital way finding.

Outdoor digital signage displays, high brightness monitor, sunlight readable monitor, street furniture advertising, outdoor digital menu board, drive-thru menu board, outdoor digital display board, as well as outdoor totempassenger information displays systems, dynamic wayfinding

Shenzhen AVLink semi-outdoor digital signage product including high bright screens, window display screens.

AVLink indoor digital signage solution including video wall display, smart fridge, display stand, interactive whiteboard for kids, digital display, digital menu board, self service kiosk, transparent display, e paper display, digital signage solutions, digital screen display, digital kiosk, advertising displays, software digital signage, digital screen advertising, touch screen coffee table,  digital signage for TV.

Interactive whiteboard in the classroom, advertising sign boards, digital kiosk display, transparent refrigerator, floor stand TV mount, digital touch screen,  interactive digital wall, interior way finding signage, digital signage for advertising, interactive touch table, advertising sings for small business, stretch display, indoor digital advertising displays, interactive information kiosks, shelf edge screensmart table, stretched cut monitor, E-PaperQLED and OLED screen.
Dust-Proof 55inch Outdoor LCD Display Supplier Touch Digital Signs

Who`s AVLink Digital Signage Customer?

With over 12 years of experience, AVLink has customers include public transport authorities, outdoor media companies, SmartCity solution providers, strategists, and consultants for a range of applications, including Digital Out Of Home DOOH, Street furniture, wayfinding, SmartCity.

AVLink has a wide spectrum of digital signage, products have been installed in Europe(Germany, Netherlands, Poland, France, Italy, Switzerland, Slovakia, Croatia, Azerbaijan, Latvia, Finland, Spain and Portugal), Asia(Israel, Dubai, Russia, Korea, Malaysia), North America (USA), South America (Columbia, Ecuador), Africa(Morocco) etc. For more details please contact our specialist.

For distributor, we will provide free website and catalog material, such as pictures and videos.

Which Kind of Service You Will Get?

  • Provide free marketing material to distributor
  • Offer the affordable price of high brightness digital signage
  • Manufacturer the top quality digital totem
  • Provide 7/24 after-sales service

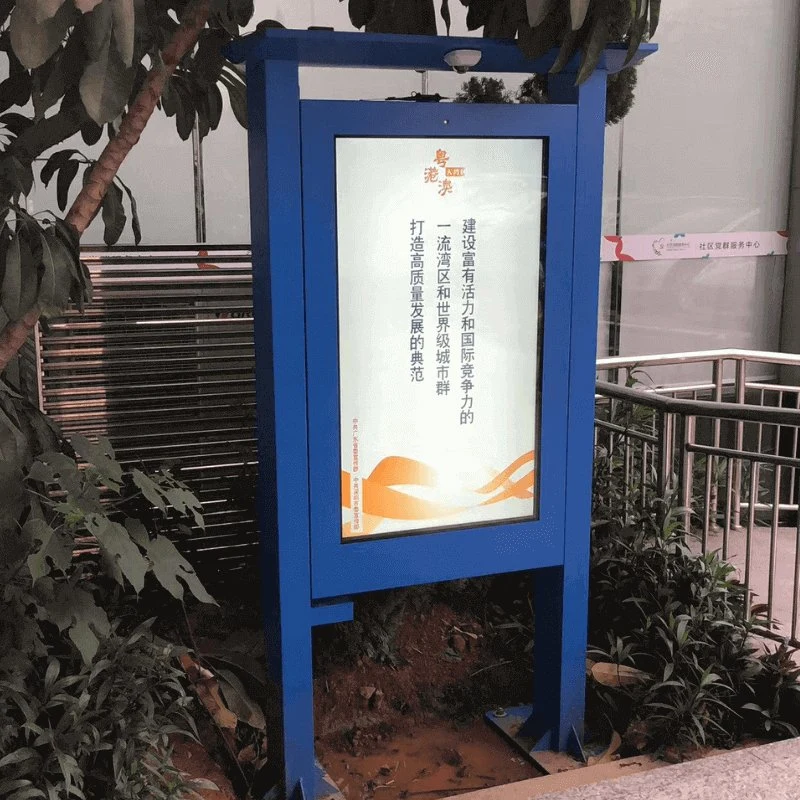

Case story:Dust-Proof 55inch Outdoor LCD Display Supplier Touch Digital Signs

Ask Us Anything(FAQ)

1.Q: Are you Manufacturer or Trading company?
A: Manufacturer with more than 10 years experience.

2. Q: What's your main products?
A: We have been focusing on the production of outdoor and indoor digital signage for 10 years.

3.Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.

4. Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime.

5. Q: What is your delivery time?
A: For samples, 1~3 days delivery for indoor dynamic screen, 15~20 dayS for outdoor digital signage
For bulk order, it depends on your quantity and requirements on OEM / ODM.

6. Do you have CMS?

Yes, we provide free content management system for Android or Windows OS digital signage. For the more information about CMS, please download from here.

7. Can I be your distributor?
For distributor issue, please confirm with our director. Send inquiry now!
