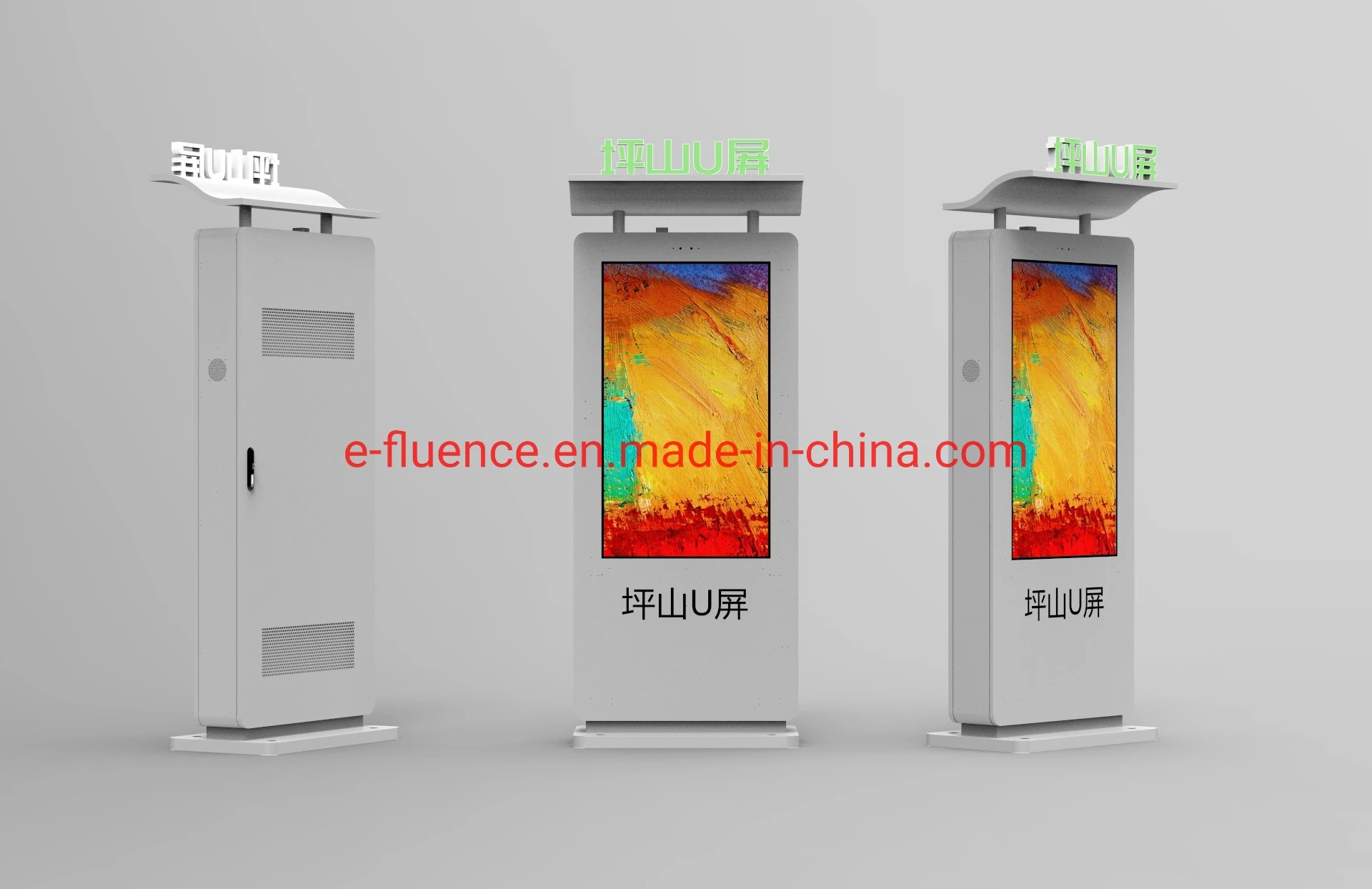

43" Outdoor IP65 Waterproof LCD Display, Digital Display, LCD Advertising Display LCD Screen, Digital Signage

2, 500 nits ultra high Brightness, Sunlight Viewable; Max. 1, 080 X 1, 920 Resolution; Aspect Ratio: 9: 16 in portrait mode; Wide Viewing Angles 89 deg. (L/R/U/D); Waterproof IP65 rating; Built-in high definition network player, Mini PC is optional; Windows or Android OS can be added; WiFi

Featured Products

2, 500 nits ultra high Brightness, Sunlight Viewable;
Max. 1, 080 X 1, 920 Resolution;
Aspect Ratio: 9: 16 in portrait mode;
Wide Viewing Angles 89 deg. (L/R/U/D);
Waterproof IP65 rating;
Built-in high definition network player, Mini PC is optional;
Windows or Android OS can be added;
WiFi, LAN and 4G networks;
Brightness 1, 500-2, 500 is optional;
6-8 mm AR toughened glass option;
Fully outdoor use;
SGCC + powder coated case with life at 10 years plus for fully outdoor use;
Function and cabinet custom fabrication will be accepted.

Model43UDS100S-T 03
Screen Size43 inches
PanelA-Si active matrix TFT-LCD
Frame ColorSilver/white/black/blue etc.
Product Size(mm)750(H)X1, 800(V)X150(D)
G. W. 115KGs
Display Size(mm)529.42(H)X941.2(V)
Max Resolution1, 080X1, 920
Brightness2, 500 nits
Aspect Ratio9: 16
Contrast Ratio2, 000: 1, Dynamic contrast ratio: 10, 000: 1
Horizental Freq. 121.8kHz ~ 140kHz
Vertical Freq. 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
Viewing Angle89/89/89/89 deg (L/R/U/D)
Colors16.7 M, 8 bits depth
Response Time10 ms
TouchPCAP 10 points touch
Interfaces: VGA, AV, S-video, HDMI
Media PlayerMedia Player (Sigma 8653 chip) (option)
Remotor ControlSupport for Full OSD Features
DimmingAuto-dimming by light sensor
Supported Media FormatVideo: MPEG-1, MPEG-2, WMV9, AVI(3.11), XVID, H264, 720P, 1080P,
1080I. Audio: MPEG-1 Layers I/II/III2.0, MPEG-4 AAC-LC 5.1, MPEG-4
HE-AAC 5.1, MPEG-4 BSAC 2.0, WAV, 24bit linear PCM 7.1 Picture: BMP,
JPEG, PNG, GIF
Play ModesSupport loop, insertion, timing, scheduled times, group, play on demand,
Rtsp, MMS
Timer On/OffSupport (Set by daily & weekly)
OSDSupport 32 bits real color OSD, and display any place, support video/graph
And text mixture; Up to 5 layer of opaque / transparent / semitransparent
Graph and text superimpose on a video can be realized.
Screen ArraySupport 1 video zone, 5 picture zones, 5 rolling zones, 1 logo zone, 1 zone
With date-time-week, 1 weather forecast zone. Separate screen layouts
Can be freely realized and play different contents.
Internet ControlLAN, WiFi, 3G/4G optional
Waterproof IP55 ratingYES
Operating Temperature-15-50 oC,
Wide temperature-30-60 oC
Operating Humidity10%-85%
Storage Temperature-30-60 oC
Storage Humidity5%-90%RH


43
43
43
43

 43
43


43
43
43
43
43
FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral with Inner 4CM PE foam + export carton box, also outer export wooden case and light case are optional. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A:30% TT Advance+ 70% TT prior to shipment for intdoor screens, 50% TT Advance+ 50% TT prior to shipment for outdoor screens, full payment TT advance for samples.

Q3. What is your terms of delivery?
A: EXW.

Q4. How about your delivery time and method?
A: Generally, goods would be shipped in 12-22 work days after payment received. If we have materials ready, goods would be shipped in 2-3 work days after payment received, finally depends on quantities.
Comes to delivery method, for Sample and Bulk order < 100KGs, we will kindly suggest Express and Air freight, Air freight and Sea shipping when for Bulk order >100KGs.As for detailed cost, it depends on your final order.


Q5. What brand of screen are you using?
A: LG, Samsung, AUO screens are normally used, also we can do it as your appointed brand and model. Customized screen is also supported.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7. How long is the warranty?
A:Generally, our promised warranty time is 12 months from the date of delivery.


Q8: I haven't done business with you guys before, how can I trust your company?
A: Our company is ISO9001 certified and is a golden supplier.

Q9: How do you make our business long-term and good relationship?
A: 1. We ensure good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
