High Transparency Indoor Outdoor Transparent LED Screen for Advertising
Clean and See Through Displaying, Innovative Transparent Technology
Laminated Safety Glass
Excellent Viewing Angle
Hidden Cable Appearance
Easy to Install and Dismantle
Slim, Lightweight and Quiet
35mm-45mm thickness
Available to attach onto glass wall directly
High Transparency and Concise
60-80% transparency rate among different pitches
Variable brightness options for day and night environment
Hidden cable design looks clean and concise
Special Emitting Angle
Lighting from tube Side emitting
Brightness and color are penetrated via the glass effect
Embedded-In SMD technology, avoid being knocked off
During transportation and installation
Specifications:
| NO.1 | BG-3.9-7.8 | BG-3.75-8 | BG-5-6.67 | BG-5-8 |
| Physical Pitch | 3.9*7.8mm | 3.75*8mm | 5*6.67mm | 5*8mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD3528 | SMD3528 |
| Pixel Density | 32768pixels/m² | 33,250 pixels/m² | 30,000 pixels/m² | 25,000 pixels/m² |
| Module Dimensions (W*H)(mm) | 1000*250/ 500*250 | 480*320 | 480*320 | 480*320 |
| Panel Dimensions(mm) | 1000*1000 | 960*640 | 960*640 | 960*640 |
| NO. Of Modules Per Panel(W*H) | 1*4/2*4 | 2*2 | 2*2 | 2*2 |
| Physical Resolution of Module(W*H) | 256*32/128*32 | 128*40 | 96*48 | 96*40 |
| Physical Resolution of Panel(W*H) | 256*128 | 256*80 | 192*96 | 192*80 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Single Cabinet Weight | 11kg/m² | 10.2kg/m² | 10kg/m² | 9.5kg/m² |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colour Number | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
| Average Power Consumption | 207W/m² | 201W/m² | 209W/m² | 203W/m² |
| Max. Power Consumption | 690W/m² | 670W/m² | 696W/m² | 670W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | >5000 nits | >5500 nits | >5500 nits | >5500 nits |
| Viewing Angle | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rating | IP30 | IP30 | IP30 | IP30 |
| Servicing | Rear | Rear | Rear | Rear |
| Certification | CCC,CE,ETL, FCC | CCC,CE,ETL, FCC | CCC,CE,ETL, FCC | CCC,CE,ETL, FCC |
| NO.2 | BG-7.5-8 | BG-10 | BG-16 | BG-20 |
| Physical Pitch | 7.5*8mm | 10*10mm | 16*16mm | 20*20mm |
| Pixel Configuration | SMD3528 | SMD3528 | SMD3528 | SMD3528 |
| Pixel Density | 16,625pixels/m² | 10,000pixels/m² | 3,906 pixels/m² | 2,500 pixels/m² |
| Module Dimensions (W*H)(mm) | 480*320 | 480*320 | 480*320 | 480*320 |
| Panel Dimensions(mm) | 960*640 | 960*640 | 960*640 | 960*640 |
| NO. Of Modules Per Panel(W*H) | 2*2 | 2*2 | 2*2 | 2*2 |
| Physical Resolution of Module(W*H) | 64*40 | 48*32 | 30*20 | 24*16 |
| Physical Resolution of Panel(W*H) | 128*80 | 96*64 | 60*40 | 48*32 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Single Cabinet Weight | 9kg/m² | 8kg/m² | 7.2kg/m² | 6.5kg/m² |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colour Number | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
| Average Power Consumption | 204W/m² | 195W/m² | 218W/m² | 218W/m² |
| Max. Power Consumption | 670W/m² | 650W/m² | 650W/m² | 650W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | >5500 nits | >5500 nits | >5500 nits | >5500 nits |
| Viewing Angle | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rating | IP30 | IP30 | IP30 | IP30 |
| Servicing | Rear | Rear | Rear | Rear |
| Certification | CCC,CE,ETL, FCC | CCC,CE,ETL, FCC | CCC,CE,ETL, FCC | CCC,CE,ETL, FCC |

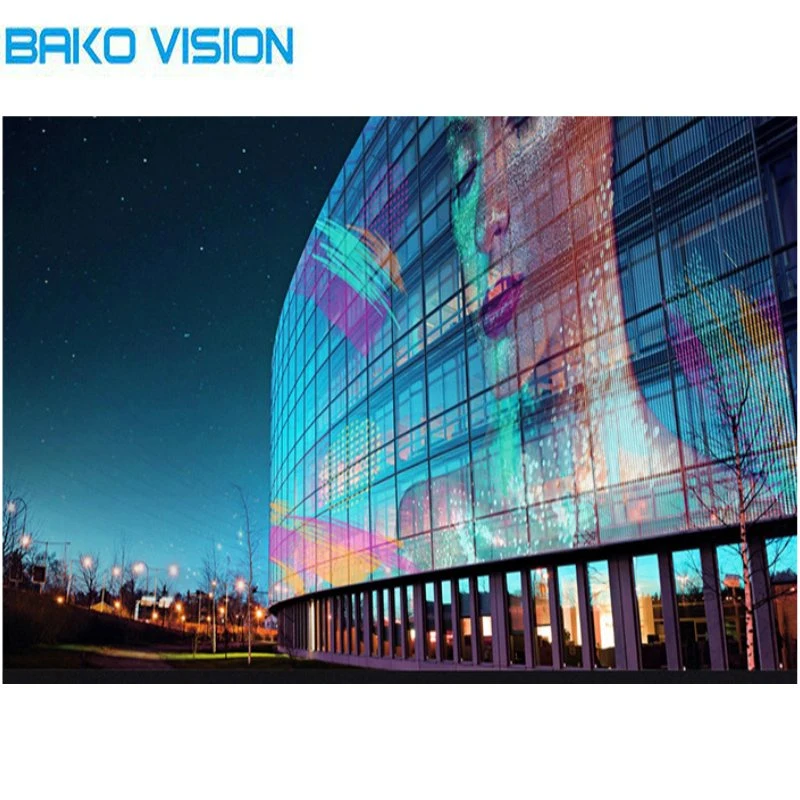

Application
Part of the exhibitions during this year
About Us:
Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a high-tech science & technology enterprise of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our product lines have included I/O HD, Creative, Media LED screen, meanwhile, based on our experienced R&D team, we are always open and been proficient in breaking the new model and tooling for customized solutions as well as creative products.
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led display manufacturer OVER FOURTEEN YEARS.
Q2. What's your payment term?
A: T/T, Western Union, L/C
Q3. Do you provide samples ? is it free?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 days working days for batch order
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.
Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.
Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection. And we often attend exhibitions around the world every year, so we can visit you if you need at that time.
