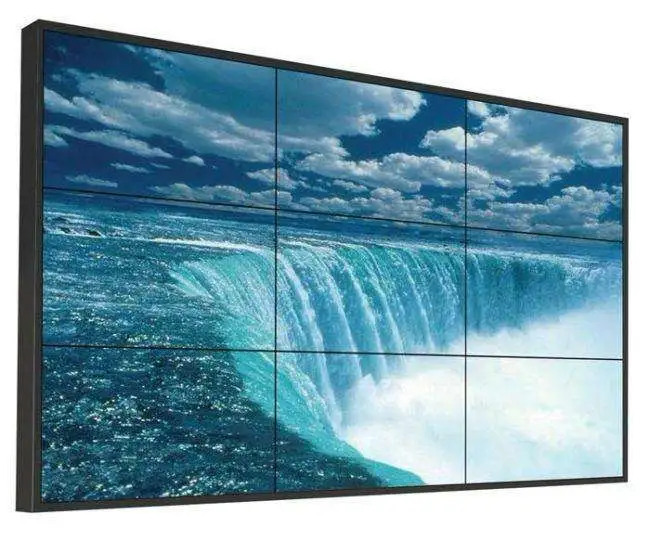

55inch Slim 3x3 DID lcd video walls Digital signage screen for advertising player totem monitor
In stock
In stock
Specification----------------------------------------------------------------------------------------------------------------
| Model No. | PJ-B551P-B1-DP | ||
| View Area(L*H) (mm) | 1209.6*680.4 | ||
| Outer case size(mm) | 1213.5*684.3*123 | ||
| N.W.(kgs/unit) | 28.8 | ||
| Panel specifications | |||
| Panel Size | 55inch | ||
| LCD panel Brand | LG | ||
| Brightness | 500cd/m2 | ||
| Panel model | LD550DUN-TKB1 | ||
| bezel for combined two panels | 3.5mm | ||
| Surface treatment | Matte (Haze 10%),Hard coating (3H) | ||
| Color | 1.06B , 72% (CIE1931) | ||
| Ratio | 16:9 | ||
| Backlight | WLED | ||
| Mode | Landscape / Portrait Mode | ||
| Response Time | 8ms | ||
| Viewing Angle | 178°/178°(H,V) | ||
| Resolution | 1920*1080 | ||
| Display mode | S-IPS | ||
| Contrast Ratio | 1400:1 | ||
| Using life | 60,000(hrs) | ||
| Power | |||
| Power supply | AC100V-240V, 50/60Hz | ||
| Max Power consumption | 170W | ||
| Standby power consumption | 0.5W | ||
| Video wall controller( Built in each screen) | |||
| DVI in | 2 | ||
| HDMI in | 1 | ||
| VGA in | 1 | ||
| AV in | 1(BNC) | ||
| AV out | 1(BNC) | ||
| Audio in | 1 | ||
| Audio out | 1 | ||
| USB | 1 | ||
| Control signal input and loop out | RS232(RJ45-8) | ||
| Control interface | remote controller or RS232 | ||
| Video system | |||
| Color system | PAL/NTSC/SECAM | ||
| 3D comb filter and video comb filter | Yes | ||
| OSD Language | English Chinese; (to be available in multiple languages) | ||
| Temperature | |||
| Working temperature | 0 ºC ~ 60 ºC (no condensation) | ||
| Working humidity | 10% ~ 90% (no condensation) | ||
| Accessories | |||
| User Manual ,power cable,, RJ45 cable, IR receiver, remote controller, HDMI/DVI cable, USB-RS232 converter, RS232 to RJ45 converter | |||

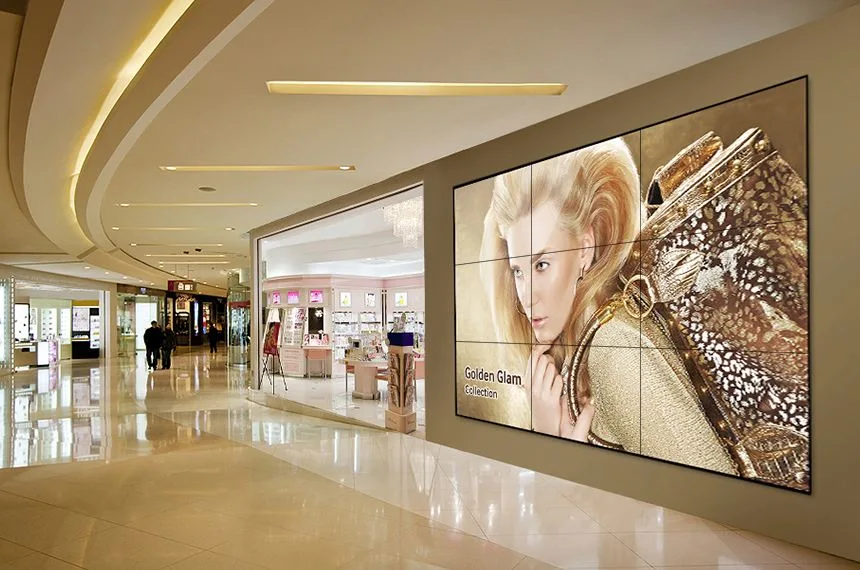

Detailed projects image -------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------
About Shenzhen Yaxunda Lcd Display Equipment Co., Ltd
Was Established In 2001 By A Group Of Entrepreneurs Who Were Running Successful Flat TV Business In China. Led By The Chief Founder Mr. Daniel Ouyangwho Saw A Great Opportunities In The Growing Digital Signage Sector And Set Up One Of The First Commercial LCD Factories , The Company Had Grown Into A Leading Firm With Over 30 Million US Dollar Annual Sales. The Company Has Become A One-Stop Shop For All Kinds Of Professional LCD Display Products In Virtually Any Size Below 120 Inches, Such As Indoor And Outdoor LCD Advertising Display, 4K LCD Video Walls, Touch Interactive Kiosks, Digital Signage, Good At Large LCD Screen Project, And Commercial Lcd Advertising Display.
After More Than 15 Years Development, We Are Proud To Be One Of The Top 5 Suppliers In Asia. Our Products Are Equipped With High Profile Components From Chimei, AUO, Samsung, LG And Sharp, To Whom We Have Set Up Good Business Relations And The CEOs And VPs Of These Panel Suppliers Visited Us In China Frequently. And Our Design Engineers And Quality Assurance Teams Work Closely Together To Make Sure All Products Are Compliant With , CE, FCC, UL And RoHS Standards. Due To Us Conforming To The International Standards, Exporting Business Accounts For About 65 Percent Of The Total Revenue.
After More Than 15 Years Development, We Are Proud To Be One Of The Top 5 Suppliers In Asia. Our Products Are Equipped With High Profile Components From Chimei, AUO, Samsung, LG And Sharp, To Whom We Have Set Up Good Business Relations And The CEOs And VPs Of These Panel Suppliers Visited Us In China Frequently. And Our Design Engineers And Quality Assurance Teams Work Closely Together To Make Sure All Products Are Compliant With , CE, FCC, UL And RoHS Standards. Due To Us Conforming To The International Standards, Exporting Business Accounts For About 65 Percent Of The Total Revenue.
