Indoor rental advertising stage wedding high definition led display screen
Specification
Detailed photos
Project case
PRODUCT FEATURES:
1.100% front service and rear service for option.
2.Cabinet corner protective design: protect cabinets during installation / dismantling and transportation.
3.High refresh rate: 3840Hz.
4.Flat cabinet design and flexible cabinet design to make curved screens for different events,
5.The 4th locking system design: one man installation and dismantling ,a good design to save labor force and time.
6.High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
1.100% front service and rear service for option.
2.Cabinet corner protective design: protect cabinets during installation / dismantling and transportation.
3.High refresh rate: 3840Hz.
4.Flat cabinet design and flexible cabinet design to make curved screens for different events,
5.The 4th locking system design: one man installation and dismantling ,a good design to save labor force and time.
6.High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
Specification
| NO. | Parameter | Specifications |
| 1 | Model | T6 |
| 2 | Pixel Pitch(mm) | 6.25 |
| 3 | LED encapsulation | SMD3528 |
| 4 | Screen Resolution(dots/m²) | 25600 |
| 5 | Scan Method | 1/10 |
| 6 | Module size(mm) | 250X250 |
| 7 | Cabinet size(L*W*H) | 500X500X88 |
| 8 | Maintenance | Front and Rear Service |
| 8 | Cabinet(Kg) | 7.2KG |
| 9 | Viewing angle | H:140° V:140° |
| 10 | Grey Scale | 14bit |
| 11 | Refresh rate(HZ) | ≥1920 |
| 12 | Brightness(nits) | ≥1500 |
| 13 | Working Voltage(V) | AC 100~240V |
| 14 | AVE. power consumption (W/m²) | 200 |
| 15 | MAX. power consumption(W/m²) | 600 |
| 16 | IP grade | IP33 |
| 17 | controller | Nova |
| 18 | Working humidity | 10~90%RH |
| 20 | Working temperature | -30ºC~60ºC |
| 21 | Storage temperature | -40ºC~70ºC |
Detailed photos

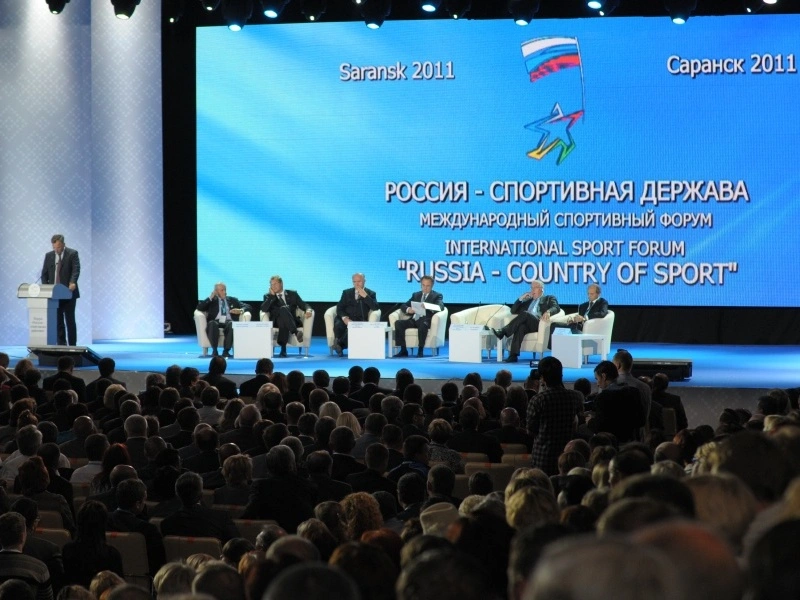

Project case
CKGLED's product quality management is strictly adhering to the ISO9001: 2008 certifications system and 7S management standards. Thanks to those efforts, our products have passed certificates of CE, RoHS, CCC, FCC, ETL etc.With an outstanding business performance and good social reputation, CKGLED's led displays have been sold all over the world both in and out of China to America, Germany, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Brazil, Spain, Thailand, Dubai, India etc.more than 50different countries.
