Description of LSC550FN11 large curved screen tv led screen panels:
LSC550FN11 is a 55" diagonal a-Si TFT-LCD display panel product, without backlight, without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .
Brand | QIANGFENG | Model | LSC550FN11 |
Diagonal Size | 55 inch | Type | a-Si TFT-LCD, CELL |
Pixel Format | 3840(3)×2160 [UHD] 80PPI | Configuration | RGBW Vertical Stripe |
Active Area | 1209.6(H)×680.4(V) mm | Outline Dim. | 1223.6×697.1×1.3mm |
Designed for | TV | Contrast Ratio | 5000:1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black,Transmissive |
Transmittance | 5.5% (Typ.)(with Polarizer) | D-IC Detail | COF Built-in 4 source chips |
Interface Type | V-by-One 8 lane , 51 pins Connector | Power Supply | 12.7V (Typ.) |

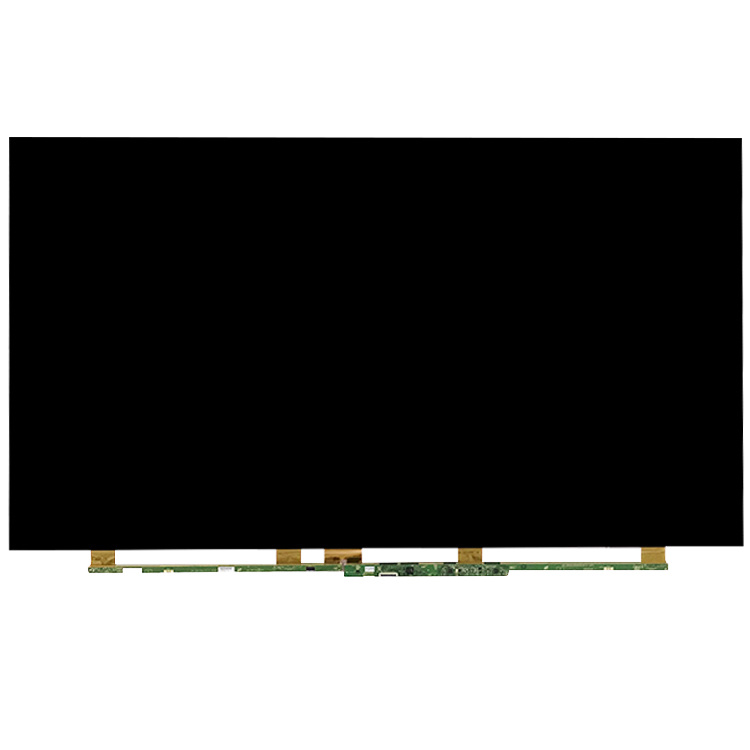

Pictures of LSC550FN11 large curved screen tv led screen panels:
LSC550FN11 large curved screen tv led screen panels
LSC550FN11 large curved screen tv led screen panels
LSC550FN11 large curved screen tv led screen panels
LSC550FN11 large curved screen tv led screen panels
LSC550FN11 large curved screen tv led screen panels
