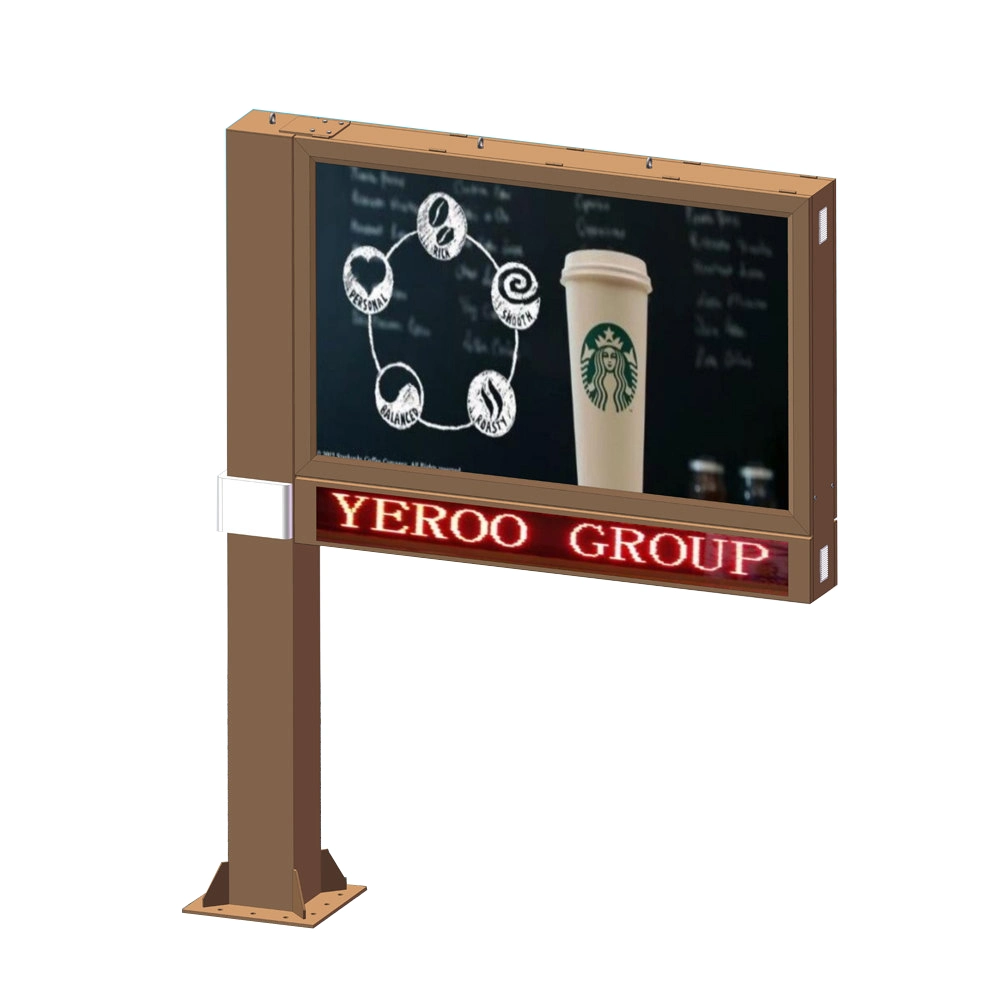

Outdoor Billboard Advertising Display P10 Full Color LED Screen
Outdoor Billboard Advertising Display P10 Full Color LED Screen
P10 Outdoor Full-color LED Display
1. LEDs Data with best white balance result,color brightness rate should be R:G:B=3: 5.9: 1.1 ,
we usually design them into rough rate 3:6:1 basing upon chips specification;
ChipsBrandChips SizeWave Length
Brightness ≥7500 nits
Viewing Angle 120°(H) / 60°(V)
2. Module DataPitch 10mm
Resolution 16 x 16 dots
Size 160mm x 160mm
Pixel Density 10000 dots/m² (real pixels)
Driving Mode 1/4 scan
3. Cabinet DataRsolution ** (H) x**(V)
Size **mm x **mm
Depth 150 mm
Material Steel
Maintenance Fixed Back-access
Weight approx.45kg per cabinet
4. Screen DataDriving IC MBI 5020/5024/16126/2026
PCB Board KB A++
Power Supply Chenglian with CE&Rohs certificates AC110V/AC220V 50-60Hz
Max Power Consumption≤780W/
Average Consumption≤390W/
Protection LevelIP65
Refresh Rate1000HZ
Best View Distance10-200 m
Surface Flatness GAP< 0.5 mm
Screen CertificatesCE &Rohs
Screen Controllers Linsn,Nova,Dbstar,Zdec, popular asynchronous controllers
Frame Update Frequncy50- 60Hz
Gray Scale14 bits input
Display Color10 trillion
Brightness Adjustment256 Levels with RGB individual adjustment
Control ModeSynchronous display with control PC by DVI / Asynchronous
Gamma Correction16 bits
Support InputComposite Video,S-Video,DVI,CATV,Popular Formats of Pics
Control DistanceEthernet Cable 100m,Single-model fiber 5km
Support VGA Mode800 x 600,  1024 x 768,  1280 x 1024,  1600 x 1200,
Brightness Correction Dot by Dot, module by module, cabinet by cabinet
Operating Temp - 35°~ +60° Celsius degree
Storaging Temp - 35°~ +80° Celsius degree
Operating Humidity 10 - 90 % RH
Operating Life 100000 Hours
Continuous Working Time ≥48 hrs
MTBF 10000 Hours
Loss Control Pixel Rate 0.1‰

Outdoor Billboard Advertising Display P10 Full Color LED Screen

1. Are you factory?

Yes, we are factory.

We established in 2000, with 20 years experience. Warmly welcome you to visit our factory.

2. Does your structure strong enough?

Yes, our structure can reach wind resistance 120km/h ~ 150km/h.

3. Could your structure be customized?

Yes, we can make the structure according to your own design.

4. Is your structure easy to be assembled?

Yes, our structure is assembled by screws.

Normally, clients can assemble our structure by themselves according to our installation drawing.

5. Can you assist inspection from the third party?

Yes, we can assist them.

6. How about the lead time?

About 30 days normally.

7. How to ship the structure?

The structure must be shipped by sea, 40HQ container normally.

8. Do you accept sample order?

Yes, sample could be sent on request.
