Part 1: Product Mainly features

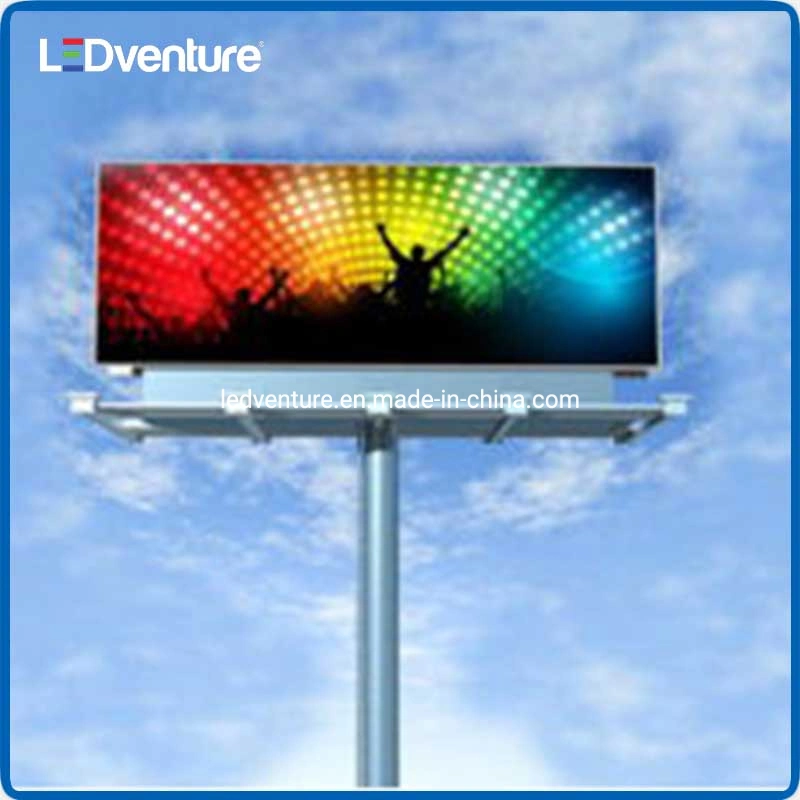

Outdoor China Led Advertising Panel Full Color Led Screen is very hot sale for outdoor media solution, it is new advertising media in 21rt century with high brightness and attractive image, waterproof, and high efficient in profit control, HD resolution such as P3 and P4 outdoor.
Pixel Pitch | 3mm to 5mm |
Brightness | >5500nits |
Cabinet size | 960x960mm(optional) |
Max. Power consumption | 720W/panel |
LED Brand | Epistar |
Driver IC | Constent current |
PSU | MW |
Refresh rate | > 1920HZ |
Part 2: Outdoor led display board detail images
Part3: Material Quality Level
All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.
Part 4: Technical Specification.
Item | P3 P4 P5 Indoor Outdoor LED Display screen Board for signature billboard Advertising |
Model Number | P3mm to 5mm |
Pixel Pitch | 3mm, 4mm, 5mm |
Pixel Density(pixels/M2) | 40000 to 111111 pixels |
Pixel Configuration | 1G1B1B |
LED Type | Epistar, SMD |
Module size(mm) | 192x192mm |
Module Resolution(pixels) | 64*64 pixels |
Min.Viewing Distance(m) | 3meters |
Brightness(nits) | >5500 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(W/M2) | 400 |
Scan Mode | Constant current |
Protection Level | IP65/IP43 |
Cabinet Size(mm) | 960x960mm |
Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC110-240V, 50HZ|60hz |
Refresh Rate | > 1920hz |
Color | 65535 Levels |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | 16 bits |
Effective Communication Distance(without relay) | <100 meters |
Lifespan | ≥100,000 hours |
Environment Temperature | Storage: -40°C~+85°C , Operation: -20 °C~+45°C |
Blind Spot Rate | <0.0001(led display industry standard is less than 0.0003) |
Control Mode | Video frequency synchronization |
Part 5: Installation methods, outdoor led display board available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.
Part6: Packing information by plywood cases, packing well and easy to load,
Part7: Certificates.
ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
Part8: About LEDventure.
Part9 : LED display screen installation cases.
Most of our led display exported to Europe with high standards, and small percent to USA and Asia,
