500x500mm 500x1000mm indoor p3.91 led screen rental events for stage
Brief introduction:
Always Bright Tech Ltd. has focused on export business since 2012, who specialized in
supplying the solutions of LED display screens, LED signs for the worldwide market.
our products includes:
• rental LED display screen
• indoor & outdoor advertising led display
• front service / front access led sign
• transparent led display
• led poster sign
• small pixel pitch LED display
• taxi top advertising sign
Specification of p3.91 led video display:
List | Item | Description |
1 | Pixel Pitch | 3.91mm |
2 | Module Size | 250*250mm |
3 | Pixel Density | 65536/s.q.m |
4 | Pixel composition | 1R1G1B |
5 | LED Type | SMD2121 |
6 | Module Resolution | 64*64 |
7 | Power Consumption of Module | 80W |
8 | The Optimum Viewing Distance | 4~50m |
9 | The Optimum Viewing Angle | 140°/120° |
10 | Maximum Power Consumption | 1300W/s.q.m |
11 | Standard Cabinet Size | 500*500mm |
12 | Cabinet Resolution | 128*128 |
13 | Cabinet Weight | 8Kg |
14 | Driving IC | MBI5124GP |
15 | Driving Method | 1/16 Scan Constant Current Driving |
16 | Frame Frequency | ≥60Hz/s |
17 | Refresh Rate | ≥1920Hz/s |
18 | White Balance Luminance(CD/s.q.m) | ≥1500cd/s.q.m |
19 | Operating Environment Temperature | -20ºC-60ºC Optional |
20 | Operating Voltage | 220V±10% or 110V±10% |
21 | Grey Scale | Display Colors≥65.7trillion color(Synchronized) |
22 | Brightness Adjustment | 1024 grades of each color(R.G.B)can be adjusted manually and 16 levels of each color can be adjusted automatically |
23 | Input Signal | RF,S-Video RF, S-Video, RGB, RGBHV, YUV etc. |
24 | Control System | PC+ DVI display card+ sent card+ receive card |
25 | Average No Failure Time | >5000 hours |
26 | Life-span | >100000 hours |
27 | Out-of Control rate | <0.0001 |
28 | Transmitting Distance | Internet cable:< 100m |

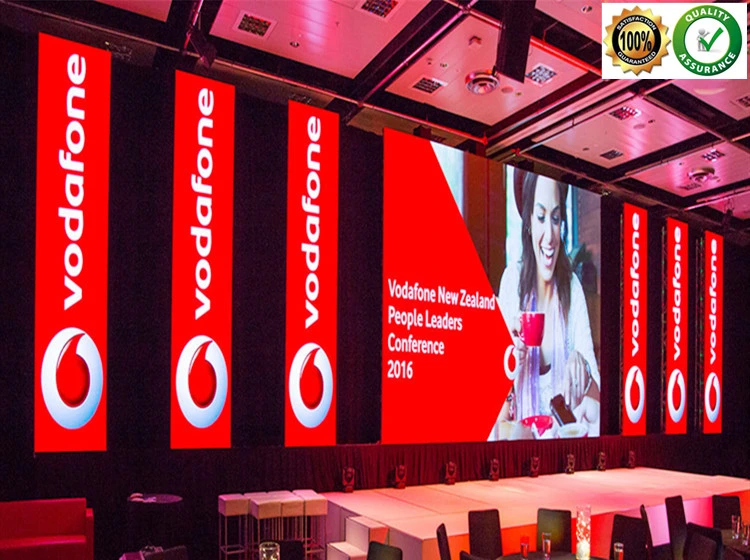

Photos:
After-Sales Service:
1) Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipments.
2) Installation and debugging
We could send professionals to conduct on site installation and debugging in strict.
3) Warranty
2 years warranty, lifetime maintenance equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.
4) Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges.
After maintenance period, only charge the material cost and labor cost.
FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's your payment term? How long is your delivery time ?
A: We accept T/T ,Western Union ,Money Gram, and Cash
At least 30%deposit in advance, and the balance should be paid before delivery.
Our average Production time is 7-18 working days after receiving the deposit.
If your order is rapidly urgent,we can arrange your order firstly.
3. Q: How long is the warranty period ?
A: Non-artificial damage, 2-3 years warranty
4. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
5. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
6. Q:How can I get technical support?
A:We offer you TEAMVIEWER help by Online Video Or can send professional engineer to your city to offer on-site guide .
7. Q:Is Available to print customer required logo on your LED product ?
A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production. Then,we will follow your requirement.
If you want to know more about our products, you can download product cataloge in our website.
