Full Color P2.5 P3 P4 P5 P6 P10 Outdoor Indoor LED Screen Rental LED Display
Overview:Pixel pitch: 5mm
Refresh rate: 3840Hz
Brightness: 6000 CD
Cabinet Size: 640*640mm
Cabinet Weight: 23kg
Pixel density:40000dots/m2
Cabinet Features:
Product Items | P5 | P6 | P8 | P10-normal brightness | P10-high brightness |
Pixel | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Configuration | SMD2525 | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
Pixel Pitch | 5mm | 6mm | 8mm | 10mm | 10mm |
Pixel Density | 40,000 | 27,777 | 15,625 | 10,000 | 10,000 |
Module Size(mm) | 160x160 | 192x192 | 256x128 | 320x160 | 320x160 |
Pixels/Module | 32x32 | 32x32 | 32x16 | 32x16 | 32x16 |
CabinetSize(mm) | 640x640 | 576x576 | 768x768 | 960x960 | 960x960 |
Pixels/Cabinet | 128x128 | 96x96 | 96x96 | 96x96 | 96x96 |
Cabinet Weight | 23KG | 25KG | 35KG | 37KG | 37KG |
Brightness | >6000cd/ | >6000cd/ | >5000cd/ | >5000cd/ | >7500cd/ |
Viewing Distance | >5m | >6m | >8m | >10m | >10m |
Power | Max: 900 | Max:900 | Max: 860 | Max: 680 | Max: 1000 |
Consumption(W/) | Ave: 300 | Ave: 300 | Ave: 260 | Ave: 220 | Ave: 350 |
Driver Mode | 1/8 scan | 1/8 scan | 1/4 scan | 1/4 scan | 1/2 scan |
Viewing Angle | H: 140°; V: 140° | ||||
Cabinet Material | Cold Rolled Steel or aluminium | ||||
Refresh Rate | 300-3000HZ adjustable | ||||
LED Life | 100,000 hours | ||||
Supply Voltage | AC220V/50HZ; AC110V/60HZ | ||||
Operating Temperature | -20ºC ~ +50ºC | ||||
Operating Humidity | 10% - 90% | ||||
Gray Scale | Red, Green and Blue each 16K | ||||
Display Color | 4096 Billion | ||||
IP Rating | Front IP65 | ||||
Display Capability | Text, Graph and Video |
Product Features: :
1. Light weight and super thin, less than 80mm thickness and only 23kgs per panel .it is portable and easy to move
2. Rental design cabinet, can be fixed or hung,and easy to install and dismantle with fast lock and aviation plugs,and with many different outlooking for choosing
3. High refresh rate up to 3840Hz,and high contrast ratio of 5000:1,real and rich colors and perfect vision effect
4. Packed with flight case, convenient to be collected and transportation,better for rental use
certification :

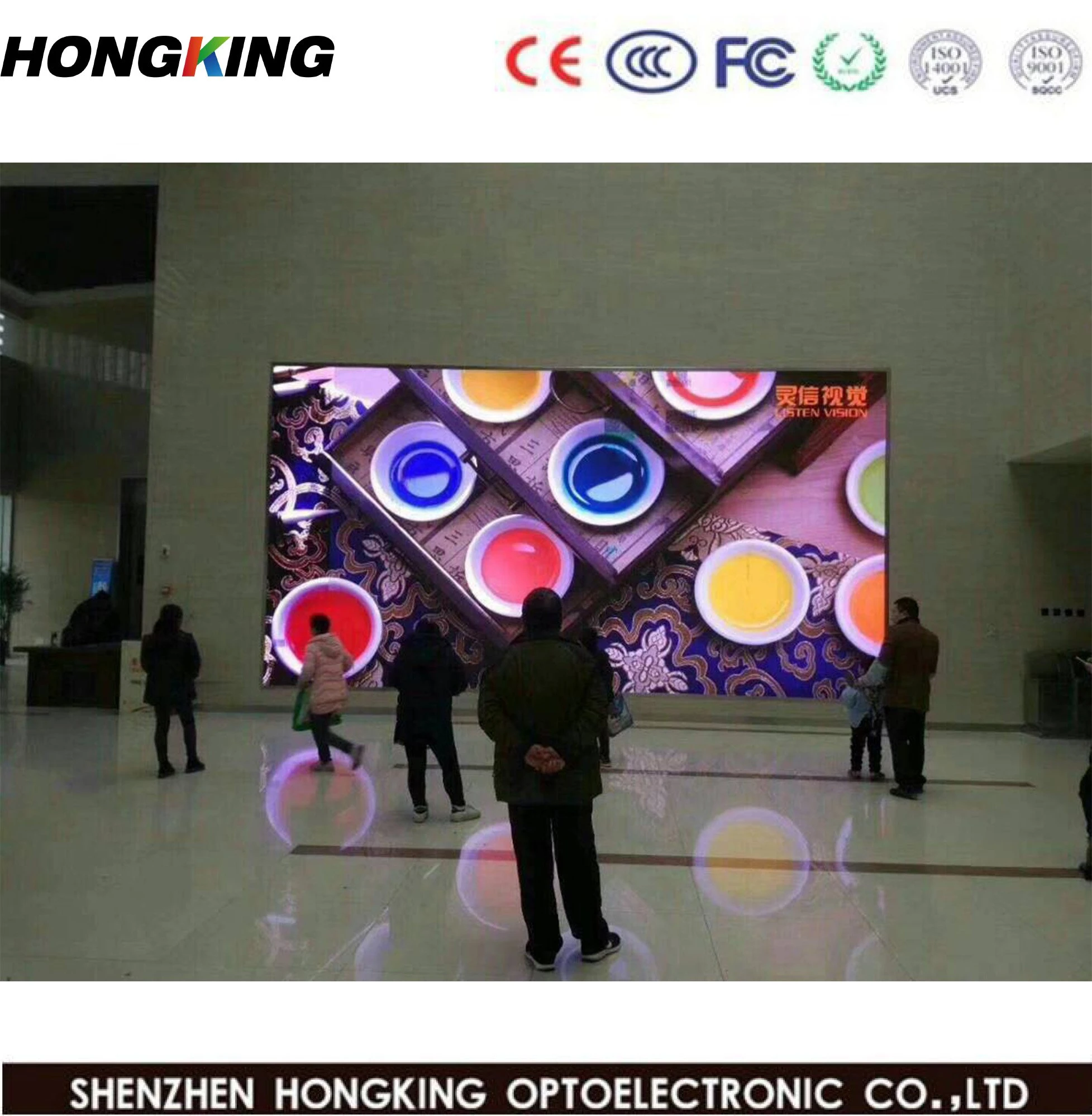

Product Application Cases:
company workshop :
package:
Payment term: T/T , usually 30~50% down payment before production,balance to be paid before delivery
Delivery time:Production lead time less 20 sqm is about 8-12 working days, more than 50 sqm. is about 15 working days
Free sample or not: Sample is available,but need to pay the material cost and freight cost
Shipping port: Shenzhen, Mainland China
MOQ: 2 sqm for led screen,and10pcs for led module
Guarantee:Two years quality guarantee,after two years,we will ask for material cost only,customer pay freight cost
Package and fast shipping
Anti-shaking wooden case
Carton box
Flight case
The transportation can be support by air ,by sea ,or by express as request
hongking always provide high quality products to our customers,and good after-sale service,obtained a good reputation,we produce our products based on international standards FCC,CE,RoHs,and with a strict quality control system,and confirm 2 to 3 years warranty,during this period,we will repair the default parts with free of charges,after the period,and during the lifetime,we only ask for material costs.
Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
