PRODUCT FEATURES:
. Durable fresh color and high brightness by adopting high quality leds.
. Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.
. Great uniformity , contract ratio and screen flatness.
. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
. IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.
PRODUCT SPECIFICATIONS:
Module specifications:
Cabinet specifications:
Screen parameters:

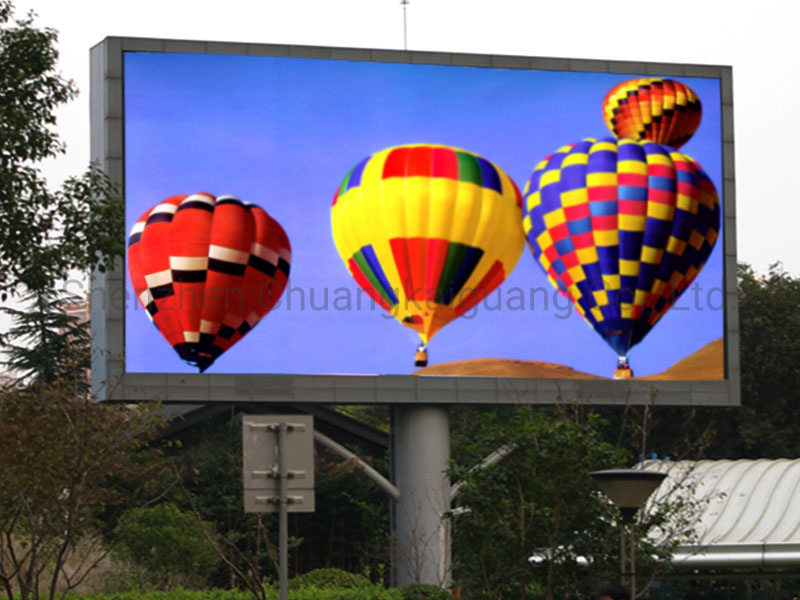

PRODUCT PHOTOS:
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/e2d8732b20d12b04d04f5ed8dc9f04df.jpg)
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/1ae96ec9deafb395c19f507b46b4cc44.jpg)
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/bebcd342136d85de9dee8c58d0cb9884.jpg)
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/6f0b92d666d2260ae881e249516e82a3.jpg)
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/e33914e7a3daf5a28ebcb4a1a94900cd.jpg)
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/b1aae5c601fd51d07ed9448aea7c6181.jpg)
CERTIFICATES:
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/2fc695ef4cf04da92079a247c77f545c.jpg)
WORKSHOP:
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/3a026e96473eec2d509c0e9c31fe23b5.jpg)
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/b3947087de06a7ad8734dc04990cc242.jpg)
PACKAGE:
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/d52b5cff5f079a1099fadc4969e0ac62.jpg)
COMPANY CULTURE:
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/c9ed3276ee6ec4ac7e4211b142441f5c.jpg)
![Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen](https://img2.grofrom.com/all-led/f05b2fc443c3d4c2f7b6cdea9b3b2733.jpg)
. Durable fresh color and high brightness by adopting high quality leds.
. Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.
. Great uniformity , contract ratio and screen flatness.
. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
. IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.
PRODUCT SPECIFICATIONS:
Module specifications:
Pixel pitch | 10mm |
Module size | 160mm*160mm |
Module pixel | 16dots*16dots |
Driving method | 1/4 constant driving |
Pixel configuration | DIP 1R1G1B |
Pixel density | 10000 dots/sqm |
Module resolution | 256dots |
Cabinet specifications:
Cabinet size | 960mm*960mm*80mm |
Cabinet resolution | 96dots*96dots |
Cabinet weight | 50kg |
Module Qty | 36pcs |
Cabinet pixel | 9216dots |
power consumption(w/sqm) | AVE.220 / MAX.600 |
Screen parameters:
No. | Parameter | Specification |
1 | Pixel Pitch | 10mm |
2 | Pixel Density | 10000dotssqm |
3 | LED Type | SMD3535 |
4 | Viewing Angle | (H)140°,(V)140° |
5 | Brightness | ≥5500cd/sqm |
6 | Drive Method | 1/4 scanning |
7 | Driving IC | MBI5124 |
8 | Color Depth | 4096 |
9 | Refresh Rate | ≥1920 Hz |
10 | Frame Rate | ≥60Hz |
11 | Cabinet Type and Material | Steel Iron |
12 | Cabinet Weight | ≤50kg/sqm |
13 | Voltage | AC 220/110V±10%,60Hz |
14 | Avg. Power Consumption | 220W/sqm |
15 | Max. Power Consumption | 600W/sqm |
16 | Protection Grade | Front IP65,Rear IP54 |
17 | Operating Temp/Humidity | -30ºC~60ºC, 10~95%RH |
