P10/10mm High Definition Glass LED Screen for Advertising LED Display
PRODUCT DESCRIPTION

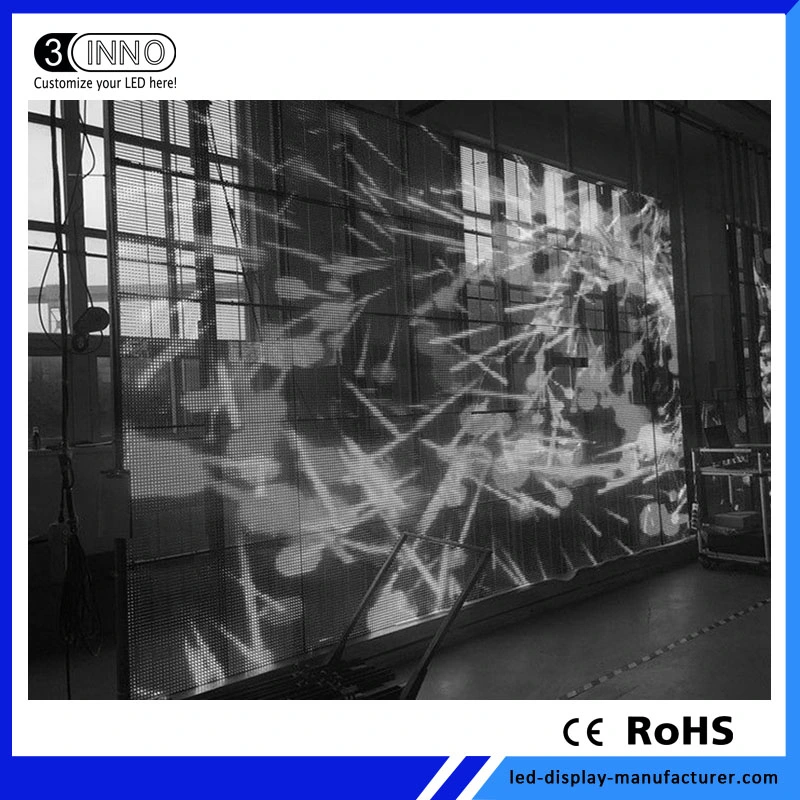

1. ApplicationTransparent LED Screen is aimed at fix installation in shopping mall, airport, hotel, car showroom, and etc.
2. Easy and quick installationThe screen can be hung and mounted on the window
Power supplies build into the frame , easier and faster for installation
and won't block lighting like printed posters but also can realize central control.
Thanks to great improvements in brand image and publicity, transparent digital poster
is the most powerful and creative advertising carrier.
SPECIFICATION
PRODUCT PROCESS
CERTIFICATE
PRODUCT DESCRIPTION
1. Application
2. Easy and quick installation
Power supplies build into the frame , easier and faster for installation
3. For windows advertising all around the world

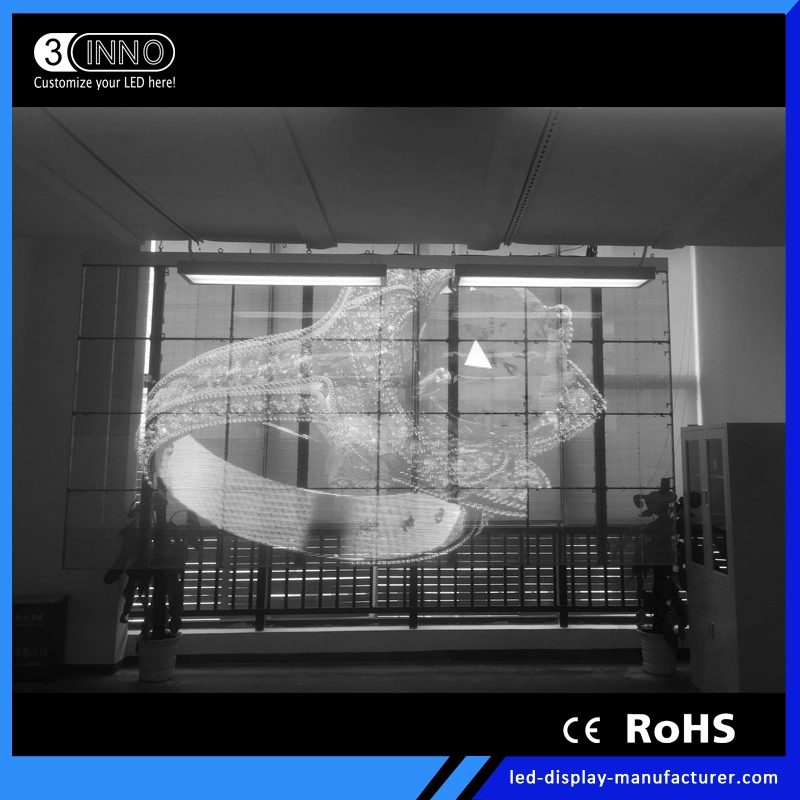

Transparent digital poster is the best advertising solution for any shop windows. It can not only update contents easilyand won't block lighting like printed posters but also can realize central control.
Thanks to great improvements in brand image and publicity, transparent digital poster
is the most powerful and creative advertising carrier.
| OPTICAL | Pixel Pitch | mm | 10*10 |
| Brightness (Adjustment) | cd/m² | 5500-6000 | |
| LED Encapsulation | - | SMD1921 | |
| Module Resolution(W*H) | pixels | 96 * 48/ 96* 80 | |
| Pixel Density | dots/sqm | 10,000 | |
| Viewing Angle(H/V) | degree | H/V160 | |
| Transparent Rate | - | > 80% | |
| Grey Scale | - | 16bit | |
| ELECTRICAL | Frame Frequency | Hz/s | 50/60 |
| Refresh Rate | Hz | 1920 | |
| Max Power Consumption | W/m² | 868 | |
| Ave Power Consumption | W/m² | 280 | |
| Working Voltage | AC | AC 100~240V | |
| Drive Voltage | DC | 5V | |
| Working Temperature | ºC | -10~40 | |
| Humidity | - | 10%-90% | |
| Module Size | mm | 960 * 480 /960 * 800 | |
| Net Weight | kg/pcs | 12 | |
| Weight Per Tile | lbs | 26.48 | |
| IP Rating | - | IP20 | |
| Lifetime | hours | 50,000 | |
| Application | - | Indoor |
