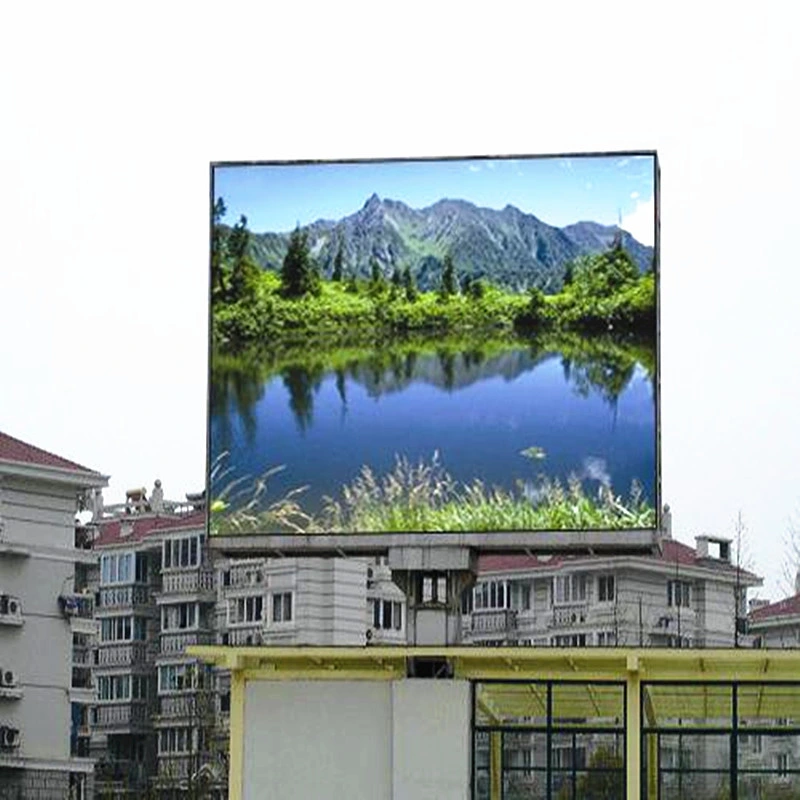

P10 Outdoor Advertising LED Display
Feature and Advantage
1. Waterproof and dustproof: IP65 front, IP65back
2. Best viewing distance: 10-100m
3. White balance brightness: More than 8000CD/sqm
4. Horizontal viewing angle: 120degree
5. Working temperatue: -20degree-+80degree
6. MTBF: More than 10, 000hours
7. Life span: More than 100, 000hours
8. Contrast ratio: 4000: 1
9. Average power consumption: 600W
Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
6. Delivery time: 3-12working days
| Description | Technical parameter | |
| Unit module | Module size | 160*160mm |
| Pixel pitch | 10mm | |
| Pixel density | 10, 000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Led specification | Φ 3ellipse | |
| Pixel resolution | W: 16dots*H: 16dots | |
| Cabinet | Dimension | 960mm*960mm*150mm |
| Quantities of module | 36pcs | |
| Power supply | 6pcs | |
| Thermal discharge | Fan*2pcs | |
| Total weight | 50kg | |
| Best viewing distance | 10-100m | |
| Temperature | Storage: -35degree~+80degree | |
| Working: -35degree~+85degree | ||
| Thickness | 15cm can adjustable | |
| Remarks: cabinet size can changed, upon project need. | ||
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 300-400W | |
| Max. Power consumption | ≤ 1000W/sqm | |
| Current | ≤ 20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | 1/4scanning |
| Drive type | Constant Current driver IC | |
| Refresh frequency | ≥ 800Hz | |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
| Brightness of white balance | More than 8000cd/sqm | |
| Brightness adjustment | 256 levels of each color(R/G/B)by software | |
| Operating ambient humidity | 10%--95% | |
| Video signal | PAL/NTSC | |
| Control system | DVI display card+full color controller card | |
| MTBF | ≥ 10, 000hours | |
| Life span | ≥ 100, 000hours | |
| Flatness | Tolerance of interpixel ≤ 0.3mm | |
| Tolerance of modules clearance≤ 0.6mm | ||
| Power switch | Automatic switch | |
| Display mode | 960x960 | |
| Software | LED media player | |
