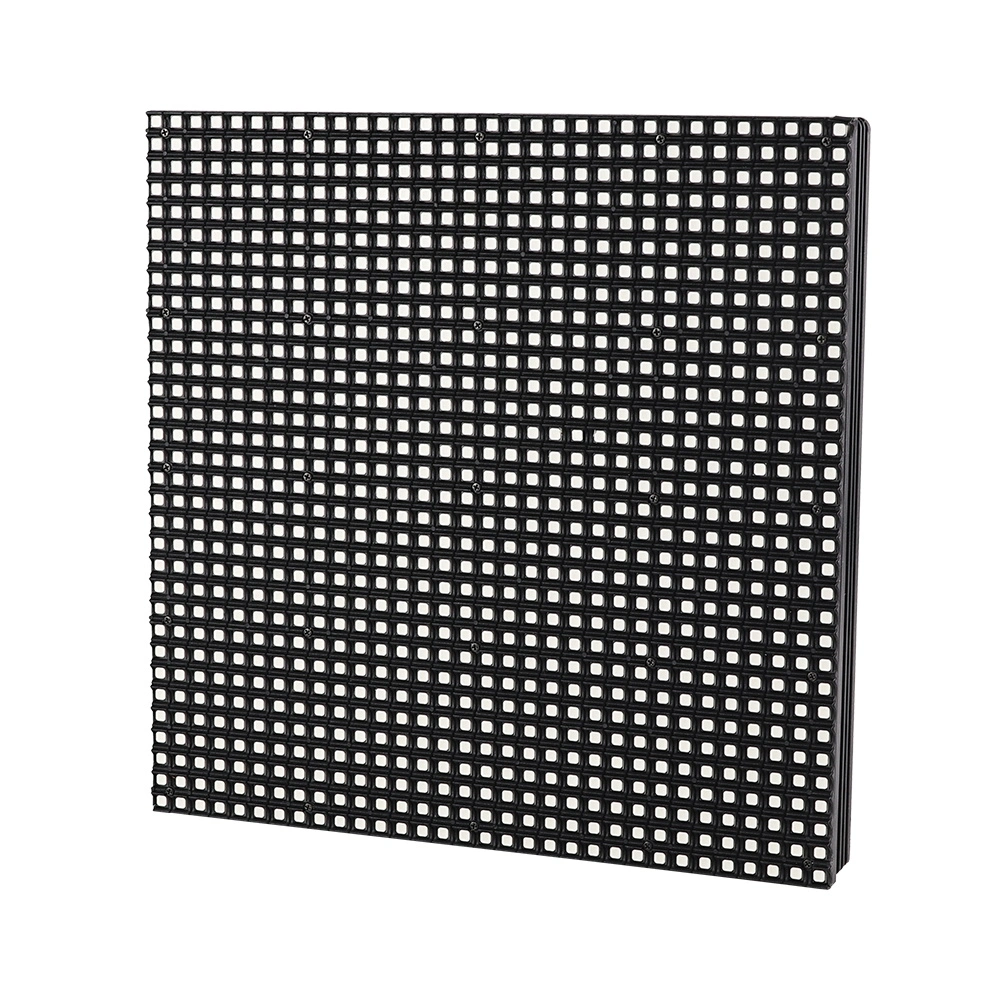

P6-8s mbi5124IC Rental Outdoor Full Color large LED Screen
1. UL, CE&RoHS&SGS
2. Easy operation, installation
3. High brightness and clear Video
4. Warranty 3 years
5. Good waterproof
6.LED display manufacture
7.Pixel Density: 277778
Product descripition:
Request for LED Display Quote
Please provide the following information so we can offer best service for you . After this we will provide quote to you as soon as possible.
1,Is your LED Display located Indoor, Semi-Outdoor or Outdoor, Mobile or Trailer (required)
()Indoor ()Semi-Outdoor ()Outdoor ()Mobile ()Trailer
2,What is the Length of your LED Display requirement (required)
( )Metres
3,What is the Height of your LED display requirement? (required)
( )Metres
4,What is the Optimal distance viewing to the LED Display? (required)
( )Metres
5,What will be displayed on the LED display? (required)
()Text ()Pictures ()Videos ()TV/Camera
6,I will usually program the LED display with the following frequency:
()Daily/Weekly & Disconnect ()Stream Content Continually Online
7,I would like to connect to the LED display using: (required)
()Computer Connection control
()WiFi Connection control
()3G Connection control
Please upload any images that may assist with an understanding of your led display requirement:
Upload Images()
Yours Details
Full Name (required)
Email Address (required)
Contact No (required)
---------------------------------------------------------------------
Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen
Application
HONGKING LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.
Tom Xie
OEM ODM Service:
Pixels Pitch: P1.6 P1.9 P2 P2.5 P3 P3.91 P4 P4.81 P5 P6 P6.25 P6.66 P7.62 P8 P8.94 P9.64 P10 P12 P13.33 P16 P18.75 P20 P25 P31.25 P37.5mm etc
LED Screen Size: 1x1mts / 2x2mst / 3x2mts / 3x3mets / 4x3mts / 4x4mts / 5x4mts / 6x4mts / 7x5mts / 8x5mts / 10x6mts etc
LED Cabinet Size: 480mmx480mm / 500mmx500mm / 576mmx576mm / 640mmx640mm / 800mmx800mm / 960mmx960mm / 1024mmx1024mm etc
PACKING SHIPPING
Certificate:
1. UL, CE&RoHS&SGS
2. Easy operation, installation
3. High brightness and clear Video
4. Warranty 3 years
5. Good waterproof
6.LED display manufacture
7.Pixel Density: 277778
Product descripition:
| Technical Specifications | |||||
| NO | Product name | outdoor P6 led display | |||
| 1 | Pixel Pitch(mm) | 6mm | |||
| 2 | Pixel configuration | 1R1G1B/ | |||
| 3 | Pixel density | 27778dots/m2 | |||
| 4 | Brightness | 6500cd/m2 | |||
| 5 | Module size(W*H) | 192*192mm | |||
| 6 | Module Resolution (W*H) | 32 dots x 32dots | |||
| 7 | Module weight | 450g | |||
| 8 | Cabinet size (W*H) | 576mmX576mm | |||
| 9 | Drive IC | MBI5124 | |||
| 10 | Drive mode | 1/8 scan | |||
| 11 | Viewing Angle(V/H) | 140ºC | |||
| 12 | Grey Scale | 65536 degree | |||
| 13 | Life time | >100,000 Hours (50%) | |||
| 14 | MTBF | >50,000 Hours | |||
| 15 | Operating Voltage | AC110V/220V±10% | |||
| 17 | Screen Power Consumption | Max: 680w/m2; Average:220w/m2 | |||
| 18 | Input Power Frequency | 50/60Hz | |||
| 19 | Operating temperature | -30--60ºC | |||
| 20 | Humidity | 10%-95% | |||
| 21 | Refresh Rate | ≥1200HZ | |||
| 22 | Control Method | Synchronized with computer monitor | |||
| 23 | Color Temperature | 6500K-9500K | |||
| 24 | LED control system | LINSN,Nova-star,Colorlight is selectable | |||
| 25 | Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km | |||
| 26 | Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI | |||
| 27 | Systems Operating Platform | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 | |||
Request for LED Display Quote
Please provide the following information so we can offer best service for you . After this we will provide quote to you as soon as possible.
1,Is your LED Display located Indoor, Semi-Outdoor or Outdoor, Mobile or Trailer (required)
()Indoor ()Semi-Outdoor ()Outdoor ()Mobile ()Trailer
2,What is the Length of your LED Display requirement (required)
( )Metres
3,What is the Height of your LED display requirement? (required)
( )Metres
4,What is the Optimal distance viewing to the LED Display? (required)
( )Metres
5,What will be displayed on the LED display? (required)
()Text ()Pictures ()Videos ()TV/Camera
6,I will usually program the LED display with the following frequency:
()Daily/Weekly & Disconnect ()Stream Content Continually Online
7,I would like to connect to the LED display using: (required)
()Computer Connection control
()WiFi Connection control
()3G Connection control
Please upload any images that may assist with an understanding of your led display requirement:
Upload Images()
Yours Details
Full Name (required)
Email Address (required)
Contact No (required)
---------------------------------------------------------------------
Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen
Application
HONGKING LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.
Tom Xie
OEM ODM Service:
Pixels Pitch: P1.6 P1.9 P2 P2.5 P3 P3.91 P4 P4.81 P5 P6 P6.25 P6.66 P7.62 P8 P8.94 P9.64 P10 P12 P13.33 P16 P18.75 P20 P25 P31.25 P37.5mm etc
LED Screen Size: 1x1mts / 2x2mst / 3x2mts / 3x3mets / 4x3mts / 4x4mts / 5x4mts / 6x4mts / 7x5mts / 8x5mts / 10x6mts etc
LED Cabinet Size: 480mmx480mm / 500mmx500mm / 576mmx576mm / 640mmx640mm / 800mmx800mm / 960mmx960mm / 1024mmx1024mm etc
